Polycom SoundPoint IP 450 User Manual

Using the Advanced Features of Your Phone
67

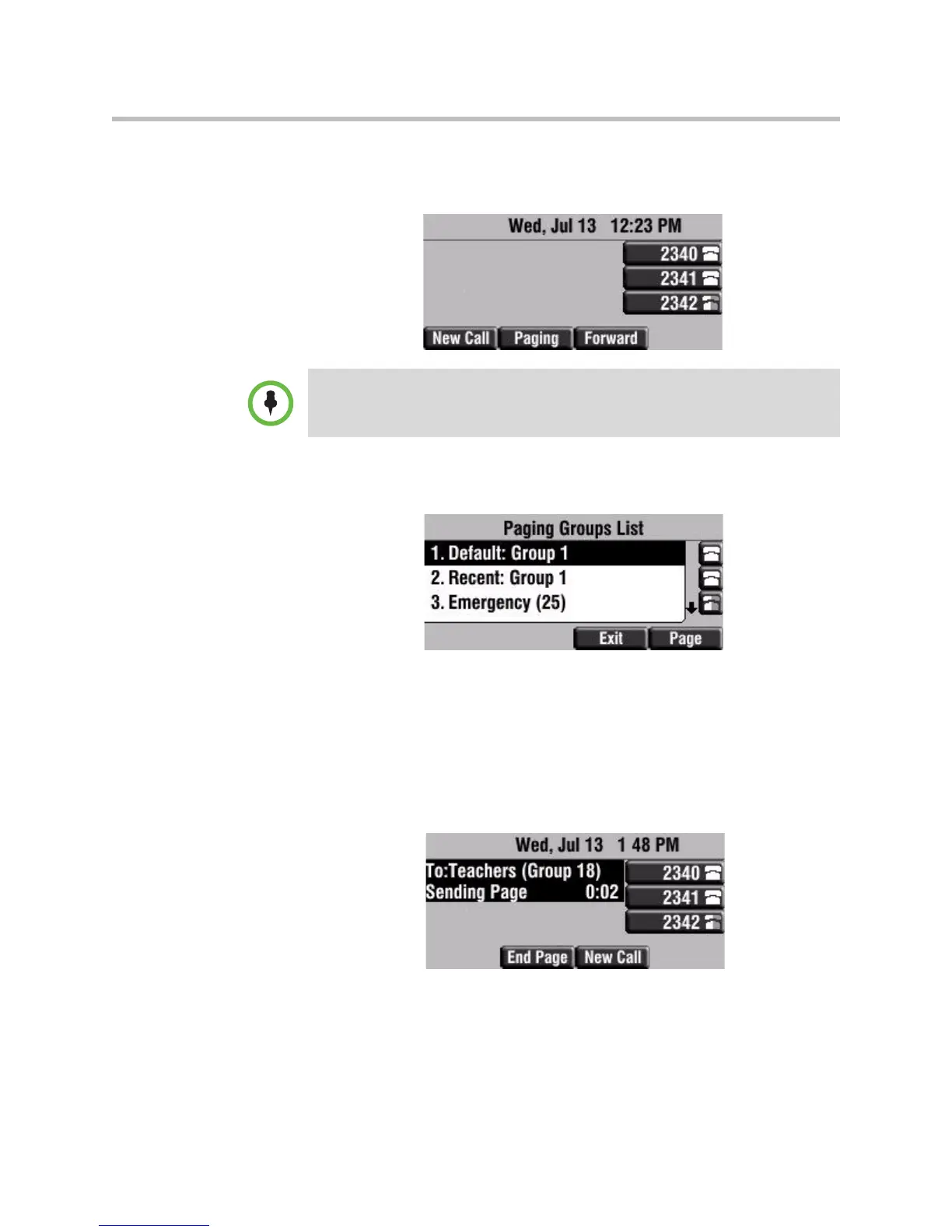

To send a page:
1 To send a page, press the Paging soft key.
2 From the Paging Groups List screen, select the paging group to send the
page to (as shown next).
The list displays the default paging group, the most recent group you
paged, and other paging group that you can page.
In the above example, the default paging group is Group 1, the recent
paging group is Group 1, and the Emergency channel is 25.
3 To start the page, press the Page soft key.
Just before the page starts, you’ll hear an alert tone, and then the page
starts (as shown next).
4 Start talking.
5 To end the page, press the End Page soft key.
Receiving Pages
To automatically send a page to the default paging group, press the Paging soft
key.

Polycom SoundPoint IP 450 Specifications

Display

display resolution	256 x 116 pixels
display type	backlit grayscale graphical LCD
display backlight	LED backlight with custom intensity control

Audio Features

frequency response	150Hz - 7kHz
codecs	G.722, G.711 μ/A, G.729A, iLBC
full-duplex speakerphone	Type 1 compliant with IEEE 1329

Power

power over ethernet	IEEE 802.3af Class 2
external AC adapter	24VDC/12W
power adapter	Universal, auto-sensing

Operating Environment

operating temperature	0 to 40°C (+32 to 104°F)
storage temperature	-40 to +70°C (-40 to +160°F)
relative humidity	5% to 95%, noncondensing

Size and Weight

dimensions	8.5 x 6 x 6.5 in x 2.5 in (21.5 x 15 x 16.5 x 6.5 cm)
box dimensions	12.5 x 13.25 x 3.5 in (31.75 x 33.5 x 9 cm)
unit weight	2.4 lbs (1.1 kg)
