Using the SoundPoint IP Backlit Expansion Module
4 - 7
7. Press the Save soft key to accept your changes.
8. Press to return to the idle screen.
For more information on assigning speed dial keys, refer to Assigning Speed
Dial Keys on page 2-21.
Using the Busy Lamp Field
The busy lamp field (BLF) feature allows you to monitor the hook status and
remote party information of other users through the BLF LED indicators and
display on the SoundPoint IP 650 phone with the attached Backlit Expansion
Module. For more information, contact your system administrator.

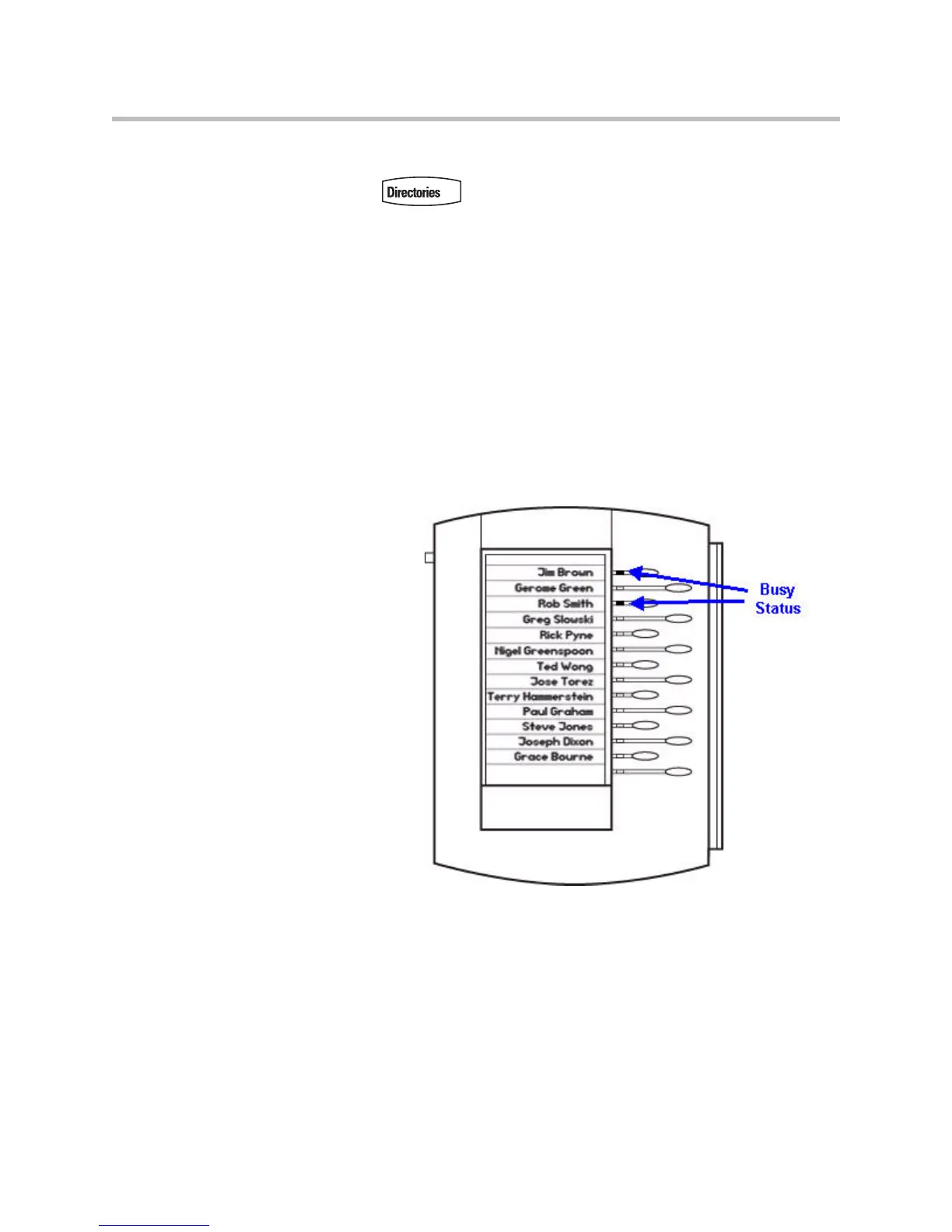

The following figure shows the busy status of other users (for example, Jim
Brown and Rob Smith are busy on the phone):
For more information, refer to “Quick Tip 37381: Enhanced BLF“ at
http://www.polycom.com/usa/en/support/voice/soundpoint_ip/VoIP_T
echnical_Bulletins_pub.html .

Table of Contents

Other manuals for Polycom SoundPoint IP 650

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Polycom SoundPoint IP 650 and is the answer not in the manual?

Polycom SoundPoint IP 650 Specifications

General IconGeneral
Full duplexYes
Camera includedNo
Frequency range150 - 7000 Hz
Base station keys26 + 4
Channels quantity2 channels
Dimensions (WxDxH)265 x 150 x 190 mm
Networking featuresDHCP/Static IP
Ethernet LAN (RJ-45) ports2
Supported network protocolsFTP, TFTP, HTTP, HTTPS
Supported data transfer rates10/100 Mbit/s
Product colorGray
Volume controlDigital
Voice codecsG.722
Display resolution320 x 160 pixels
Display number of colorsMonochrome
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 40 °C
Operating relative humidity (H-H)20 - 85 %
Power requirements24V DC / 500mA
SafetyUL 60950-1;CE Mark;CAN/CSA-C22.2 No. 60950-1-03;EN 60950-1;IEC 60950-1;AS/NZS 60950-1
Certification- FCC Part 15 (CFR 47) Class B - ICES-003 Class B - EN55022 Class B - CISPR22 Class B - AS/NZS CISPR 22 Class B - VCCI Class B - EN55024 - EN61000-3-2; EN61000-3-3 - ROHS
Weight and Dimensions IconWeight and Dimensions
Weight1260 g
Package weight2045 g
