WIRING FROM IPOWER TO VORTEX DEVICE
The inputs and outputs to the codec are unbalanced. We recommend keeping the cable
from the Vortex device as short as possible to avoid any common-mode signals that may
corrupt the audio.

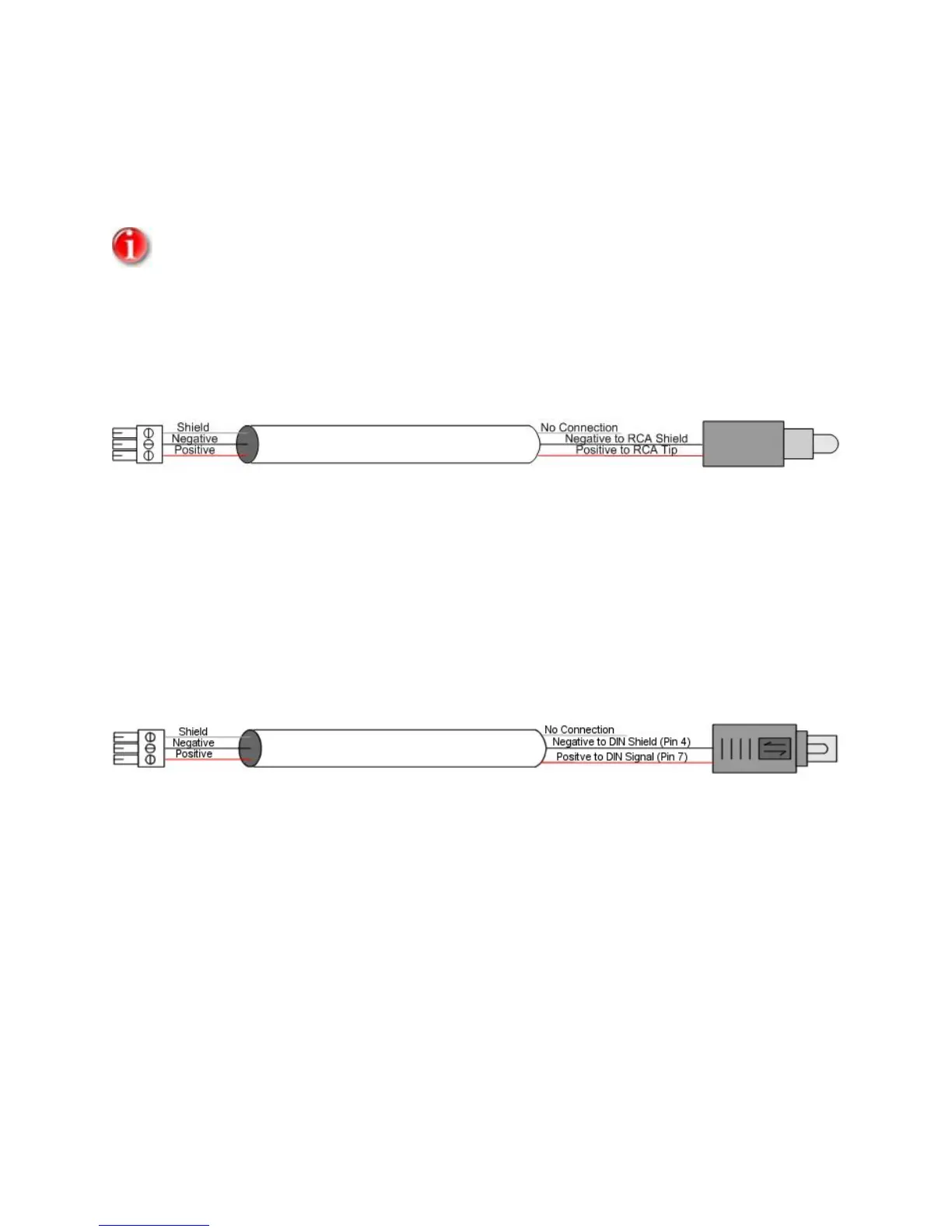

INPUT TO IPOWER FROM OUTPUT OF VORTEX DEVICE (USING CBL-LINEAUDIO)
If you are using CBL-LINEAUDIO, connect the Positive conductor of the Vortex device to the Tip of the RCA
connector and the Negative conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
INPUT TO IPOWER FROM OUTPUT OF VORTEX DEVICE (USING SELF-MADE CABLE)
Connect the Positive conductor of the Vortex device to Pin 7 of DIN connector and the Negative conductor
of the Vortex device to Pin 4 of the DIN connector.
The shield of the cable is not connected.
