3-2
3 First Steps
Available as an option:
•
PSV-A-430 acoustic gate unit with BNC cable*
•
PSV-A-515 digital video camera with standard lens (optionally with zoom
lens), IEEE-1394 cable (FireWire®) and tripod adapter angle
•
Only for Standard: PSV-A-HNeBF optical block filter for the scanning head
video camera
•
External scanner control (EXT)
•
PSV-A-526 protective window
•
PSV-A-T34* close-up tripod
•
PSV-A-MIR mirror set
Inspection
Please pay attention to the following steps when unpacking:
1. Check the packaging for signs of unsuitable handling during transport.
2. After unpacking, check all components for external damage (scratches,
loose screws, damaged components etc.).
3. In the case of a wrong delivery, damage or missing parts, immediately
inform your local Polytec representative, stating the serial numbers of the
instruments. The serial number can be found on the name plate. You will
find the name plate on the instruments as well as on the inside cover of
these operating instructions.
4. Carefully retain the original packaging in case you have to return the
instruments.
3.2 Control Elements, Displays and Connections
3.2.1 Front-End
Front view
The front view of the front-end is shown in the following figure.

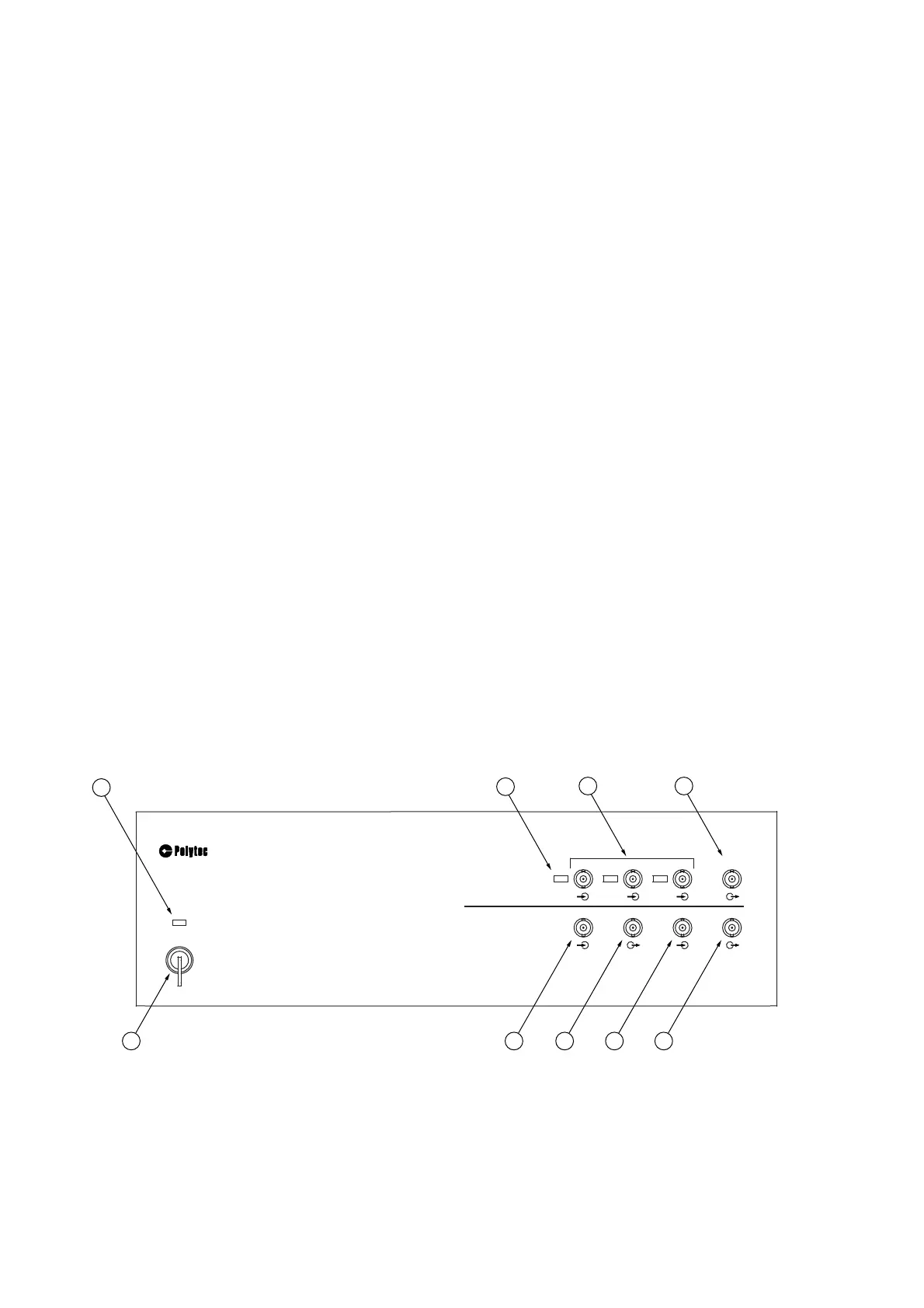

Figure 3.1: Front view of the front-end
IEPE
IEPE
ANALOG I/O
DIGITAL I/O
AUX IN
TRIG IN
AUX OUT
SYNC
SIGNAL
REF1
REF2
REF3
IEPE
PSV-500
VIBROMETER FRONT-END
O
I
POWER
3
2
4
8765
1
9
