3-15
3 First Steps
4. A suitable hexagonal quick release plate has been pre-assembled on the
scanning head. Use the quick release plate to position the scanning head
on the fluid head.
The safety lever clicks into place automatically.
3.3.3 System Cabinet
Unpacking
The system cabinet is supplied with all system components assembled and
cabled. The position of the individual components in the system cabinet is
shown in F
IGURE
3.12. In addition, the drawer has room for the optional tablet
PC for remote control of the measurement system via the PSV Commander
software. Unpack the system cabinet as follows:
1. Remove the lashing straps using a suitable tool, e.g. a pair of scissors.
2. Remove the ramp from the top of the packaging and place the ramp in
front of the pallet.
3. In one of the inner sides of the box there is a recess for accessories
separated from the other components by a smaller cardboard box. On this
side, undo the screw connections using suitable tools, such as a pair of
pliers.
4. Carefully remove the cardboard ring and take out the accessories.
5. Remove the cardboard box and all the shock-absorbing material.
6. Under the system cabinet there is a box with the documentation for the
measurement system. Remove the cardboard box and keep it for later
use.
7. Remove the square timber with leveling feet from below the system
cabinet. Screw the nut [2] onto the leveling feet with the spanner provided,
turning it counterclockwise upwards until it reaches the nut [1] (refer to
F
IGURE
3.11).
8. Screw the nut [1] clockwise downwards until the system cabinet stands on
the pallet and the square timber can be freely moved.

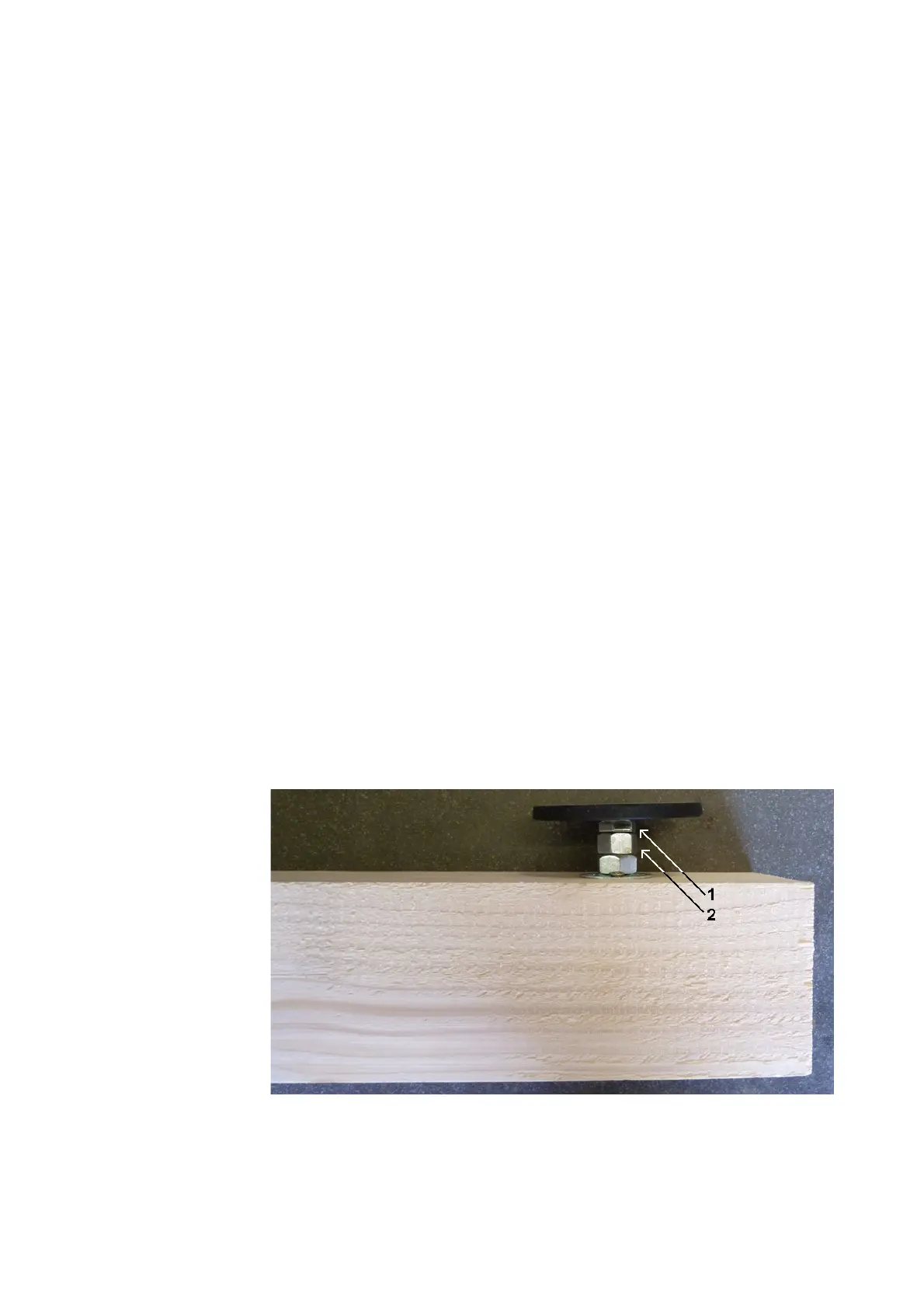

Figure 3.11: Square timber with leveling foot
9. Remove the square timber from below the system cabinet.
