7 Technical Specifications
Dimensions

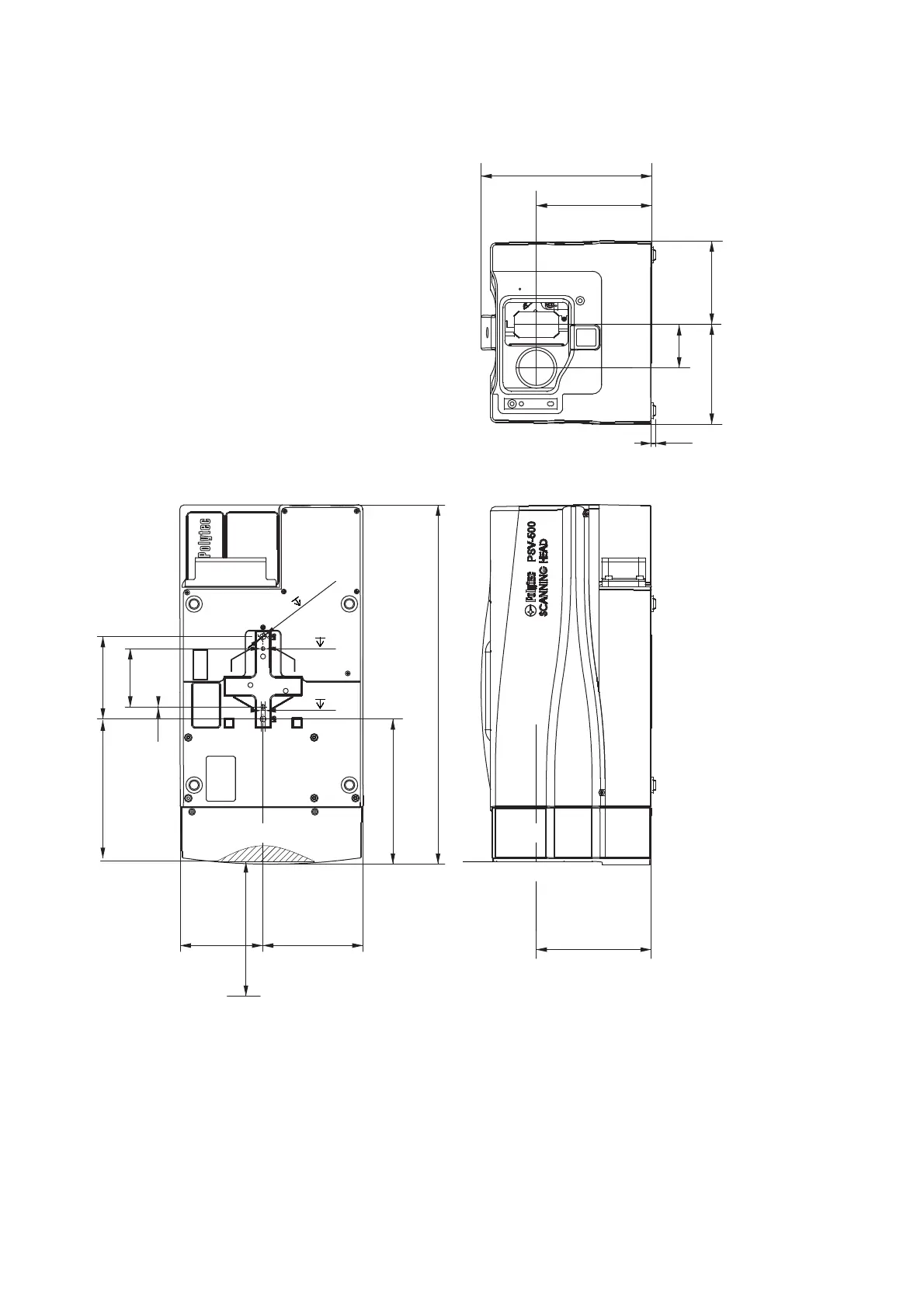

Figure 7.1: Dimensions of the scanning head (Dimensions not specified are given in mm.)
60
85
86
103
150
370
M6 8 (2x)
Beam
0.6
4.5
Stand-off
distance
120
86
45
103
120
177
Ø4
F8
6
6
Ø4
F8
85
144
