Polytec PSV-I-500 User Manual

A-3
A Optional Accessories
A.2.3 Control Elements of the Video Camera with Zoom Lens

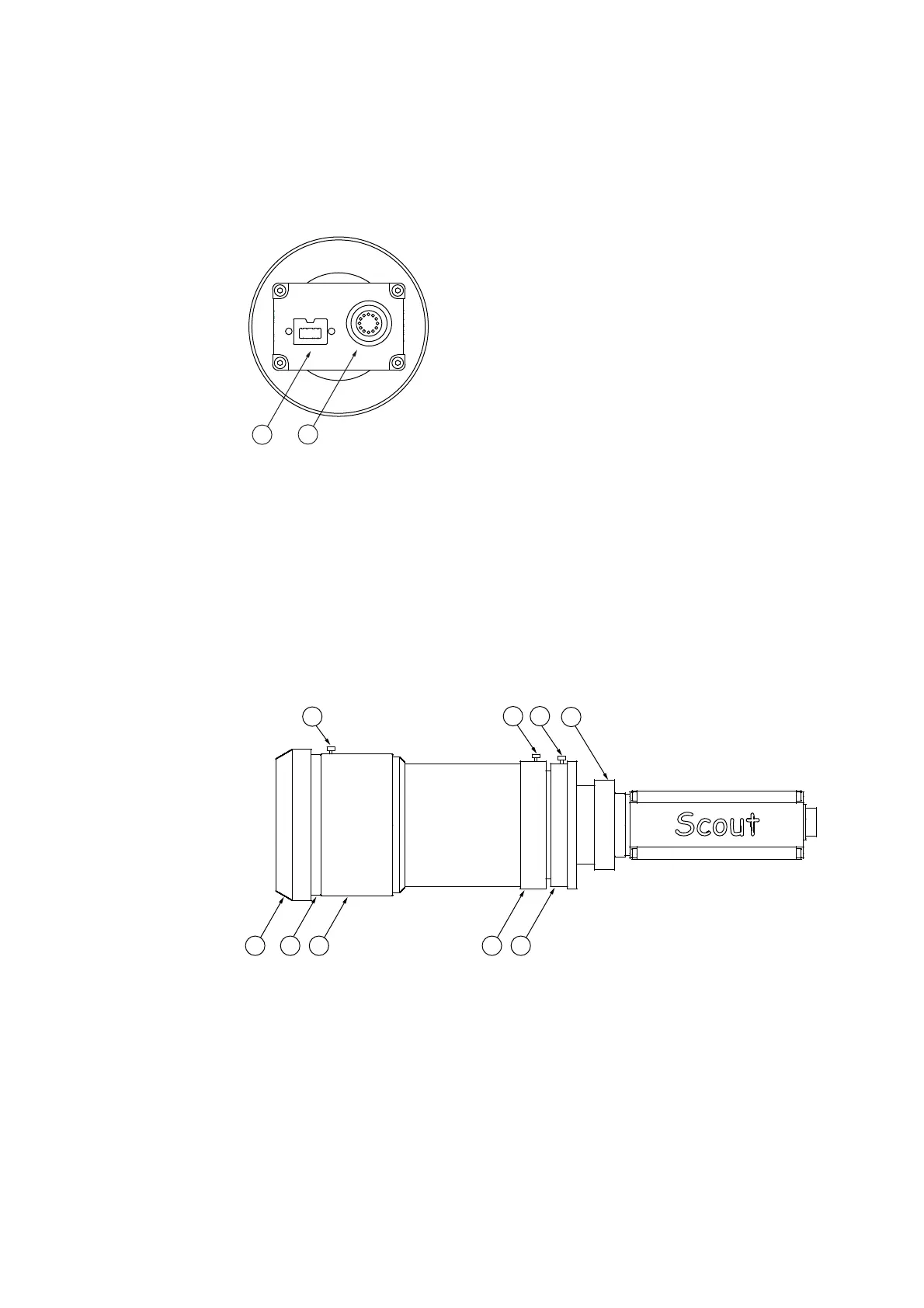

Back view The back view of the video camera with zoom lens is shown in the following
figure.
Figure A.3: Back view of the video camera
1 IEEE interface
Connection for the IEEE-1394 cable (FireWire®) to the PC to transmit the video
signal, for mains supply and to control of the video camera.
2 I/O port connection (12-pin circular jack)
Not used
Side view The side view of the video camera with zoom lens is shown in the following
figure.
Figure A.4: Side view of the video camera
1 Locking screws
Screws to lock the required settings for focus, zoom and aperture
2 Locking ring
Ring for setting the orientation of the zoom lens
3 Aperture ring
Ring for manual setting of the aperture
1
2
4
5
7
6
3
1
2
11
