Polytec PSV-I-500 User Manual

A-11
A Optional Accessories

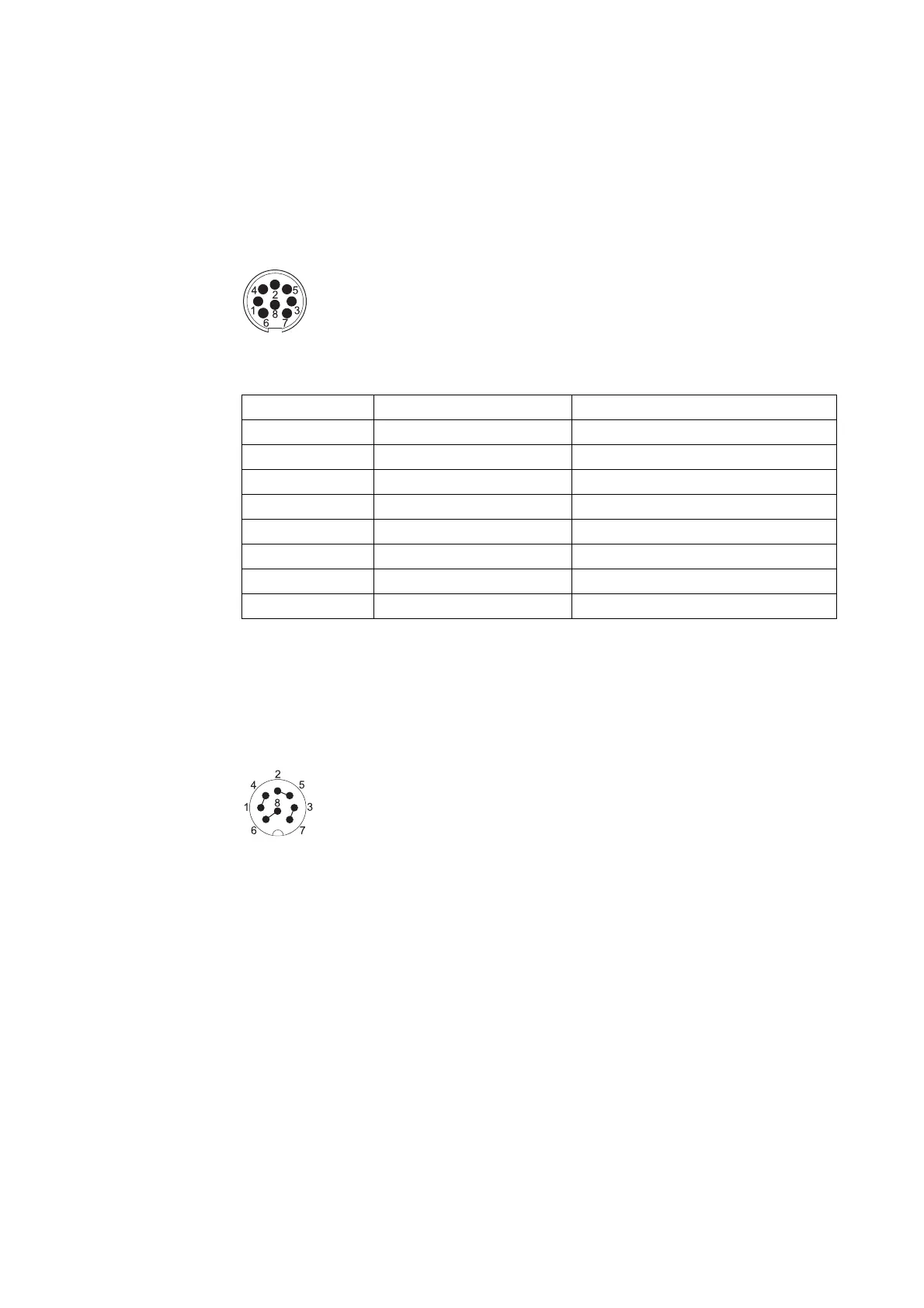

8-Pin DIN Circular Plug
Figure A.9: Pin configuration of the 8-pin DIN circular plug (view: solder side)
PSV-A-523 Bridging Plug
You can use the internal scanner control with the scanning head with the EXT
option. To do so, plug the PSV-A-523 bridging plug into the OPTION jack. The
bridging plug connects the DAC output signals to the control inputs of the
scanners. The wiring of the bridging plug is shown in the following figure.
Figure A.10: Wiring of the bridging plug
Socket type: 8-Pin DIN Circular Plug
Manufacturer: Amphenol-Tuchel
Series: C 091 D
Pin Signal Function
1 DAC GND Y Reference potential, DAC output Y
2 DAC GND X Reference potential, DAC output X
3 DAC OUT X DAC X output signal (±5V DC)
4 - COMMAND Y Differential control input –Y
5 - COMMAND X Differential control input –X
6 + COMMAND Y Differential control input+Y
7 + COMMAND X Differential control input + X
8 DAC OUT Y DAC Y output signal (±5VDC)
