9.7. Shaft seals
9.7.1. Single mechanical seal , type M1
8 97
A B C D E F

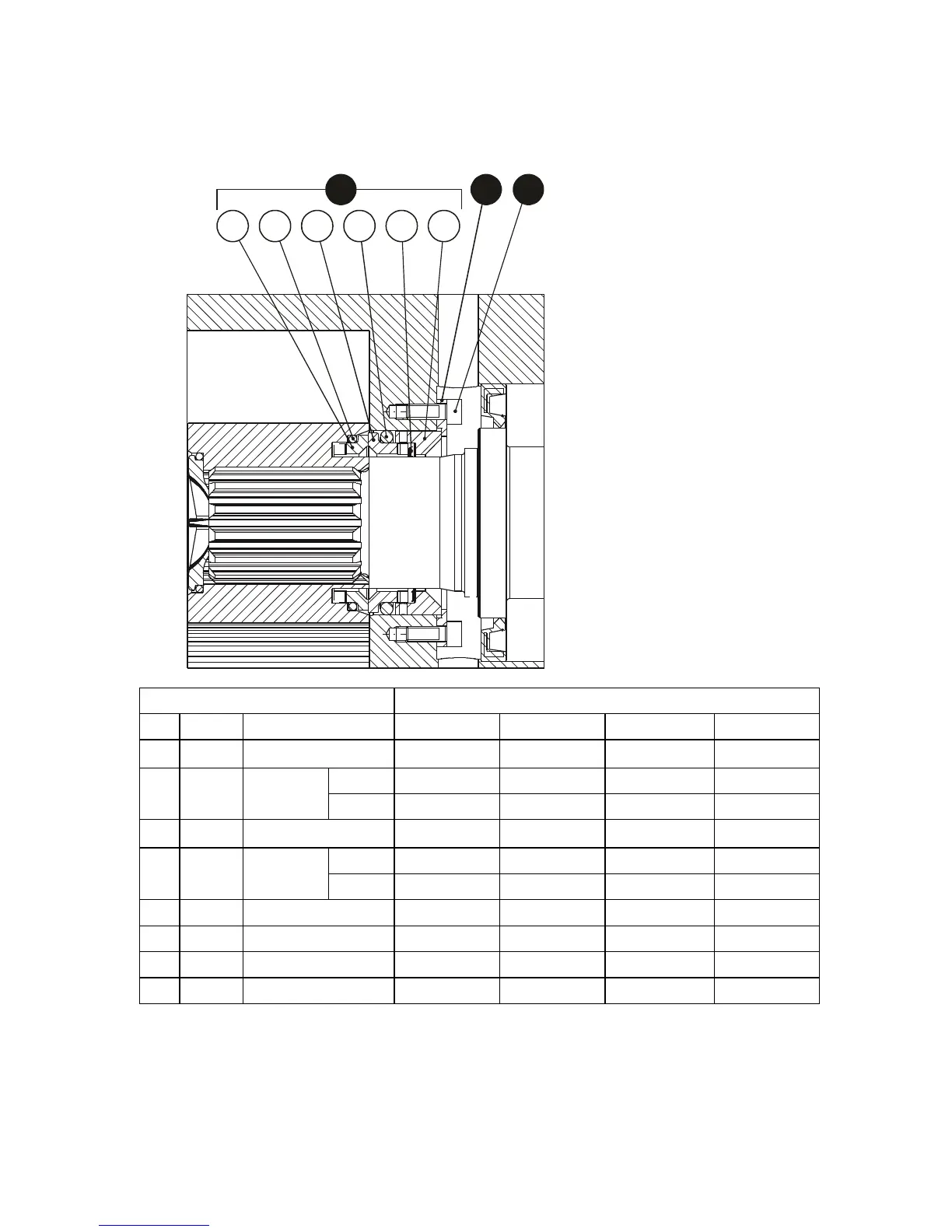

SINGLE MECHANICAL SEAL M1 (SiC/SiC)
Article numbers
Item
Quantity
Description
PLP 1/PLP15
PLP 2
PLP 3
PLP 4
7A
1
ROTARY SEAL RING
MEDIUM SIDE
700.150-001
700.250-001
700.350-001
700.450-001
7B
1
O-RING
EPDM
051.741-100005
051.741-100011
051.741-100021
051.741-100030
VITON
051.760-100005
051.760-100011
051.760-100021
051.760-100030
7C
1
STATIONARY SEAL RING
MEDIUM SIDE
700.150-003
700.250-003
700.350-003
700.450-003
7D
1
O-RING
EPDM
051.741-100004
051.741-100012
051.741-100020
051.741-100029
VITON
051.760-100004
051.760-100012
051.760-100020
051.760-100029
7E
1
WAVE SPRING
700.150-005
700.250-005
700.350-005
700.450-005
7F
1
SEAL SEAT
700.150-006
700.250-006
700.350-006
700.450-006
8
1
SEAL COVER
700.150-007
700.250-007
700.350-007
700.450-007
9
4/6 *)
ALLEN SCREW
051.000-04-012-5
051.000-05-012-5
051.000-06-016-5
051.000-08-020-5
*) PLP1, PLP15, PLP 2 and PLP 3: quantity 4, PLP 4: quantity 6
