Pomac Pumps PLP - Double Mechanical Seal, Type M6

User manual Pomac PLP Lobe pump
56 CE/PLP (1406) EN-12

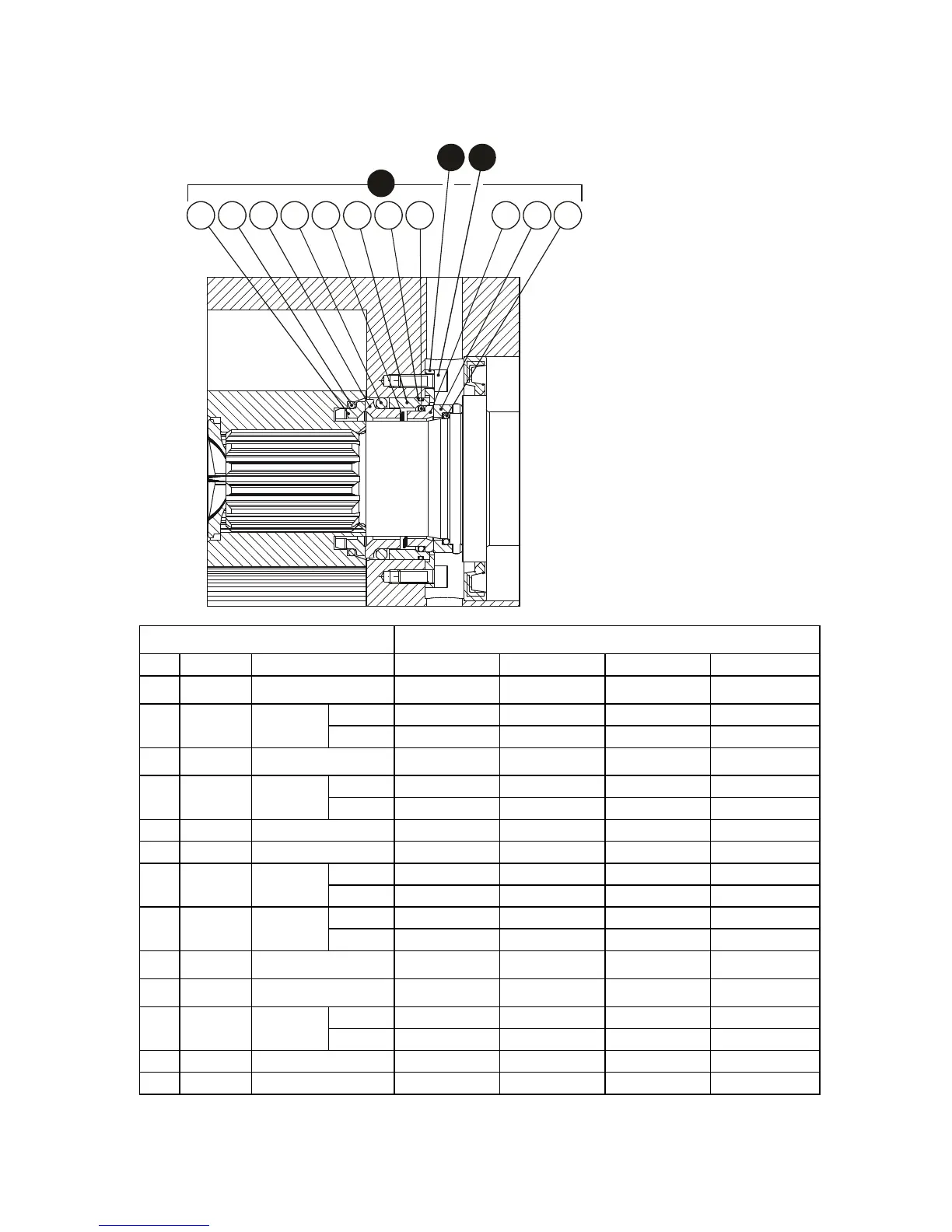

9.7.5. Double mechanical seal, type M6
A B C D E F G H I
J
K
8 9
7
DOUBLE MECHANICAL SEAL M6
(WC/WC – SiC/SiC)
Article numbers
Item
Quantity
Description
PLP 1/PLP15
PLP 2
PLP 3
PLP 4
7A
1
ROTARY SEAL RING
MEDIUM SIDE
700.158-001
700.258-001
700.358-001
700.458-001
7B
1
O-RING
EPDM
051.741-100005
051.741-100011
051.741-100021
051.741-100030
VITON
051.760-100005
051.760-100011
051.760-100021
051.760-100030
7C
1
STATIONARY SEAL
RING MEDIUM SIDE
700.158-002
700.258-002
700.358-002
700.458-002
7D
1
O-RING
EPDM
051.741-100004
051.741-100012
051.741-100020
051.741-100029
VITON
051.760-100004
051.760-100012
051.760-100020
051.760-1000029
7E
1
WAVE SPRING
700.150-005
700.250-005
700.350-005
700.450-005
7F
1
SEAL SEAT
700.151-006
700.251-006
700.351-006
700.451-006
7G
1
O-RING
EPDM
051.741-100061
051.741-100044
051.741-100022
051.741-100033
VITON
051.760-100061
051.760-100044
051.760-100022
051.760-100033
7H
1
O-RING
EPDM
051.741-100003
051.741-100010
051.741-100017
051.741-100028
VITON
051.760-100003
051.760-100010
051.760-100017
051.760-100028
7I
1
STATIONARY SEAL
RING ATM. SIDE
700.151-011
700.251-011
700.351-011
700.451-011
7J
1
ROTARY SEAL RING
ATM. SIDE
700.151-012
700.251-012
700.351-012
700.451-012
7K
1
O-RING
EPDM
051.741-100001
051.741-100008
051.741-100015
051.741-100024
VITON
051.760-100001
051.760-100008
051.760-100015
051.760-100024
8
1
SEAL COVER
700.150-007
700.250-007
700.350-007
700.450-007
9
4/6 *)
ALLEN SCREW
051.000-04-012-5
051.000-05-012-5
051.000-06-016-5
051.000-06-016-5
*) PLP 1, PLP15 and PLP 2: quantity 4, PLP 3 and PLP 4: quantity 6
