RECEPTION, HANDLING AND TRANSPORTATION

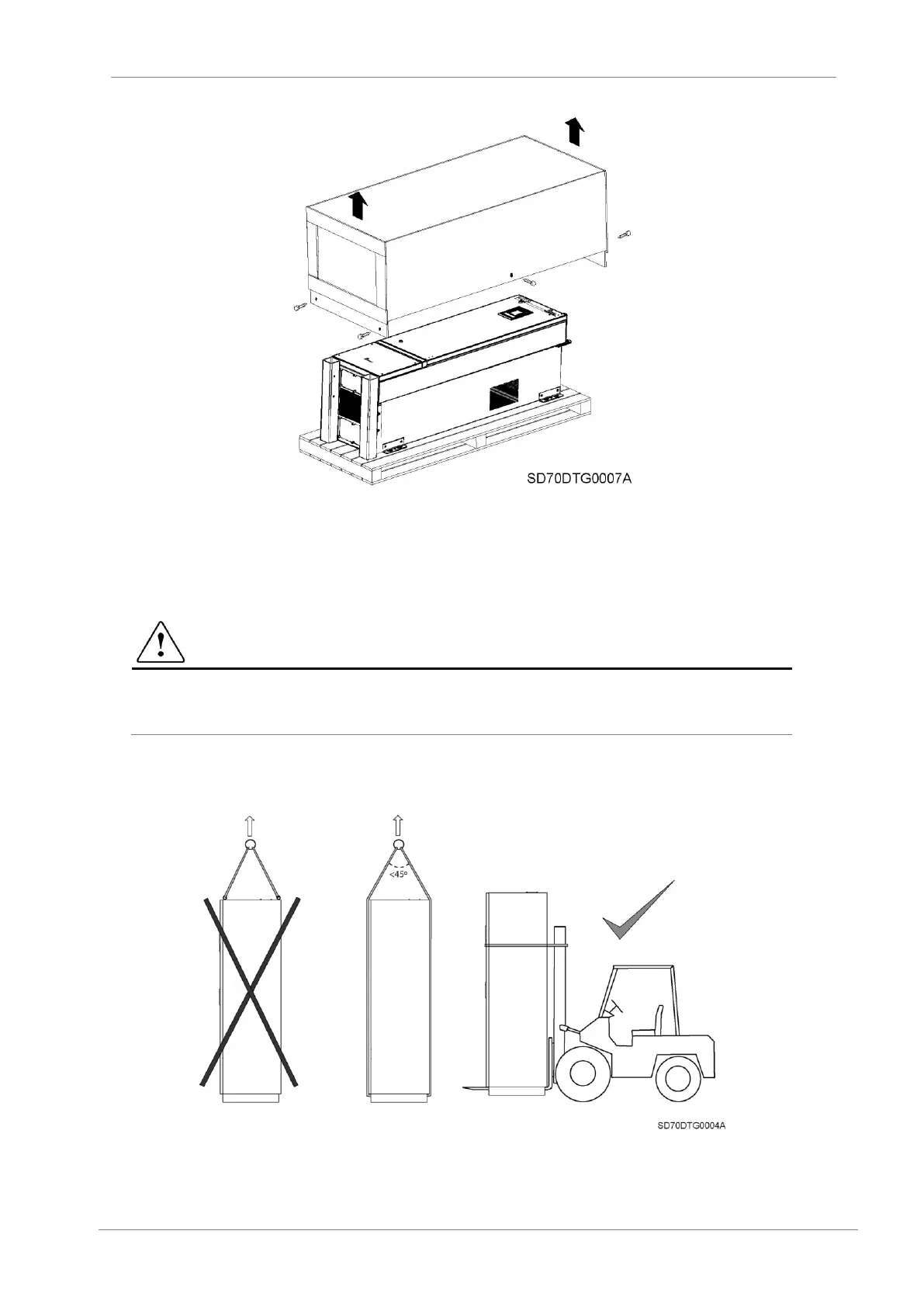

Figure 4.1 Frame 5 unpacking
To unpack, if necessary, unscrew the bolts that fix the wooden box with the pallet. Then, the drive is fixed
to the pallet through the L shapes place in its four corners, unscrew all the fixation screws, otherwise if the
cabinet is lifted the pallet could cause damage.
To rise to an upright position use only a crane or forklift equipped with belts or slings. Lift it carefully pulling
from the top eyebolts.
CAUTION
Do not lift the VSD from the eyebolts place on the top part under any circumstance, it could cause
damage to the equipment and lead to injury to people.
Once it is upright positioned, reallocate the belts/slings, the forklift or crane’s fork to lift the drive pulling
from the bottom part. Avoid brusque movements and shocks during transportation. At the time of placing
the drive on the floor, stop lowering it just before reaching the floor and then slowly lower it on the floor to
avoid any shock.
Figure 4.2 Lifting of the equipment
During handling and transportation, the goods should not be exposed to moisture, overturned, inverted,
tilted or impacted. The tilting angle should be no more than 30º.
