Page 64 of 80 Instruction Manual for AURORA CDD BCG.00613_AA
Part 4 Operations Guide
Figure 4- 3: CDD General Information Menu

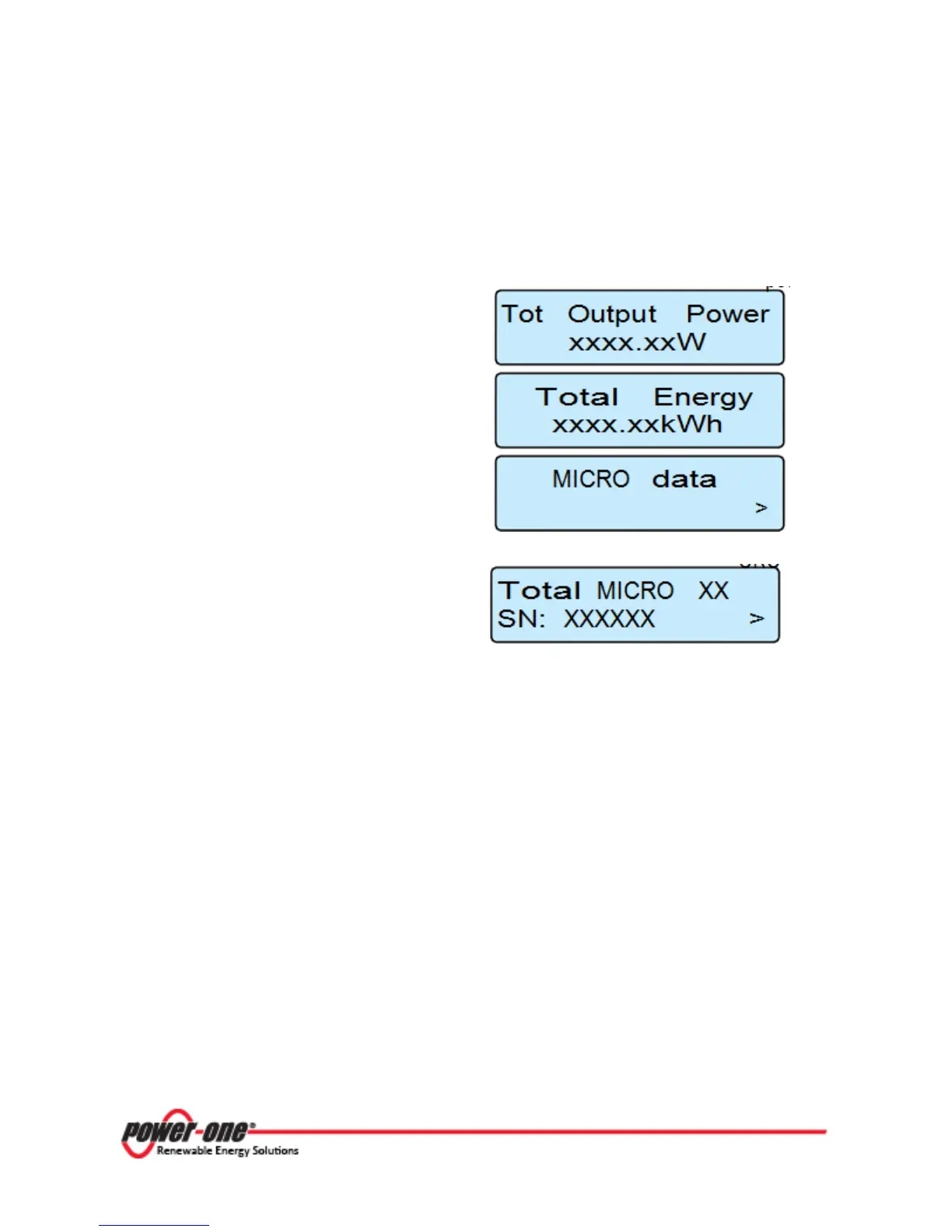

4.5.4 STATISTICS MENU
In this section it is possible to view the following information.
Total output power of all inverters.
Total energy produced from beginning of
operation.
Enables access to the statistical data referring to
the individual MICRO Inverters associated with
the CDD.
Figure 4- 4: CDD Statistics Menu
Press the ENTER button in MICRO data field
shown above).
This enables the selection of an individual
MICRO Inverter (through the
serial number
)
whose statistical data you wish to view.
Use the UP and DOWN buttons to enter the serial number and press ENTER to display the
following information.
