16

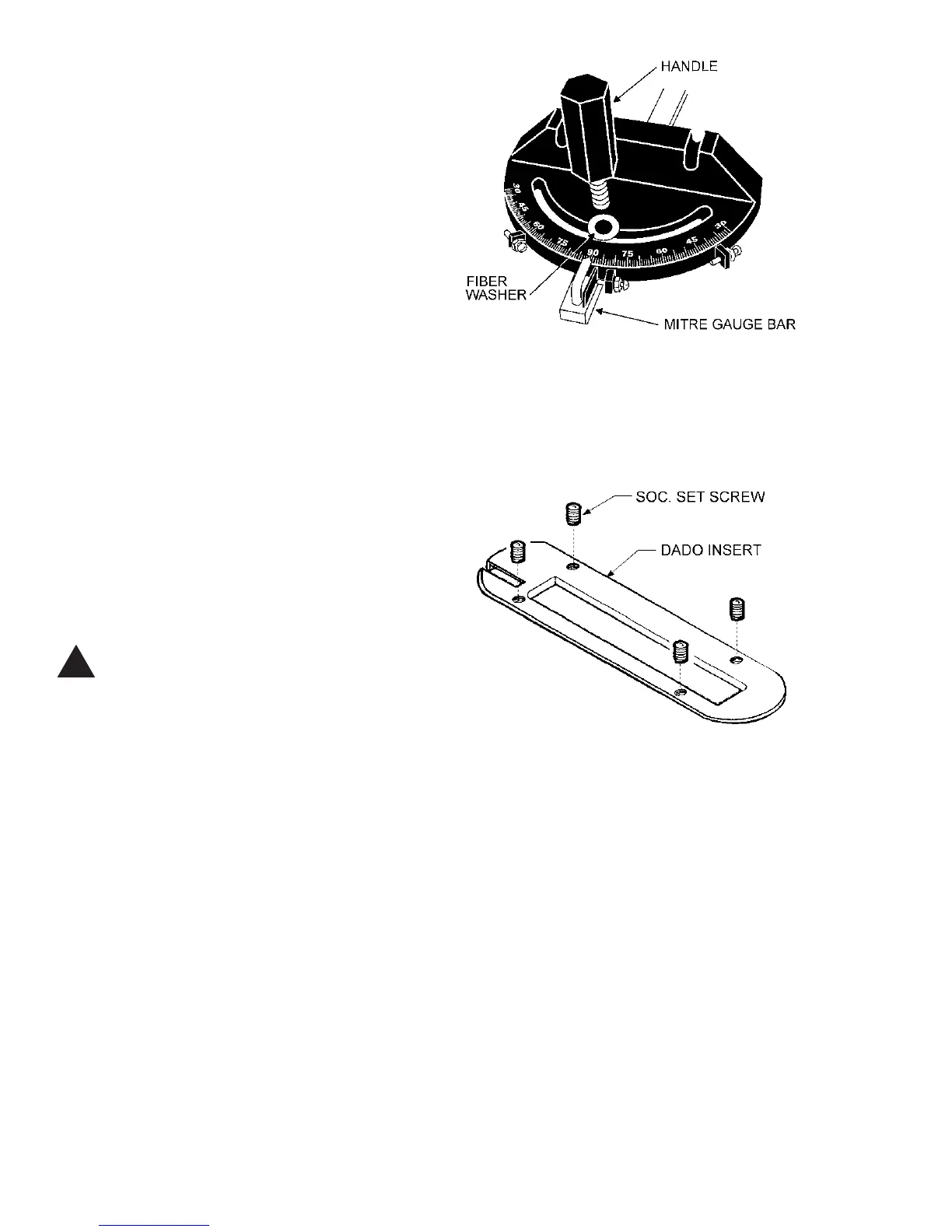

MITRE GAUGE ASSEMBLY
1. Mount the gauge body to the bar, making sure
the pins underneath the body fall in the holes in the
bar. See Figure 21.
2. Place the fiber washer on to the threaded rod,
and screw on the handle.
3. Slide the mitre gauge into the left hand slot on
the saw table.
MOTOR DISCONNECT PLUG
The motor is supplied with a special disconnecting
plug to facilitate motor removal for saw transportation
convenience. Before connecting or disconnecting this
special plug, always make sure that the saw's main
cord is unplugged.
DADO INSERT
Dadoing is cutting a rabbet or a wide groove into the
workpiece. The dado insert, shown in Figure 22, is
included as standard equipment with your saw.
CAUTION: Do not use the standard table
insert for dadoing operations.
GROUNDING INSTRUCTIONS
1. All grounded, cord connected tools:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current
to reduce the risk of electric shock. This tool is
equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug
must be plugged into a matching outlet that is prop-
erly installed and grounded in accordance with all lo-
cal codes and ordinances.
Do not modify the plug provided - if it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. The con-
ductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-
grounding conductor.
If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding
conductor to a live terminal.
!
FIGURE 21
FIGURE 22
