The power supply board can be lifted as much as needed
to position a hand underneath in order to remove it from
the chassis as portrayed in (Fig. 20)
Once all these 12 screws have been taken out, remove
the power supply board heat sink screws highlighted in
(Fig. 18) with a 2,5mm hexagonal screwdrive:
Last step before being able to remove the power supply
board is to unscrew the cable holders indicated in (Fig.
19) or the power supply board will not have enough room
to be lifted.

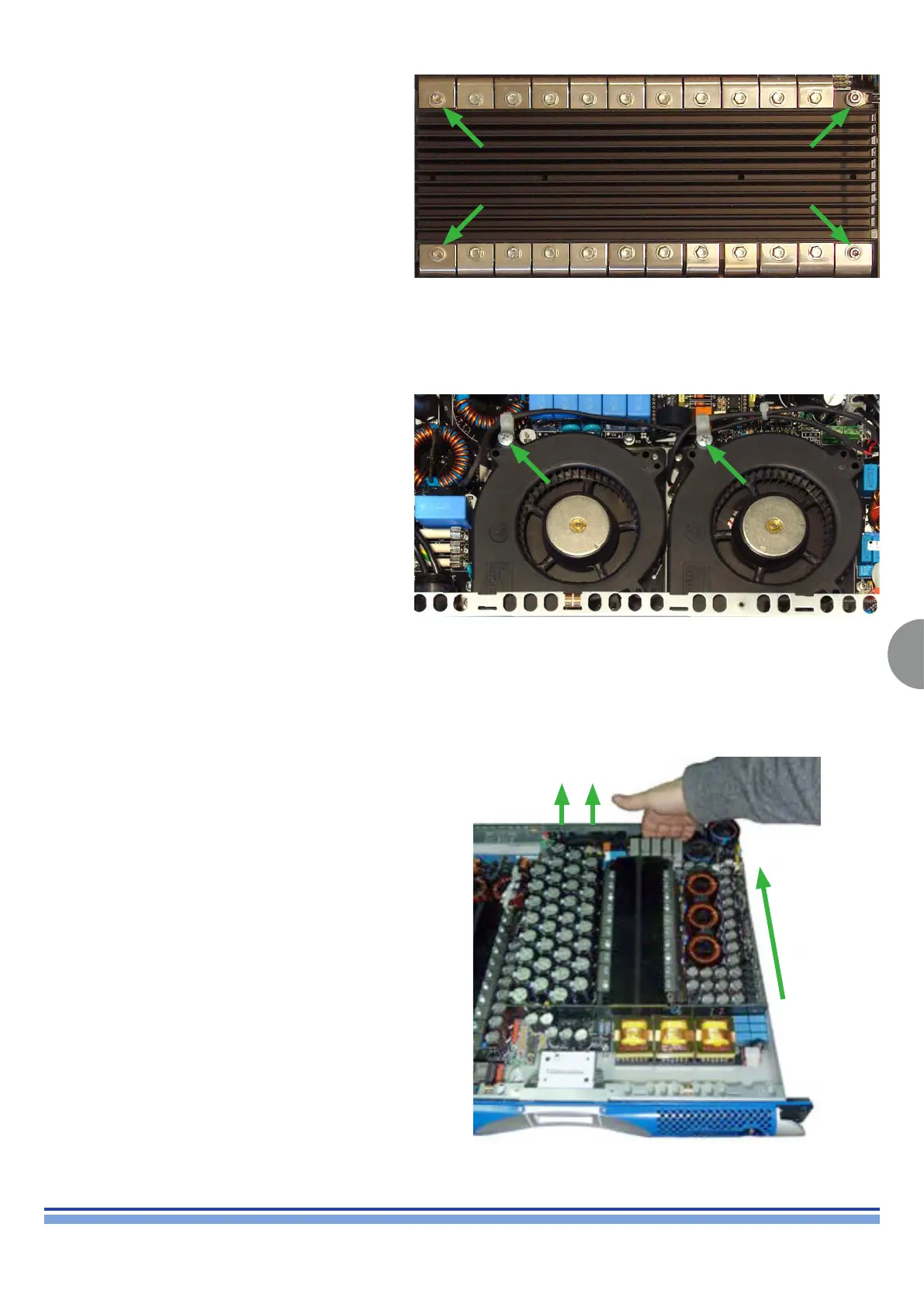

(Fig. 18)
(Fig. 19)
(Fig. 20)
