Rack-Mount Setup
The UPS can be installed in 19-inch racks and needs only 2U of valuable
rack space.
CAUTION
The UPS and Extended Battery Module are heavy (see page 65). A minimum of two
people are required to lift the UPS into the rack.
NOTE Mounting rails are required for each UPS and EBM cabinet. If rails are not
already installed in your rack, contact your local distributor to order a rail kit.
Use the following procedure to install the UPS in a rack:
1. Place the UPS on a flat, stable surface with the front of the UPS
facing toward you.
2. Attach the mounting handles to the bracket with the screws
provided in the accessory kit (see Figure 2).
3. Align the mounting brackets with the screw holes on the side of
the UPS and secure with the supplied screws (see Figure 2).
4. If installing optional EBMs, repeat Steps 1 through 3 for each
cabinet.
Mounting
Handle
Mounting
Bracket

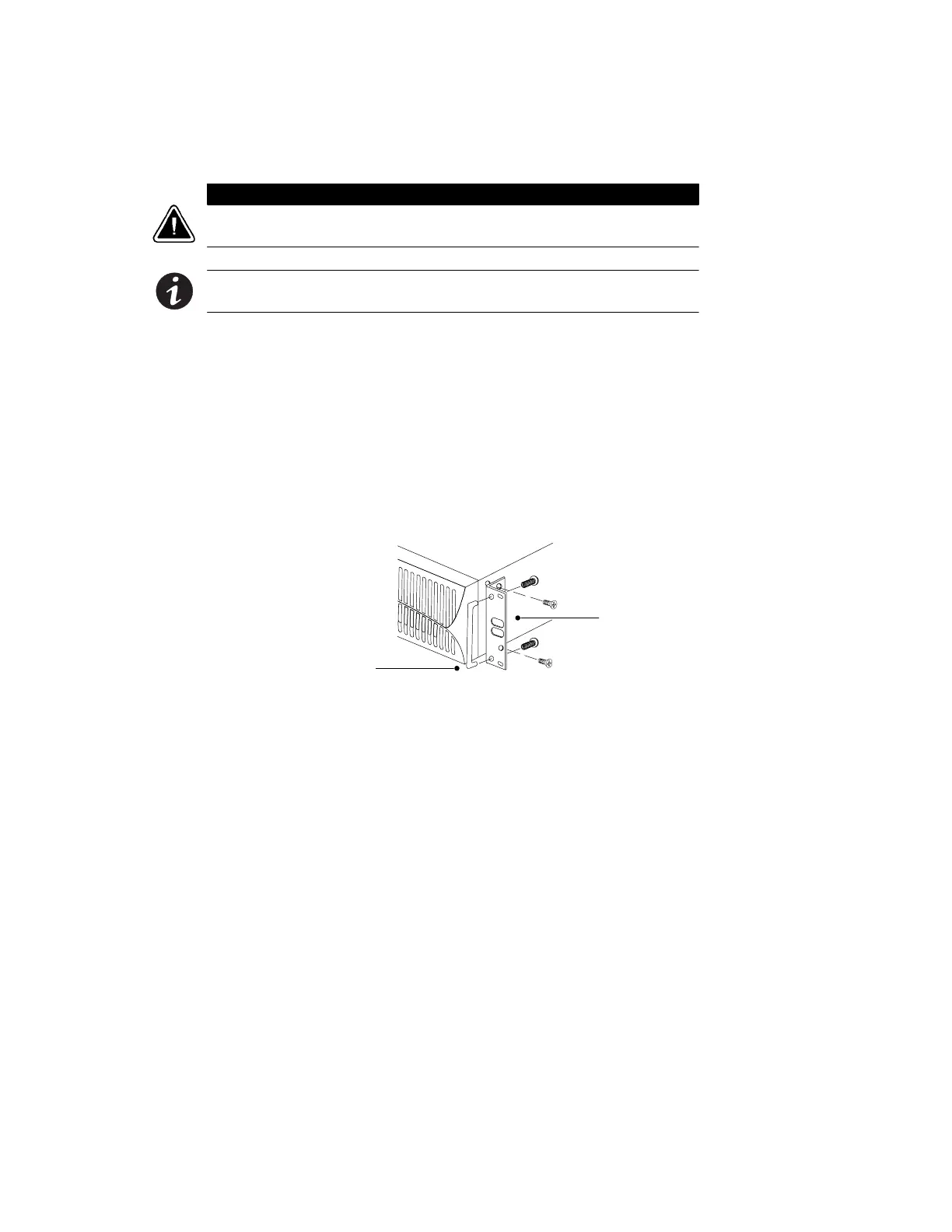

Figure 2. Installing the Mounting Brackets
