Additional UPS Features
55
Powerware
®
9125 User’s Guide (2500–3000 VA) : Rev B www.powerware.com
Load Segments
Load segments are sets of receptacles that can be controlled by power
management software, providing an orderly shutdown and startup of
your equipment. For example, during a power outage, you can keep key
pieces of equipment running while you turn off other equipment. This
feature allows you to save battery power. See your power management
software manual for details.
NOTE If the power management software is not used, the individual load segments
cannot be controlled.
For hardwired UPSs, there is only one load segment. The terminal block
serves as Load Segment 1.
Each plug-receptacle UPS has two load segments as shown in Figure 36
and Figure 37.
Load Segment 1
Load Segment 2

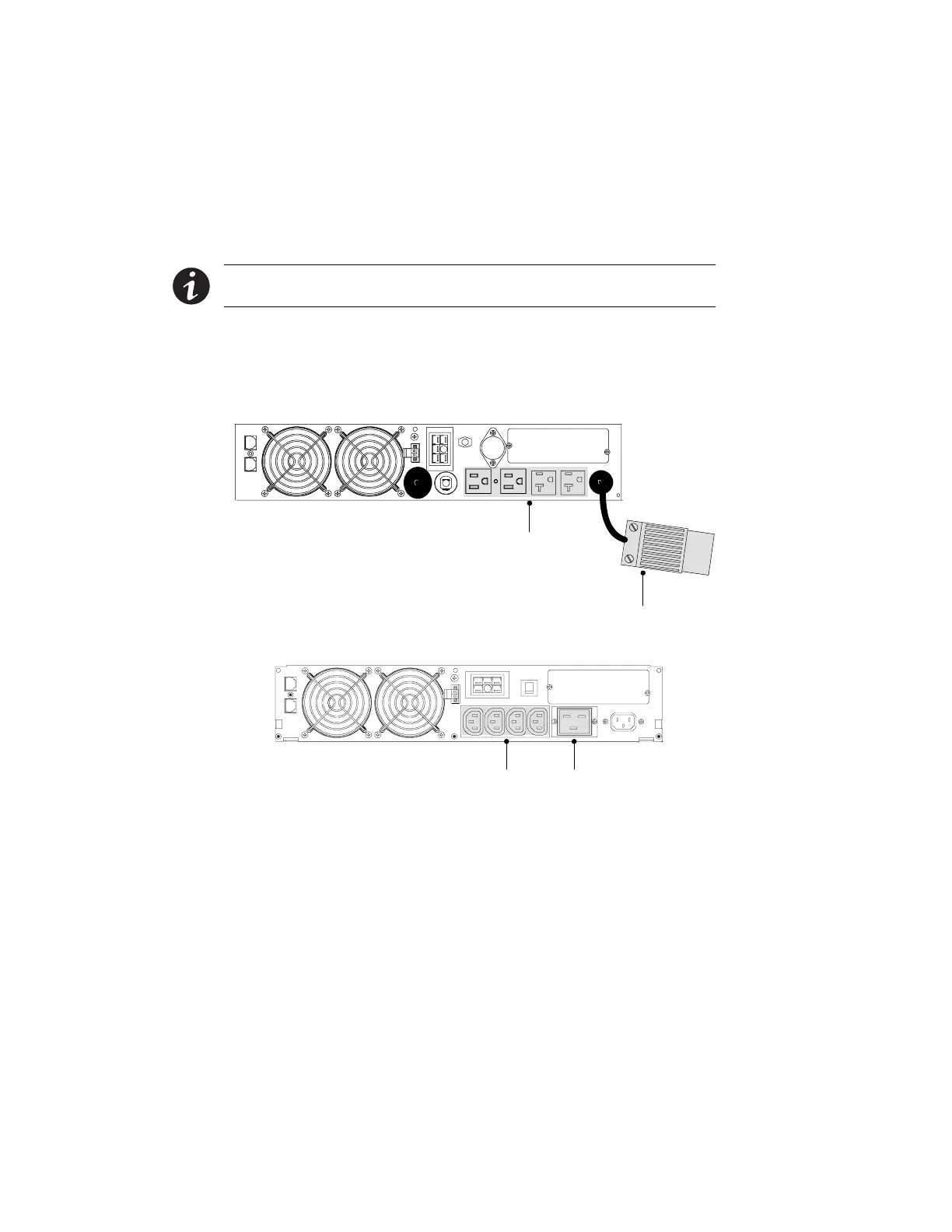

Figure 36. UPS Load Segments for 120V Models
Load Segment 2Load Segment 1
Figure 37. UPS Load Segments for 208V/230V Models
