AR Standard Repeater Sub Unit Locations
1-8 044-05250 Rev B

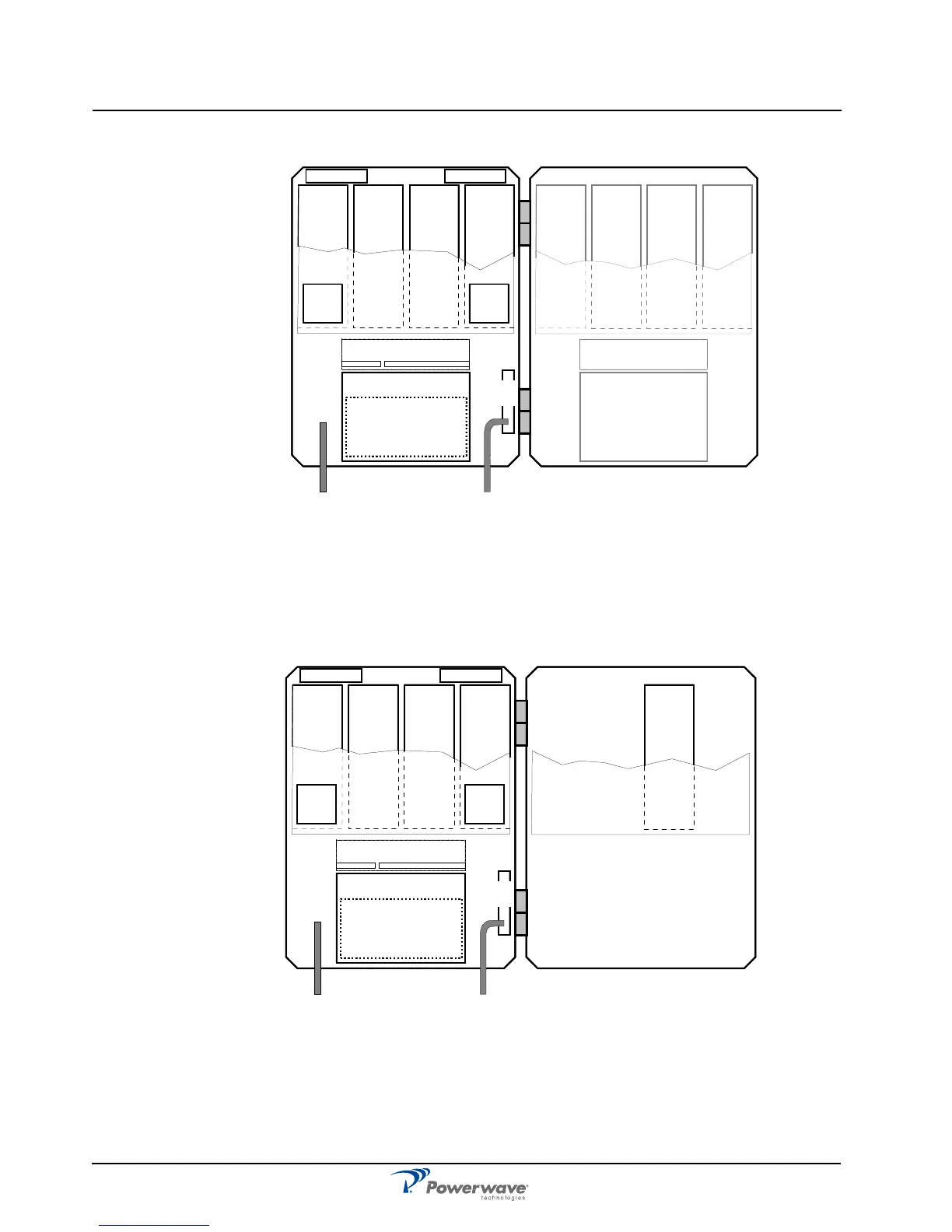

Figure 1-4 CSel CDMA/WCDMA Repeater Sub Unit Locations
CSel High Power CDMA/WCDMA Repeater
A cabinet for a CSel High Power CDMA or WCDMA repeater can be equipped with two pair of
CSAs and PAs, one pair for the DL and one pair for the UL. The described cabinet has a
capacity of two bi-directional CDMA or WCDMA carriers. A high cover is equipped with the BA
and an extra heat sink element on the outside of the cover. PCBA positions are illustrated in the
Figure 1-5 and a block diagram is located in Appendix A.
Figure 1-5 CSel High Power Repeater Sub Units Locations
BSel Repeater
A cabinet for a band selective repeater is equipped with two pairs of BSAs and PAs, one pair
for the DL and one pair for the UL. The described cabinet is equipped for bi-directional band
selective operation. A high cover can be equipped as well providing two bands. PCBA
positions are illustrated in the Figure 1-6 and a block diagram is located in Appendix A
LNA - DL
1234
LNA - UL
PSU
(RCU)
DPX
CUALI/RCI
DC
BS
DPX
CSA
DL
2
PA
DL
CSA
UL
2
PA
UL
5678
CSA
DL
2
PA
DL
CSA
UL
2
PA
UL
PSU
LNA - DL
1234
LNA - UL
PSU
(RCU)
CUALI/RCI
DC
BS
DPX
CSA
DL
2
PA
DL
CSA
UL
2
PA
UL
7
BA
DL
DPX
