PowerWave AR1200 - Mounting Bracket; Mounting Bracket Installation on Wall

Mounting AR Standard Repeater
3-2 044-05250 Rev B

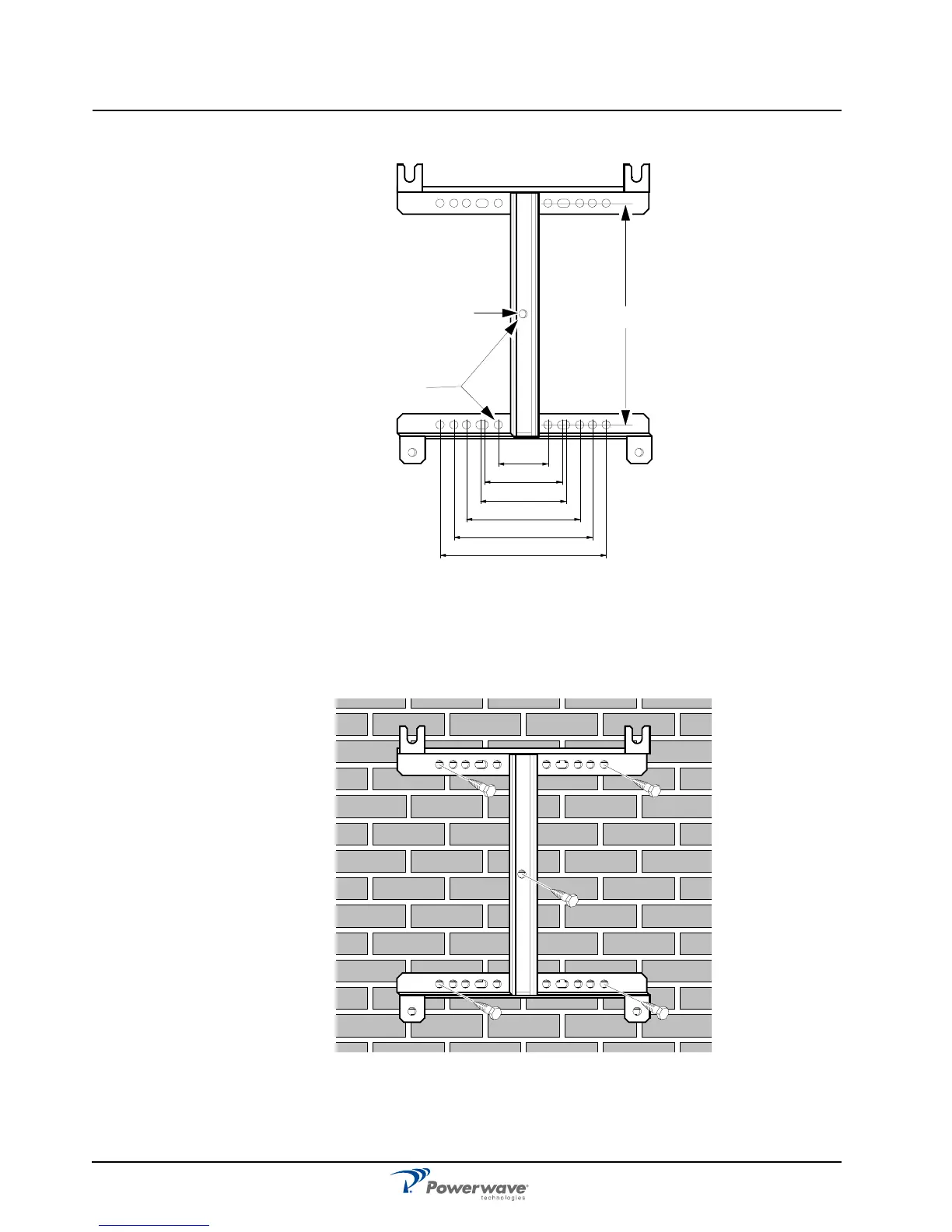

Figure 3-1 Mounting bracket
Normally, the AR repeater is mounted on a wall, pole or mast. Figure 3-2 illustrates the
installation of the mounting bracket on a wall using four fixing screws and a locking screw.
Figure 3-2 Mounting bracket installation on wall
90
135
144
205
250
300
Ø14
A
411
