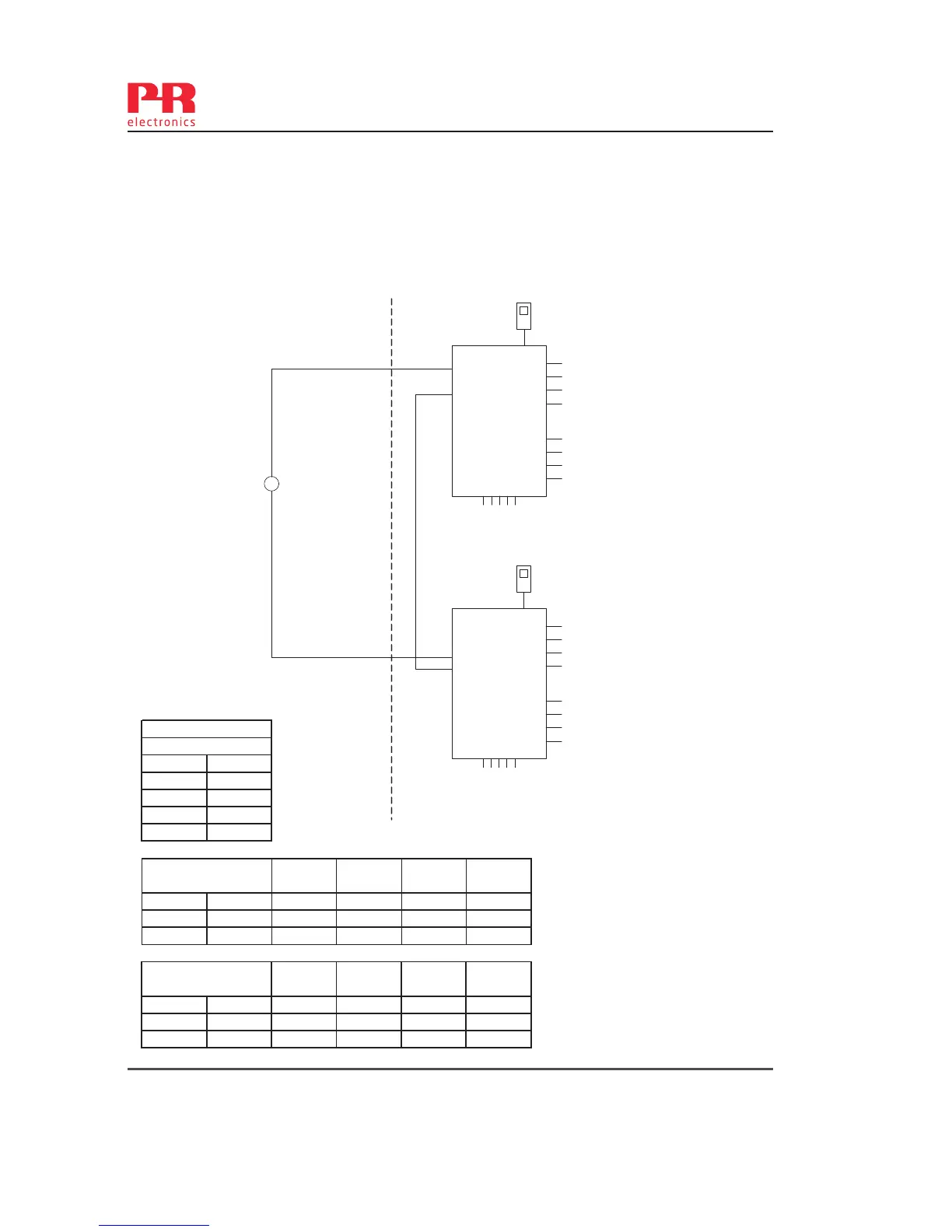

PR 9116 - Installation Diagram (4-20 mA); Status Relay and Relay Output Wiring; Module 9116 B1;B2 Electrical Data

34 9116 - Product Version 9116-003
9116QI01
LERBAKKEN 10, 8410 ROENDE DENMARK
Revision date:
2012-07-04
Version Revision
V6 R0
Prepared by:
PB
Page:
3/4
Uo 28 V IIC 80 nF 4 mH 54 μH/Ω
Io 93 mA IIB 640 nF 16 mH 218 μH/Ω
Po 650 mW IIA 2.1 μF 32 mH 436 μH/Ω
Uo 21.4 V IIC 0.16 μF 4 mH 54 μH/Ω
Io 93 mA IIB 1.13 μF 16 mH 218 μH/Ω
Po 650 mW IIA 4.15 μF 32 mH 436 μH/Ω
Group
Module 9116B1
Term. 54-52; 51-52
Module 9116B2
Term. 54-52; 51-52
Co Lo Lo/Ro
Co Lo Lo/RoGroup
Terminal 54-52
Ui 30 V
Ii 120 mA
Pi 900 mW
Ci 3 nF
Li 2 μH
Module 9116B 1/2
Hazardous area Non Hazardous area
Zone 0,1,2, 20, 21, 22 or Zone 2
T
+
-
54
53
52
51
44
43
42
41
9116
34
33
32
31
14
13
12
11
Power Rail
4501
54
53
52
51
44
43
42
41
9116
34
33
32
31
14
13
12
11
Power Rail
4501
4-20 mA
Loop-powered
transmitter
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal 91,92,93,94,95)
U
m:
253 V max. 400 Hz
-20 ≤Ta ≤ +60ºC
Status relay, terminal (33,34)
Non hazardous area installation
Voltage max: 125 VAC / 110 VDC
Power max: 62.5 VA / 32 W
Current max: 0.5 A AC / 0.3 ADC
Zone 2 installation:
Voltage max: 32 VAC / 32 VDC
Power max: 16 VA / 32 W
Current max: 0.5
A
AC / 1
A
DC
Relay output, terminal (13,14)
Non hazardous area installation
Voltage max: 250 VAC / 30 VDC
Power max: 500 VA / 60 W
Current max: 2 A AC / 2A DC
Zone 2 installation
Voltage max: 32 V AC / 30 VDC
Power max: 64 VA / 60 W
Current max: 2 A AC / 2 ADC
