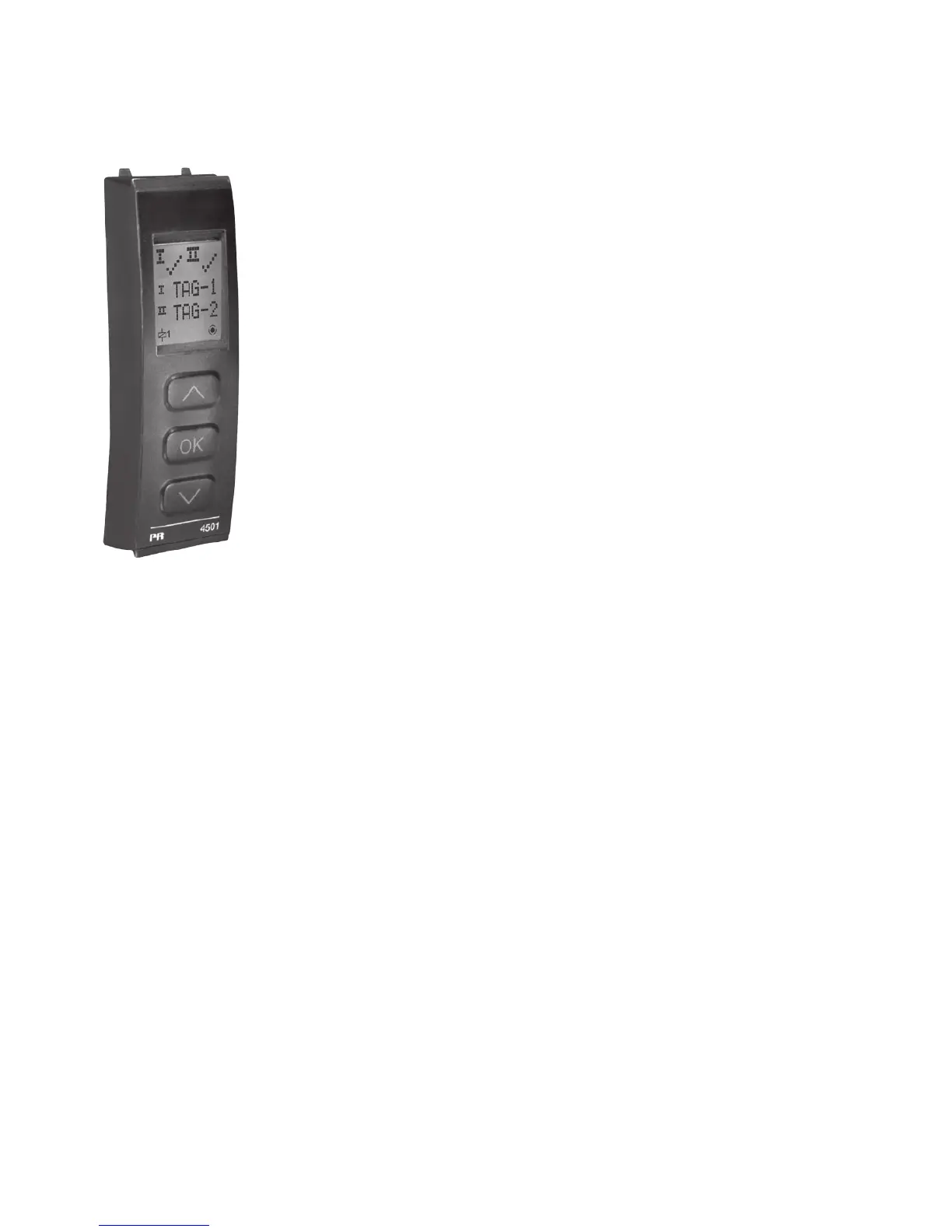

PR 4501 DISPLAY / PROGRAMMING FRONT
Functionality
The simple and easily understandable menu structure
and the explanatory help texts guide you effortless ly and
automatically through the configuration steps, thus making the
product very easy to use. Functions and configuration options
are described in the section ”Configuration / operating the
function keys”.
Application
• Communicationsinterfaceformodificationofoperationalparametersin9116.
• Canbemovedfromone9116devicetoanotheranddownloadthe
configuration of the first unit to subsequent units.
• Fixeddisplayforvisualisationofprocessdataandstatus.
Technical characteristics
• LCDdisplaywith4lines;Line1(H=5.57mm)showsinputstatus,line2
(H=3.33)mmtoggelsbetweeninputvalueandtag.no.Line3(H=3.33
mm) shows output value and UNIT. Line 4 shows status for relay and
communicationandwhetherthedeviceisSIL-locked.Staticdot=SIL-locked
andflashingdot=notSIL-locked.
• Programmingaccesscanbeblockedbyassigningapassword.Thepassword
is saved in the device in order to ensure a high degree of protection against
unauthorised modifications to the configuration.
Mounting / installation
•Click4501ontothefrontof9116.
