LERBAKKEN 10, 8410 ROENDE DENMARK
Revision date:
2012-07-04
Version Revision
V6 R0
Prepared by:
PB
Page:
1/4

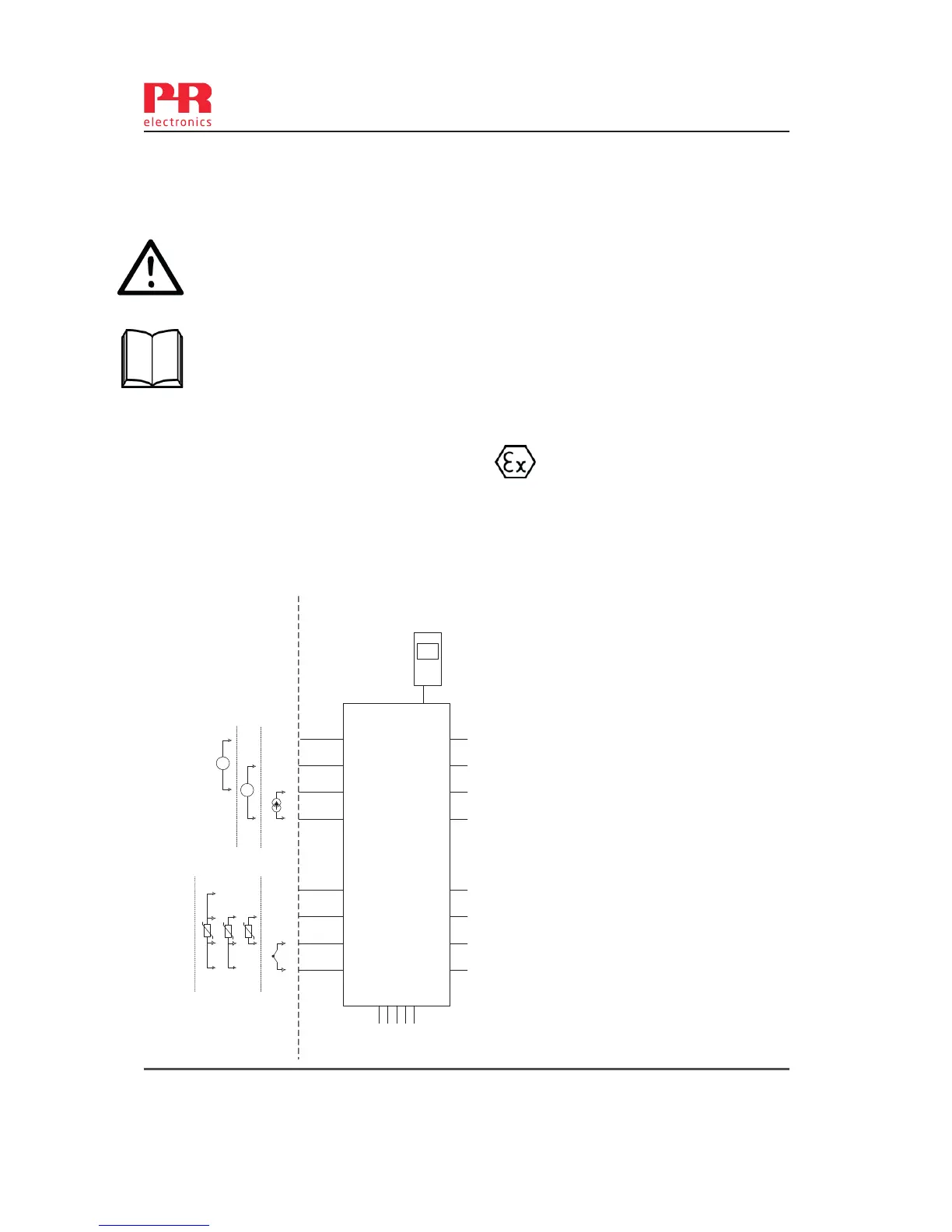

ATEX Installation drawing
9116
For safe installation of 9116B the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
4501
For installation in Zone 2 the following must be observed.
The 4501 programming module is to be used solely with PR electronics’ modules. It is important
that the module is undamaged and has not been altered or modified in any way.
Only 4501 modules free of dust and moisture shall be installed.
ATEX Certificate: ......................................................................... KEMA 10 ATEX 0053 X
Marking:
Standards EN 60079-0 : 2009, EN 60079-11 : 2012, EN 60079-15 : 2005
EN 60079-26 : 2007
Hazardous area Non Hazardous area
Zone 0,1,2, 20, 21, 22 or Zone 2
(
terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal 91,92,93,94,95)
U
m
: 253 V; max 400 Hz
Relay output, terminal (13,14)
Non hazardous area installation
Voltage max: 250 VAC / 30 VDC
Power max: 500 VA / 60 W
Current max: 2 A AC / 2 ADC
Zone 2 installation
Voltage max: 32 VAC / 30 VDC
Power max: 64 VA / 60 W
Current max: 2 A AC / 2 ADC
Status relay, terminal (33,34)
Non hazardous area installation
Voltage max: 125 VAC / 110 VDC
Power max: 62.5 VA / 32 W
Current max: 0.5 A AC / 0.3 ADC
Zone 2 installation:
Voltage max: 32 VAC / 32 VDC
Power max: 16 VA / 32 W
Current max: 0.5 A AC / 1 A DC
-20 ≤Ta ≤ +60ºC
4- wire 2- wire3- wire
-
TCRTD / LinR
+
Potm. 2
Potm. 3
Potm. 1
+
mALoop V
+
T
54
53
52
51
44
43
42
41
9116
34
33
32
31
14
13
12
11
Power Rail
4501
+
+
-
-
-
II (1) G [Ex ia Ga] IIC/IIB/IIA
II 3 G Ex nA nC IIC T4 Gc
II (1) D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
