C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 22
Procedure 5.3 - Recumbent Seat Adjustment
1. Perform this procedure if the front to rear movement of the seat is too tight or there is
excessive side to side seat wobble.
2. Loosen but do not remove the four mounting screws on the left and right seat adjustment
plates. See Diagram 5.5

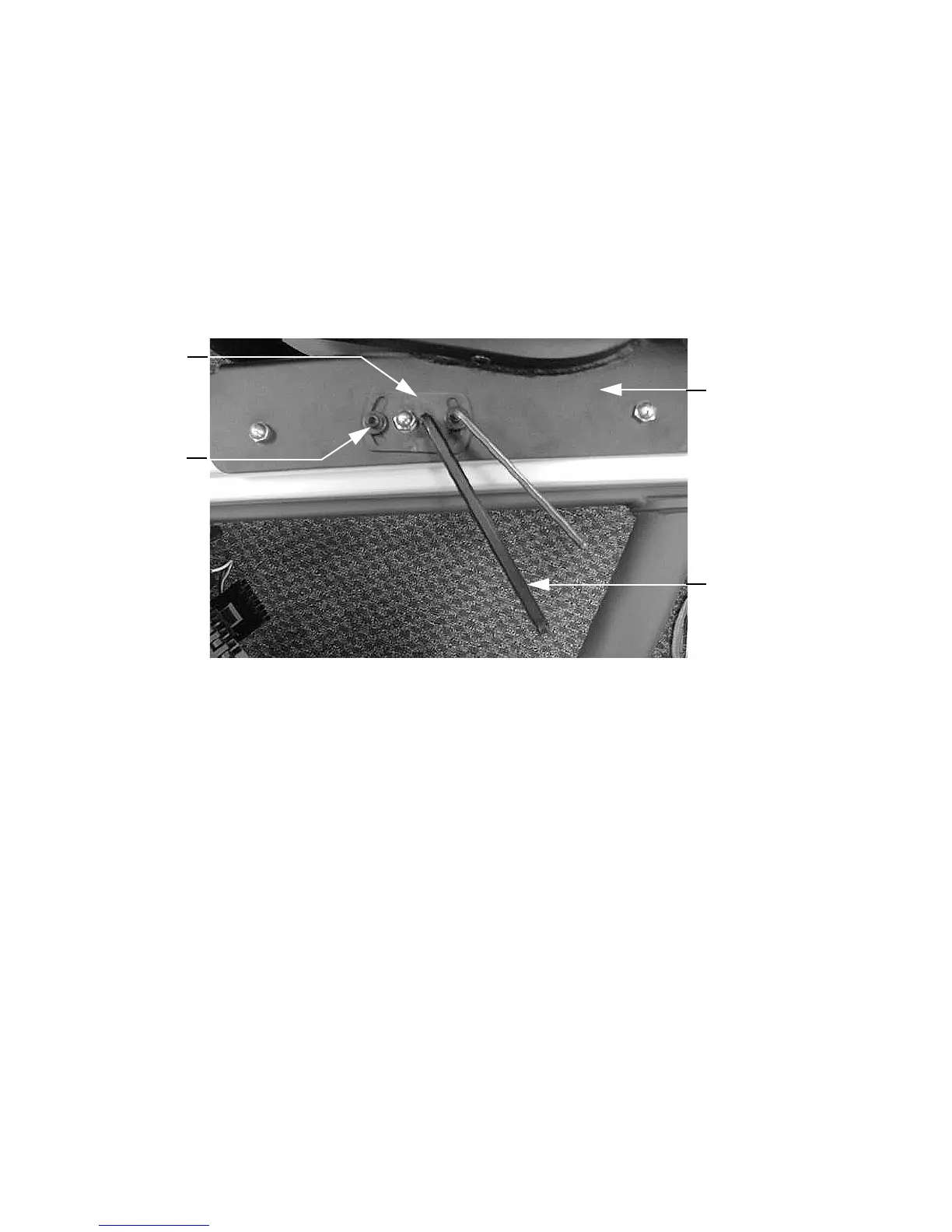

Diagram 5.5 - Recumbent Seat Adjustment (All versions)
3. Insert an allen bit into the adjustment hole in one of the seat adjustment plates. Rotate the
adjustment plate counterclockwise to loosen or clockwise to tighten the seat. Perform half of
the adjustment using the right hand adjustment plate and half of the adjustment using the
left hand adjustment plate.
4. Apply a minimum of pressure to the adjustment wrench when tightening the seat
adjustment. Apply only enough pressure to rotate the adjustment plate fully clockwise.
5. When the seat is properly adjusted, the angle of rotation of both adjustment plates should
be approximately the same. The seat should not wobble side to side and should move
forward and backward easily.
6. Torque the four seat adjustment plate mounting screws to 120 in/lb.
Adjustment
Plate
Mounting
Screw
Seat
Carriage
Adjustment
Wrench
