C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 41
Procedure 7.1 - Removing or Replacing One or Both Covers
1. For C842, C842i, C846i and C846 version 2 units, skip to step 14. For C846 version 1 units,
continue with step 2.
2. Set the on/off switch in the off position.
3. The right hand cover may be removed without removing the right hand crankarm. The left
hand crankarm must be removed to remove the left hand cover.
4. If you are removing the left hand cover, a plastic cap covers the crankarm mounting bolt.
Using a thin bladed tool, remove the cap from the crankarm. (See Diagram 7.1), continue
with step 4. If you are removing the right hand cover skip with step 6.
5. Grasp and hold the left hand crankarm, loosen but do not remove the crankarm mounting
bolt with a socket wrench.

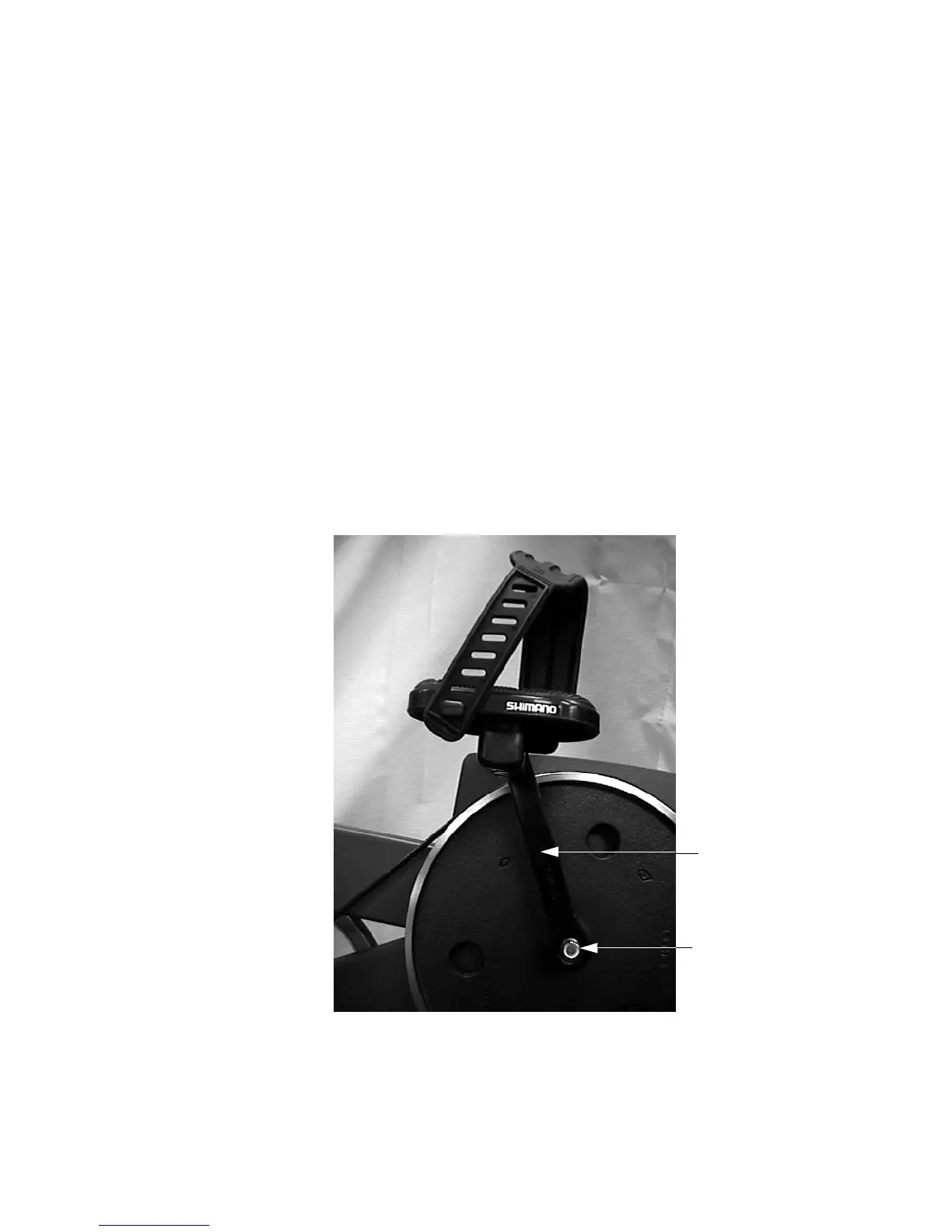

Diagram 7.1 - Crankarm Mounting
6. Do not use a bicycle crankarm removal tool, it may damage the threads in the crankarm
axle. Loosen the crankarm using a small gear puller. Remove the crankarm mounting bolt,
then remove the crankarm.
Crankarm
Crankarm Bolt
