C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 66
Procedure 7.13 - Replacing the Alternator
(C846 version 1 only)
Note:
The flywheel is balanced on the alternator. The replacement alternator will be furnished with a
flywheel and be balanced as a unit. The flywheel should only be removed from the alternator if
absolutely necessary. The keyed shaft will allow the flywheel to be replaced and maintain it’s
balancing. The flywheel must not be mounted on any other alternator. Balancing can only be
maintained if the flywheel is mounted on it’s original alternator.
1. Set the on/off switch in the off position.
2. Remove both covers per Procedure 7.17.
3. Loosen the upper and lower alternator mounting bolts and rotate the alternator so that
tension is removed from the secondary drive belt.

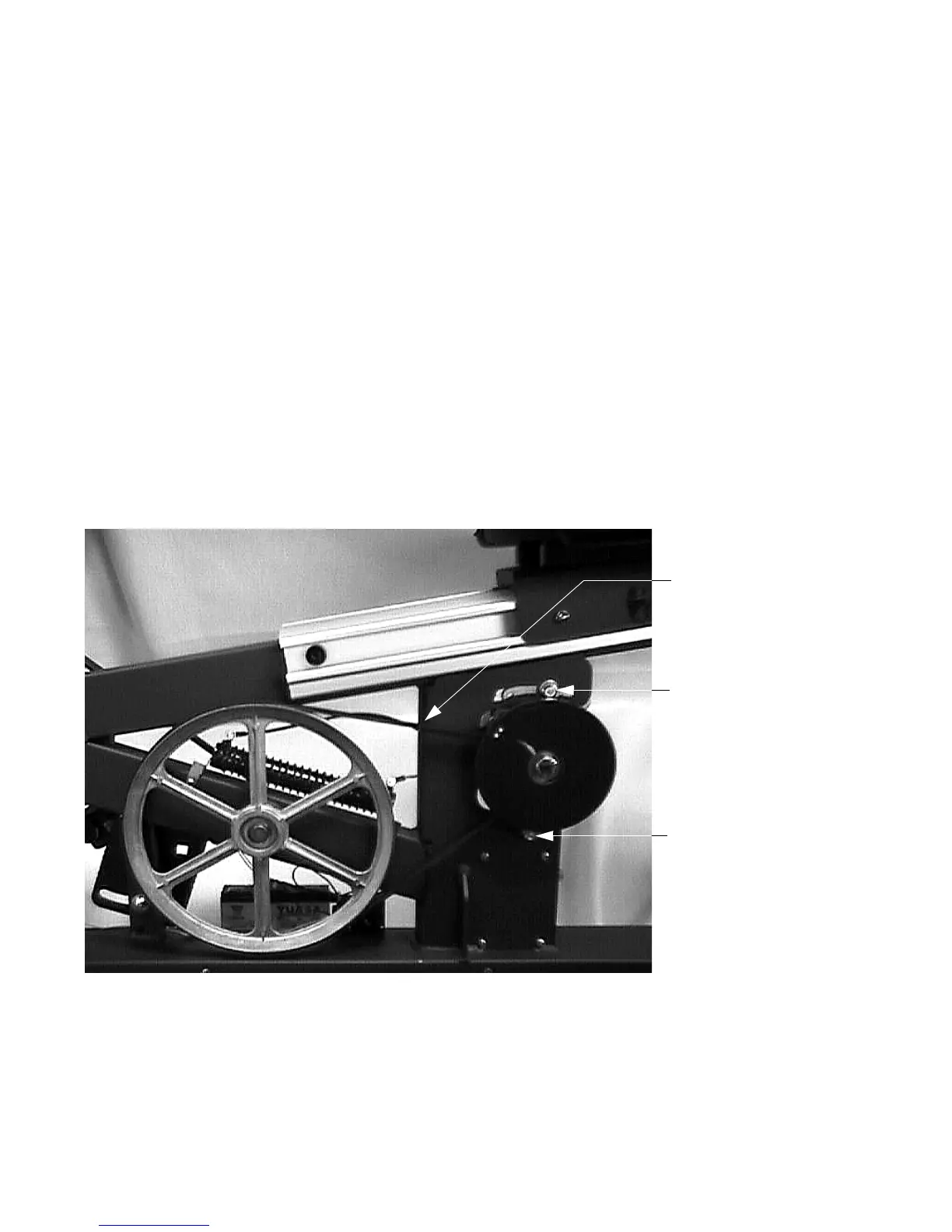

Diagram 7.20 - Secondary Drive Belt Mounting, C846 version 1
4. Remove the secondary drive belt.
5. Remove the red, black and white wiring from the alternator (See Diagram 7.21).
6. Remove the upper and lower alternator mounting bolts and remove the alternator/flywheel.
Secondary
Drive Belt
Upper Alternator
Mounting Bolt
Lower Alternator
Mounting Bolt
To Next Page
