C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 35

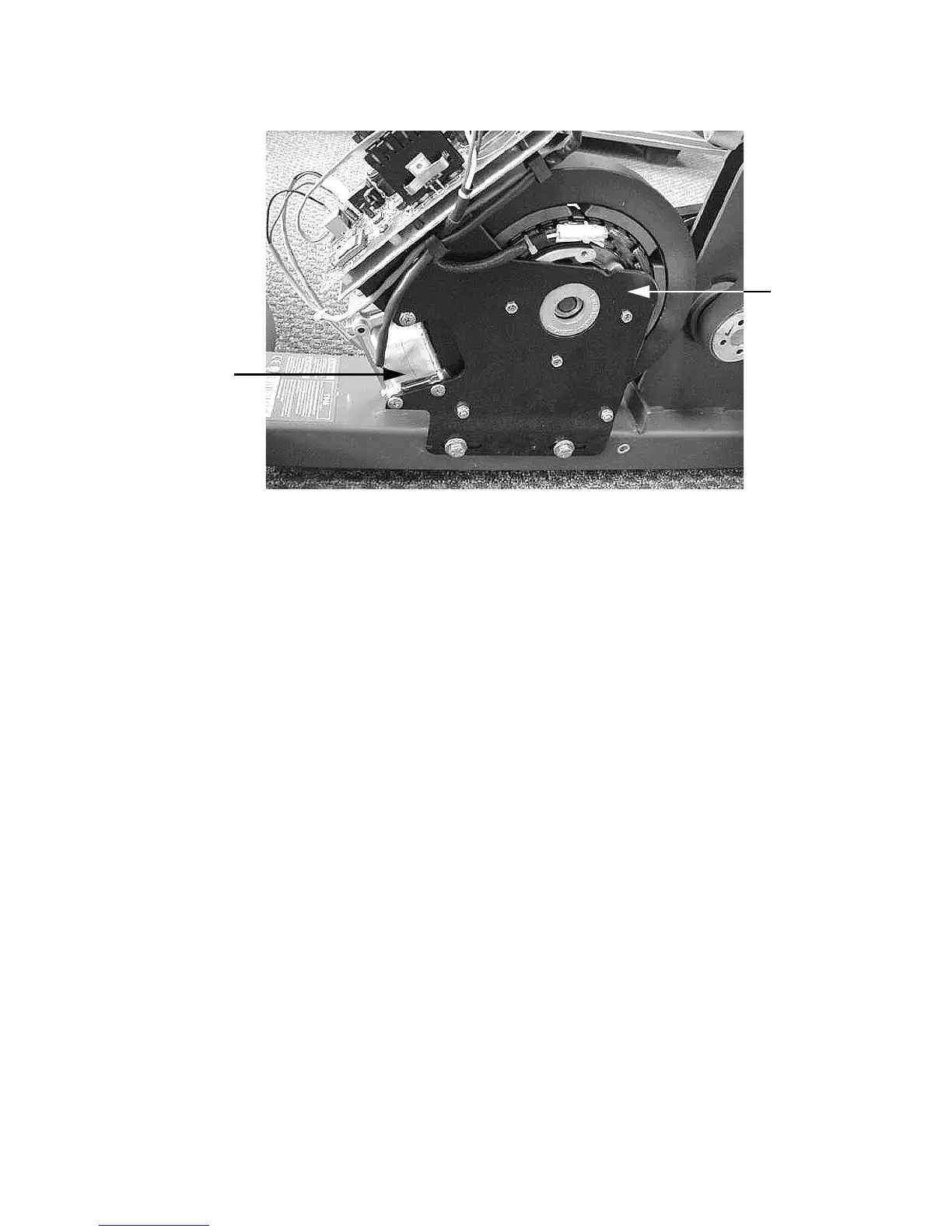

Diagram 6.9 - Eddy Current Magnet, C842, C842i, C846i and C846 version 2
19. If the measurement in step 18 was significantly high or low, replace the generator. The eddy
current magnet is furnished with the generator. After replacing the generator, tension the
secondary belt per Procedure 5.2.
20. If the measurement in step 18 was correct, replace the lower PCA.
21. It is highly unlikely that the RPM reading could every be present but incorrect. If this
condition should occur, replace the lower PCA
Eddy
Current
Magnet
Generator
To Next Page
