10. Replace the cover per Procedure 7.1. This procedure is complete.
11. Remove the left side cover.
12. Loosen the jam nuts on the secondary belt tension adjustment bolt. Loosen the adjustment
bolt to remove tension from the secondary belt. See Diagram 7.25. remove the secondary
belt.

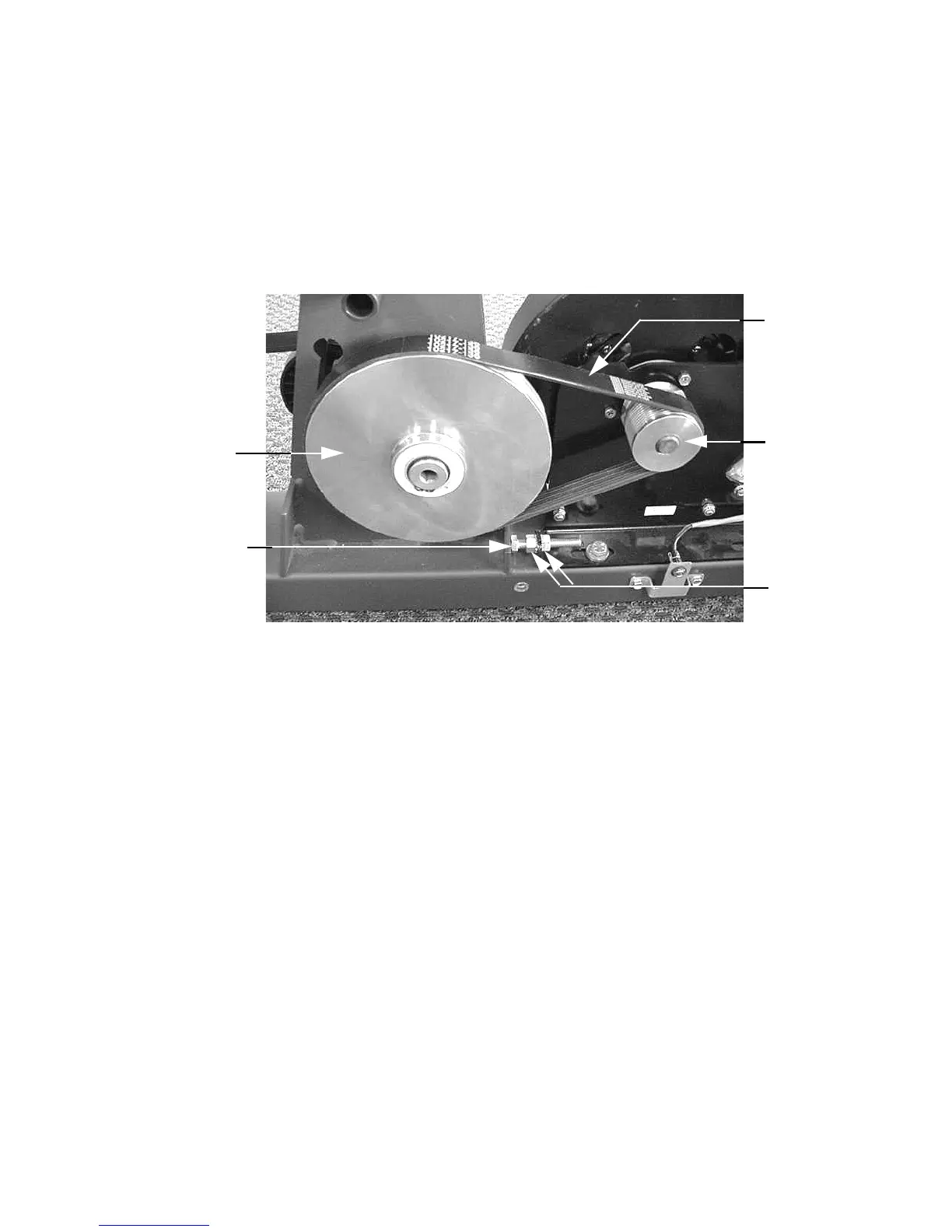

Diagram 7.25 - Secondary Drive Belt, C842, C842i, C846i and C846 version 2
13. Route the replacement secondary belt over the secondary pulley and generator pulley as
shown in Diagram 7.25.
14. Tension the secondary belt per Procedure 5.2.
15. Replace the left side cover.
Secondary
Belt
Generator
Pulley
Jam Nuts
Secondary
Pulley
Adjustment
Bolt
