C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 79
Procedure 7.20 - Generator Replacement (C842, C842i, C846i
and C846 version 2 only)
1. Remove the left and right side covers.
2. Remove the positive (red) wire from the battery.
3. Remove all of the wiring from the lower PCA.
4. Loosen the secondary belt adjustment belt to remove tension from the secondary belt.
5. Remove the four generator mounting bolts. See Diagram 7.30

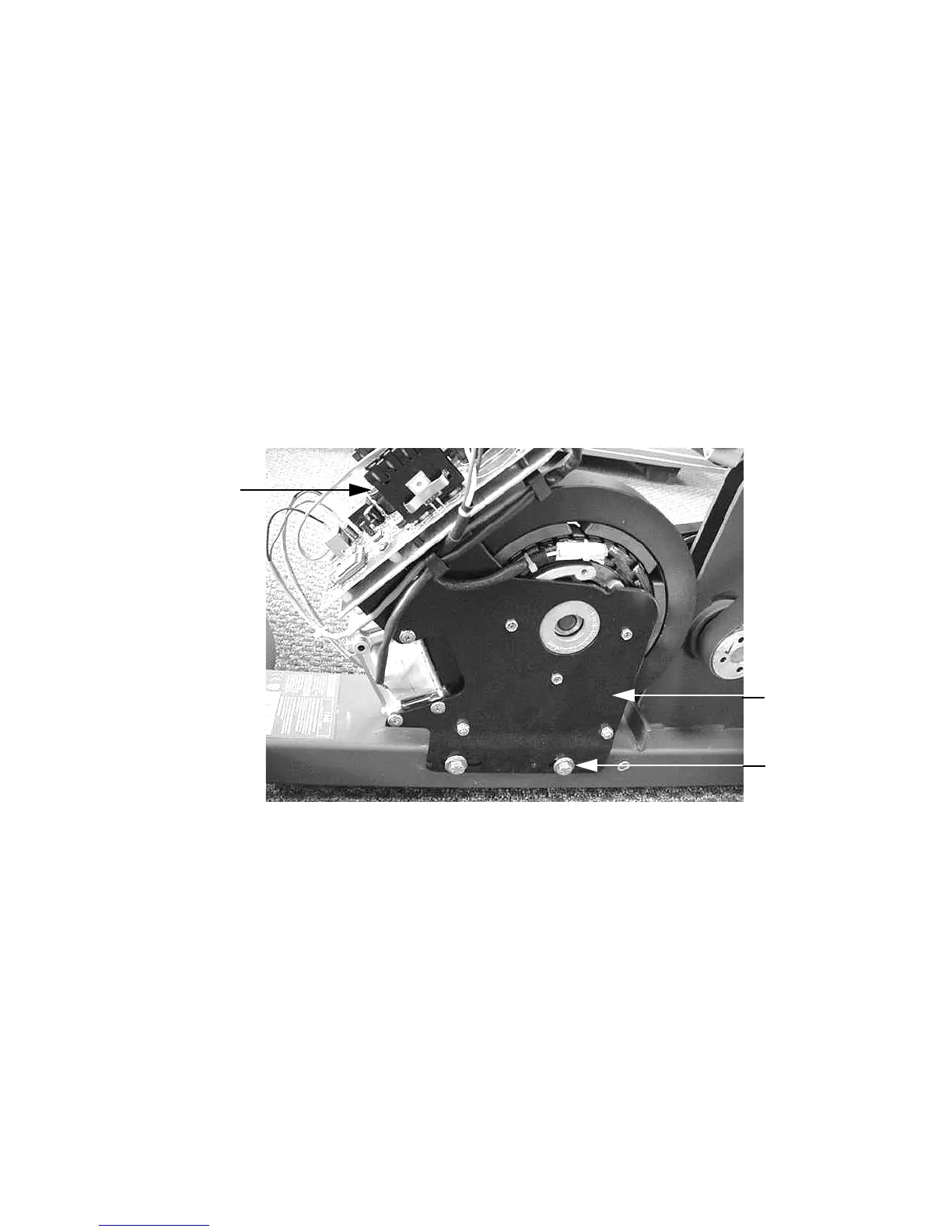

Diagram 7.30 - Generator Mounting C842, C842i, C846i and C846 version 2
6. Remove the generator with the lower PCA from the bike.
7. Using anti-static protection, remove the four screws that fasten the lower PCA onto its
mounting bracket.
8. Remove the four screws that fasten the lower PCA mounting bracket to the generator.
9. Mount the lower PCA mounting bracket on the replacement generator with the screws
removed in step 8.
10. Mount the lower PCA on the mounting bracket with the screws removed in step 7.
Generator
Mounting
Bolt
Lower PCA
To Next Page
