Precor EFX5.23 User Manual

page 19

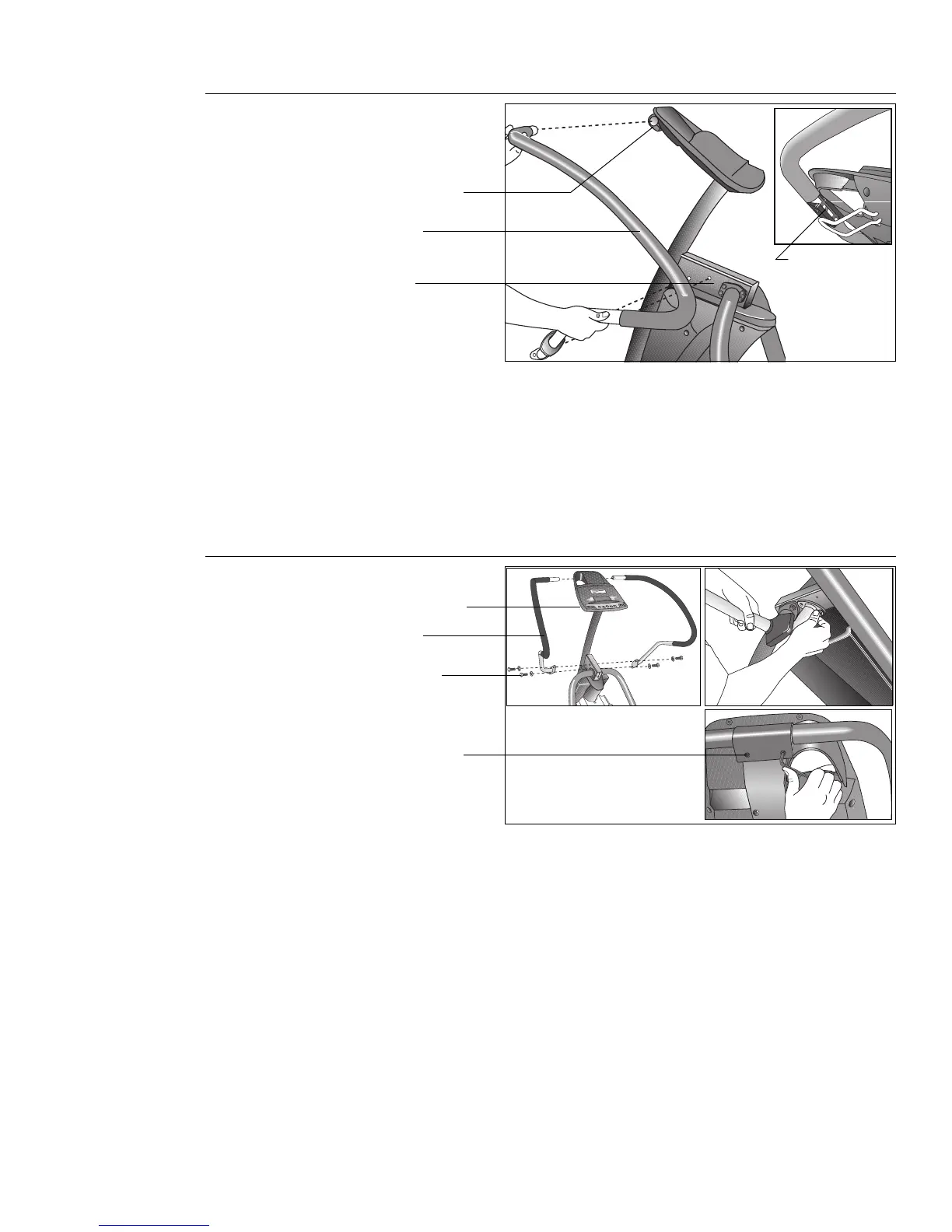

24. Insert the left and right handrails into the upper clamp. Diagram 16. Insert the
upper end of the handrail into the upper handrail clamp. Using one hand, apply
pressure on the portion of the handrail being inserted into the clamp while, with
the other hand, lift and lower the base of the handrail. This rotating motion helps
move the handrail into the clamp. Repeat this step for the opposite handrail.
25. Check the gap in the upper clamp. Diagram 16, inset. Look underneath the
handrail clamp to see that the gap, which exists between the two ends of the
handrails, is no greater than 1/2-inch. See Diagram 16.
Diagram 16 Insert the handrails
into the handrail
clamp.
26. Secure the handrails. Diagram 17. Align the handrail base mounts with the
handrail bracket. Insert two bolts (F) and washers (G) and finger tighten. Repeat
this step for the opposite handrail.
a. Check the gap between the ends of the handrails in the clamp. Refer to
Diagram 14, inset.
b. With the gap between 1/4-inch and 1/2-inch, tighten the bolts in the
handrail clamp using the hex key provided.
c. Return to the bolts (F) in the base of the handrails and tighten each
securely using a 9/16" socket extension and wrench.
Handrail clamp
Handrail
Upright support
bracket
Tighten bolts in
handrail clamp.
Gap between
handrail ends
inside clamp
should be
no greater than
1/2-inch.
Diagram 17 Secure the handrails.
Display console
Handrail
Screws (F) and
washers (G)

Precor EFX5.23 Specifications

Power

voltage	120 V
frequency	50/60Hz
current	4.0 Amps

Incline and Programs

incline range	13 to 35 degrees
manual course	Included
cross training interval course	Included

Weight and Dimensions

length	79 inches (201 cm)
width	32 inches (81 cm)
height	63 inches (160 cm)
weight	183 lbs. (82 kg)
