Precor EFX5.23 User Manual

page 20

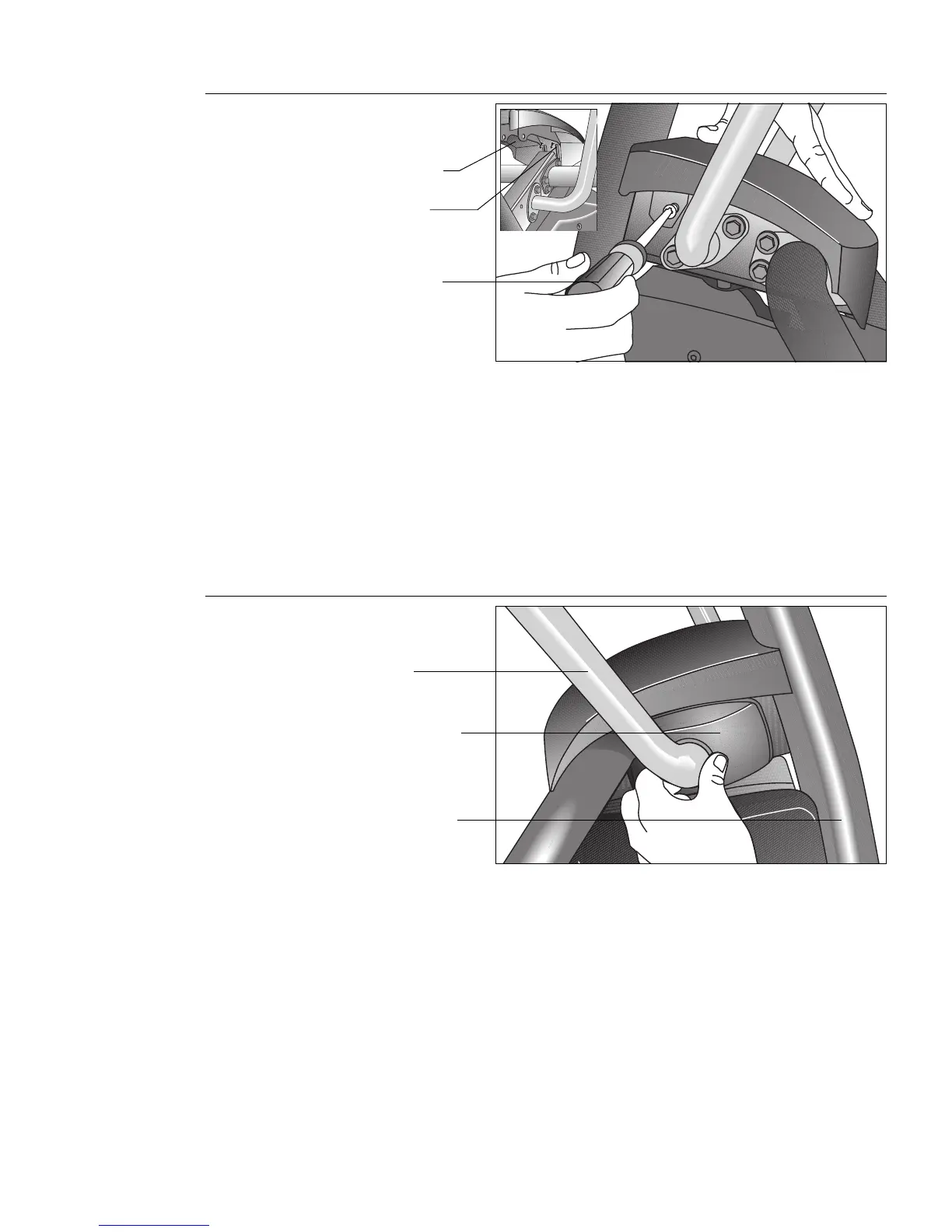

Diagram 18 Attach the
bracket cover.
27. Attach the bracket cover. Diagram 18. Take the following steps to attach the
bracket cover over the upright support bracket.
Note: Protrusions inside the front of the bracket cover help secure the cover to
the upright support. See Diagram 18.
a. Position the bracket cover so that the protrusions inside the cover “latch”
onto the front of the upright support bracket.
b. Lower the bracket cover and align the mounting holes.
c. Reinsert the two screws, removed in step 21, and tighten securely. Do not
overtighten or you may inadvertently crack the plastic mounts.
Bracket cover
Tighten bracket
cover screws.
CAUTION: Do not overtighten the screws
or you may inadvertently cause stress
cracks in the plastic.
Diagram 19 Slide the handrail
boot over the
fasteners.
Handrail
Correct orientation
of handrail boot.
28. Slide boot over the lower handrail mounts. The boot is asymmetrical. Position it
so that the longer side faces the upright support. See Diagram 19.
Protrusions
inside cover
Upright support

Precor EFX5.23 Specifications

Power

voltage	120 V
frequency	50/60Hz
current	4.0 Amps

Incline and Programs

incline range	13 to 35 degrees
manual course	Included
cross training interval course	Included

Weight and Dimensions

length	79 inches (201 cm)
width	32 inches (81 cm)
height	63 inches (160 cm)
weight	183 lbs. (82 kg)
