1 2 3 4 5 6
4. Attach Rotating Arm and
Handles
A. Attach the Rotating Arm to the Upright Flats using
two ¾-inch buttonhead bolts
Tighten with 6-mm Allen wrench.
B. Attach the Handles to the Seat Upright using
two 3¼-inch bolts
four washers
two locknuts
Wrench tighten.

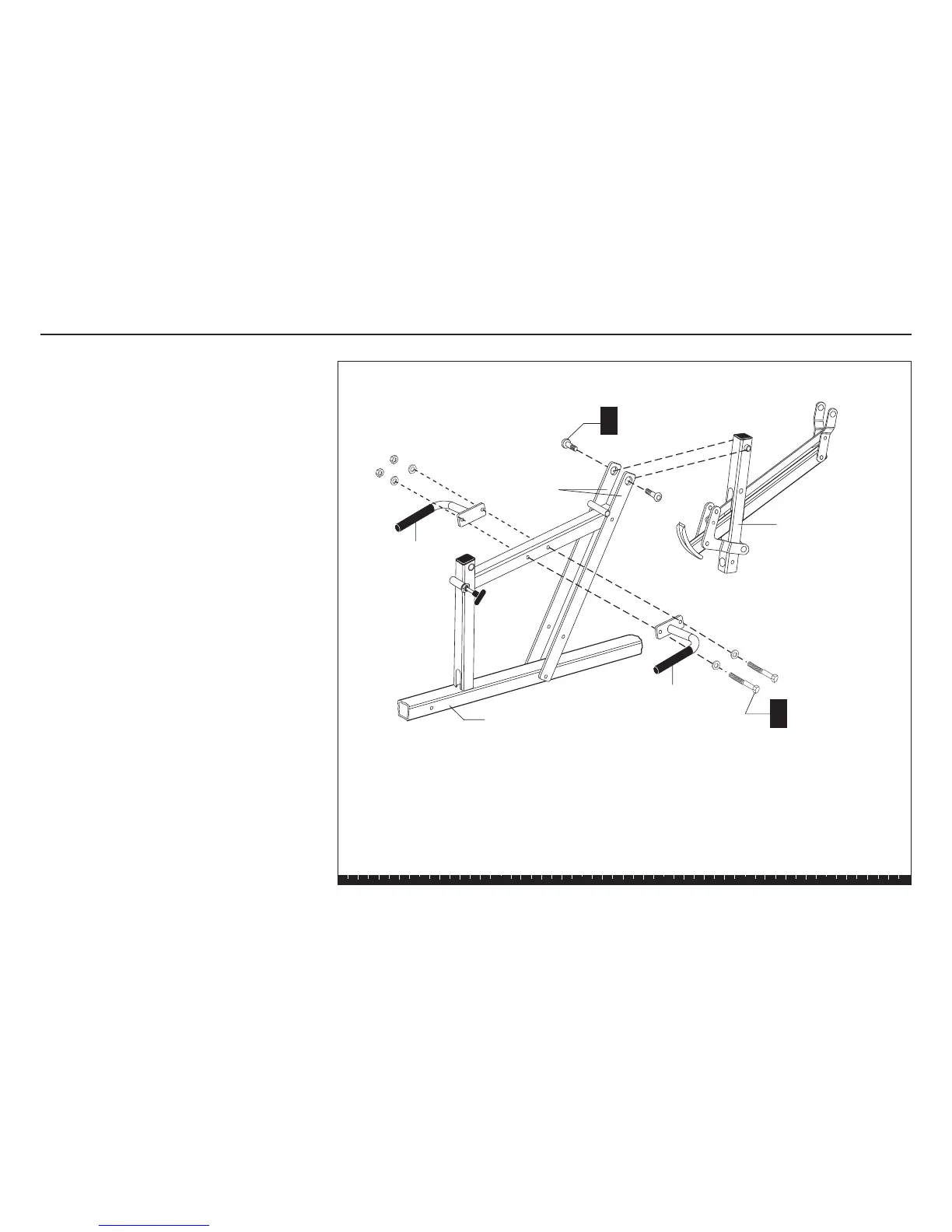

Step 4. Attach Rotating Arm and Handles
A
2 - ¾" buttonhead bolts
B
2 - 3¼" bolts
4 - washers
2 - locknuts
Upright Flats
Handle
Seat Upright
Rotating Arm
Handle
