S3.25 Assembly and Maintenance Guide
page 29
1 2 3 4 5 6
15. Attach Leg Curl Cables to
Lower Pulley Bracket
A. Wrap Cable 44376-102 around a 3½-inch pulley so
that the U end of the Cable faces up toward the
Cable Tree. Attach it and a Cable Retainer to the
left hole of the Lower Pulley Bracket at the base of
the Rear Upright using
one 2-inch bolt
two washers
one locknut
B. Wrap Cable 44375-103 around a 3½-inch pulley so
that the U end of the Cable faces up toward the
Cable Tree. Attach it and a Cable Retainer to the
back side of the middle hole of the Lower Pulley
Bracket using
one 2-inch bolt
two washers
one locknut
C. Wrench tighten.

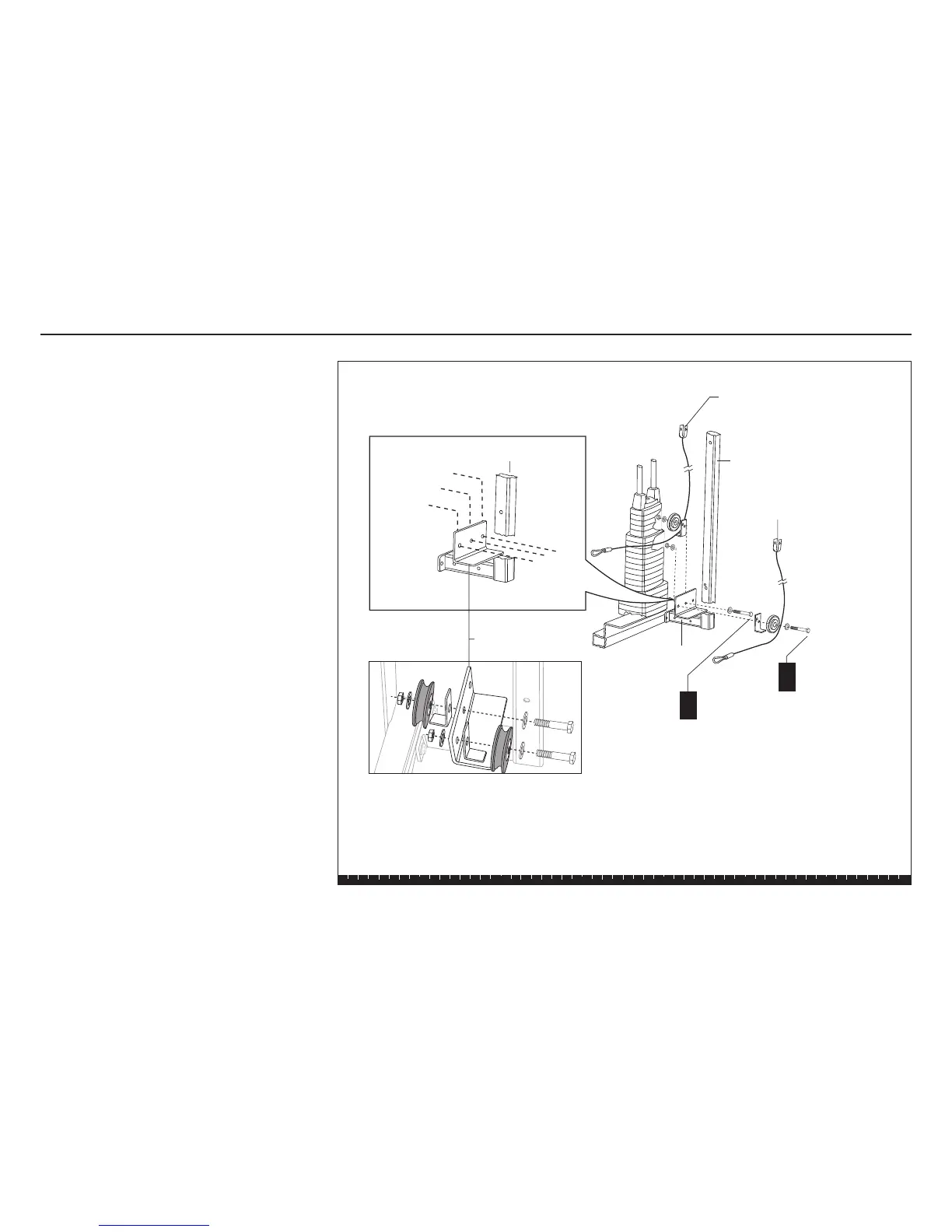

Step 15. Attach Leg Curl Cables to Lower Pulley Bracket
Rear Upright
Lower Pulley Bracket
1 - 3½" pulley
1 - cable retainer
1 - 2" bolts
2 - washers
1 - locknut
A
Cable 44375-103 goes to
the Cable Tree
Cable 44376-102 goes to
the Cable Tree
Rear Upright
Right Hole
Center Hole
Left Hole
Lower Pulley
Bracket
1 - 3½" pulley
1 - cable retainer
1 - 2" bolts
2 - washers
1 - locknut
B
