S3.25 Assembly and Maintenance Guide
page 27
1 2 3 4 5 6
14. Feed Cable From Cable Tree
A. Feed the Spring Clip end of Cable 44371-103 under
a 4½-inch pulley, through the lower pulley window of
the Main Upright, and through the upper pulley
window of the Main Upright. Attach the pulley to the
lower pulley window using
one 2¾-inch bolt
two step spacers
one locknut
B. Wrap the cable over a 4½-inch pulley and attach it
to the upper pulley window using
one 2¾-inch bolt
two step spacers
one locknut
C. Feed the Cable over one 4½-inch pulley and attach
it to the upper hole in the Press Arm Flats using
one 2-inch bolt
two washers
one locknut
Finger tighten.
D. Ensure the Cable wraps around the pulley and
then feed the Cable back through the Press Arm
Flats. Wrap the Cable over and around one 4½-
inch pulley and attach it to the Prestretch Tube
using
one 2-inch bolt
two washers
one cam washer
one locknut
Finger tighten.

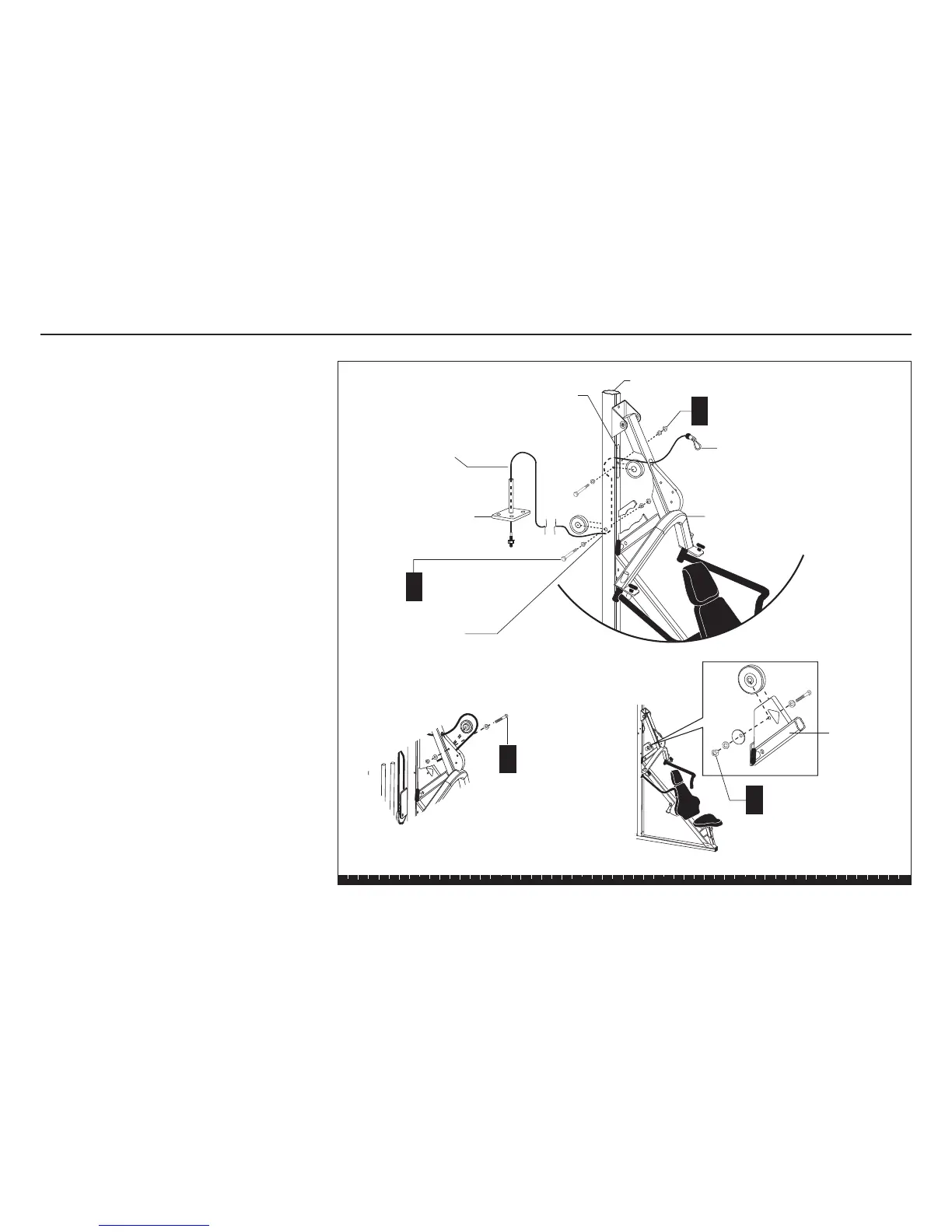

Step 14. Feed Cable From Cable Tree
1 - 4½" pulley
1 - 2¾" bolt
2 - step spacers
1 - locknut
Main Upright
Press Arm
Lower Pulley
Window
A
1 - 4½" pulley
1 - 2¾" bolt
2 - step spacers
1 - locknut
B
Upper Pulley
Window
C
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
D
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - cam washer
1 - locknut
Cable Tree
Cable 44371-103
Prestretch
Tube
Spring Clip
