S3.25 Assembly and Maintenance Guide
page 15
1 2 3 4 5 6
6. Assemble Leg Curl Seat
A. Attach the Backpad Support Tubes to the Seat
Upright using
one 5½-inch bolt
two ½-inch washers
one ½-inch locknut
Note: The tube with the Selector Pivot Flat is
nearest the Weight Stack. Also, the hole in the
other support tube is positioned closest to the
Backpad Pop Pin, as shown.
Wrench tighten, and then loosen until the support
tube can fall freely without wobbling.
CAUTION: Keep your hands clear to avoid
injury when the support tube falls.
B. Align the Selector Pivot Flat with the Backpad Pop Pin.
C. Attach the Seat Pad to the Seat Upright using
one 7-inch bolt
one ½-inch locknut
Finger tighten.

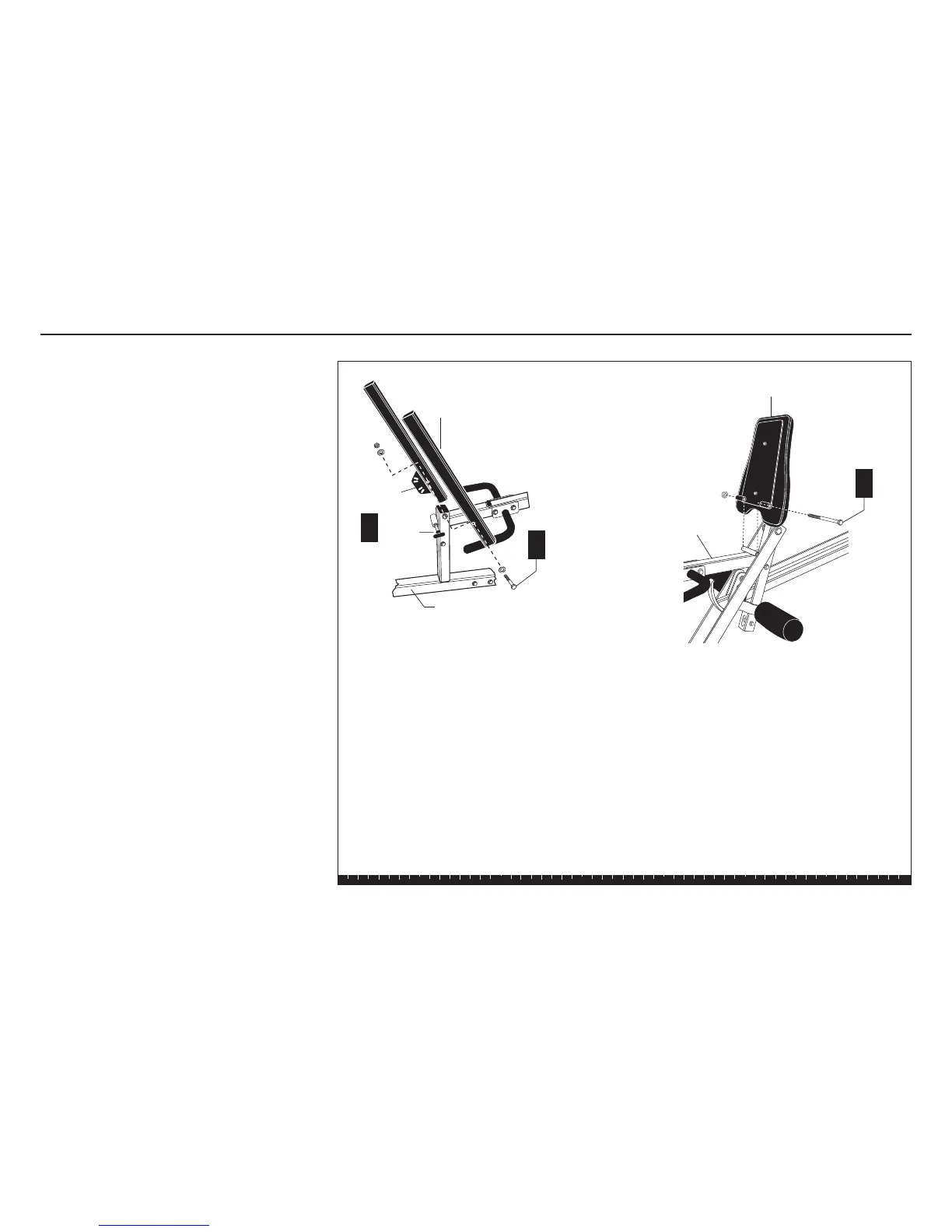

Step 6. Assemble Leg Curl Seat
A
C
Seat Upright
1 - 7" bolt
1 - ½" locknut
Seat Pad
1 - 5½" bolt
2 - ½" washers
1 - ½" locknut
Backpad Support
Tubes
Seat Upright
Selector
Pivot Flat
Backpad
Pop Pin
B
To Next Page
