S3.25 Assembly and Maintenance Guide
page 16
1 2 3 4 5 6
D. Attach the lower section of the Backpad to the
lower hole of the right Backpad Support Tube using
two 3-inch bolt
two washers
Finger tighten.
E. Attach the Leg Curl Handle to the holes at the top of
the Backpad Support Tubes using
two 1-inch bolts
two washers
F. Attach the Backpad Support Tubes to the top of the
Backpad using
two 3-inch bolts
two washers
G. Attach the top portion of the Leg Curl Handle to the
holes at the top and bottom of the Headrest using
two 1¼-inch bolts
two washers
Note: The Handles should point down when fastened.
H. Wrench tighten all bolts from this step.
If any parts remain, set off to the side for future steps.

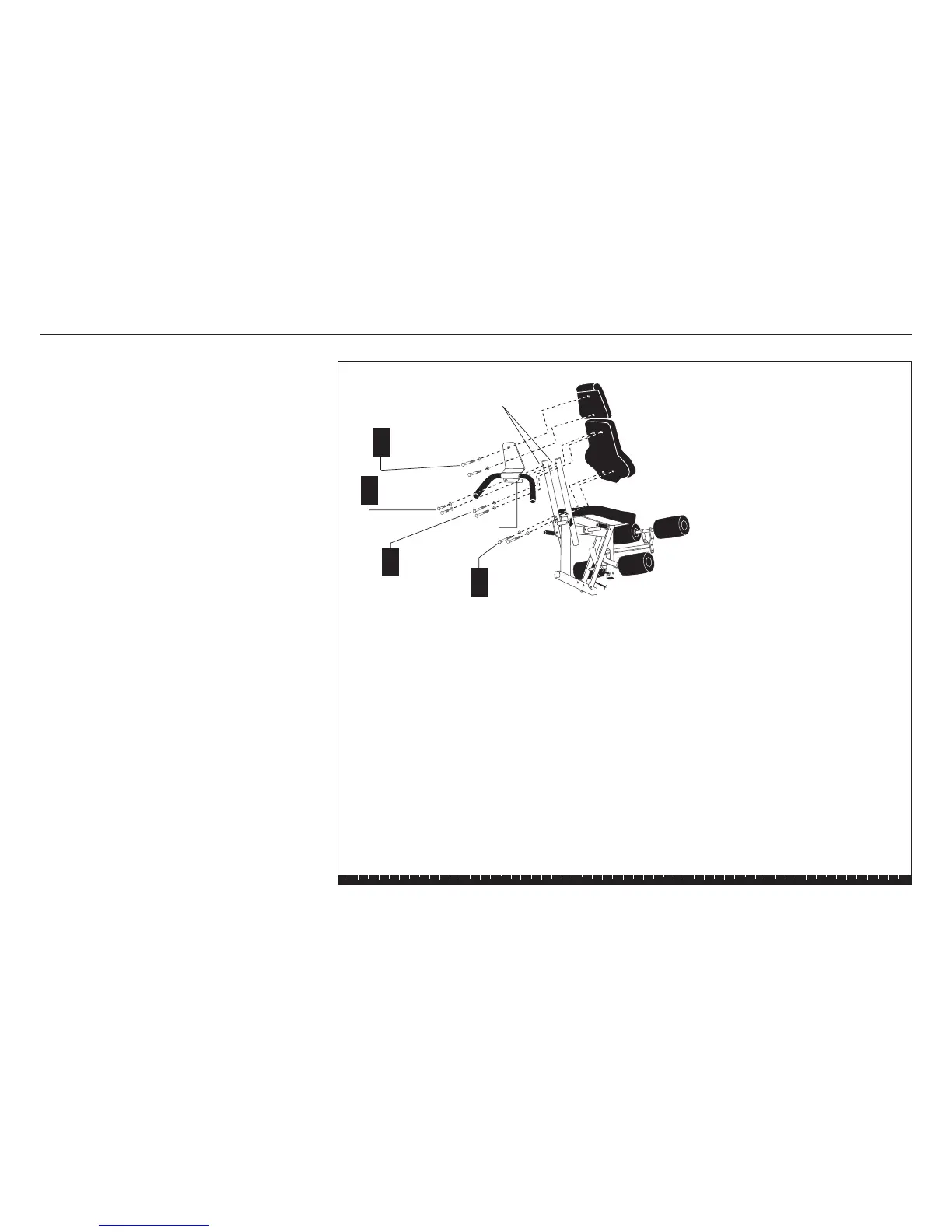

Step 6. Assemble Leg Curl Seat, Continued
D
G
2 - 1¼" bolts
2 - washers
2 - 3" bolt
2 - washers
Leg Curl
Handle
Backpad
Backpad Support
Tubes
Headrest
E
2 - 1" bolts
2 - washers
F
2 - 3" bolts
2 - washers
