Precor move beyond S3.25 User Manual

S3.25 Assembly and Maintenance Guide
page 9
1 2 3 4 5 6

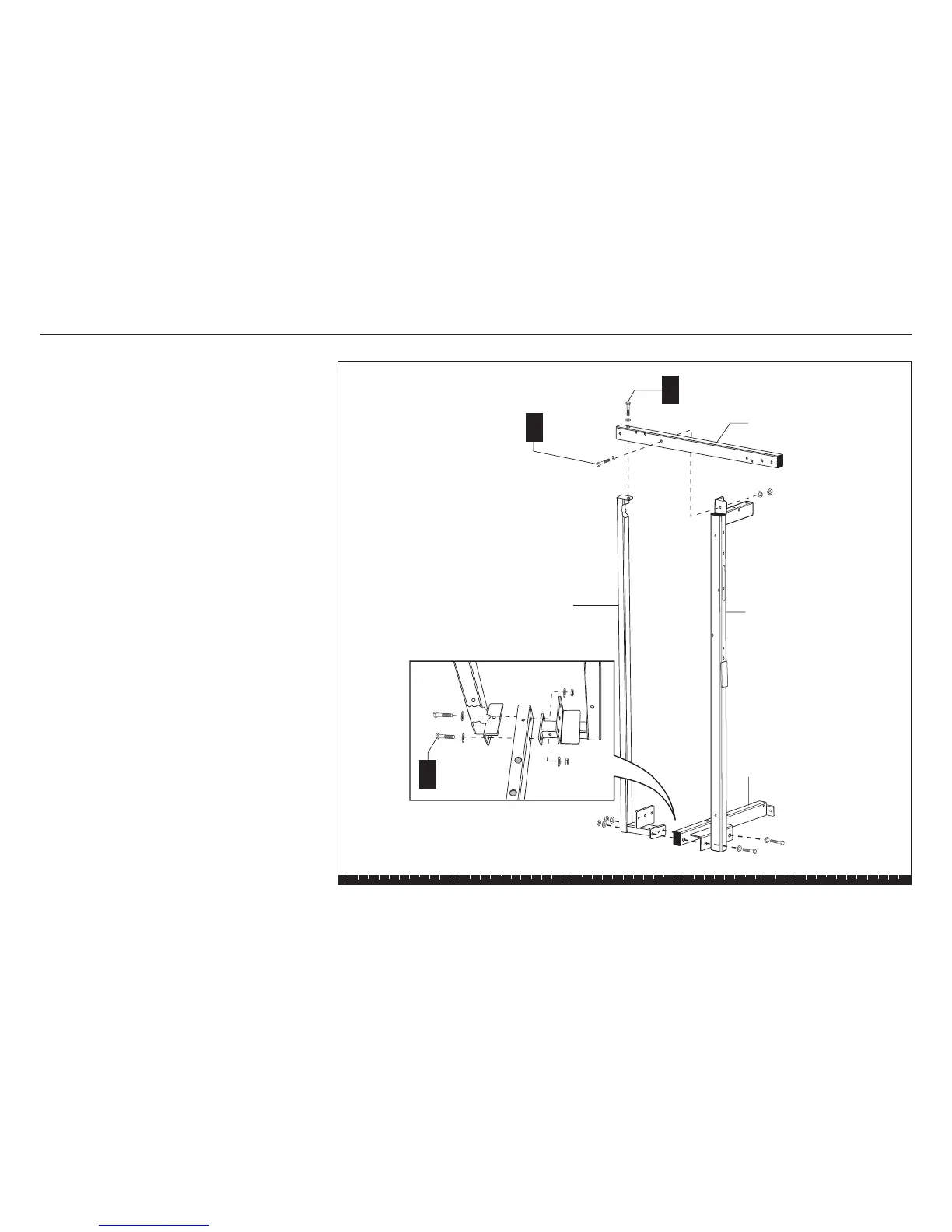

Step 1. Attach Rear Upright to Main Upright
1. Attach Rear Upright to
Main Upright
Begin the assembly by placing the Rear Upright and
Main Upright on the floor.
A. Attach the Rear Upright through the Main Upright
Base to the Main Upright using
two 3¼-inch bolts
four washers
two locknuts
Finger tighten.
B. Attach the Top Beam to the Rear Upright using
one 4-inch bolt
two washers
one locknut
Finger tighten.
C. Attach the Top Beam to the Main Upright using
one 3-inch bolt
two washers
one locknut
Finger tighten.
D. With someone helping you, lift the structure into
position. Place the structure where you intend to
keep it permanently.
2 - 3¼" bolts
4 - washers
2 - locknuts
Main Upright Base
A
Rear Upright
Main Upright
Top Beam
1 - 3" bolt
2 - washers
1 - locknut
C
1 - 4" bolt
2 - washers
1 - locknut
B
