S3.25 Assembly and Maintenance Guide
page 39
1 2 3 4 5 6
D. Reassemble the Cap Plate, Selector Stem, and
Cable Clamp.
E. Test the movement of the Selector Stem inside the
Weight Stack.
F. If the Selector Stem continues to contact the
plates, repeat steps A through E until the Selector
Stem slides through the Weight Stack without
contacting the plates.
Backward Angle Adjustment
When the Selector Stem angles backward (away from
the seat) and contacts the inside of the Weight Stack
during use, adjust it by taking these steps:
Caution: This adjustment requires two people.
A. Completely disassemble the Cap Plate, Selector
Stem, and Cable Clamp.
B. Thread Allen head set screw into the hole closest
to the top of the U end of the Cable and turn
clockwise until the end of the screw is flush with
the inside surface of the clamp.
C. Turn the set screw clockwise another one-half turn
(see diagram).
D. Reassemble the Cap Plate, Selector Stem, and
Cable Clamp.
E. Test the movement of the Selector Stem inside the
Weight Stack.
F. If the Selector Stem continues to contact the
plates, repeat steps A through E until the Selector
Stem slides through the Weight Stack without
contacting the plates.

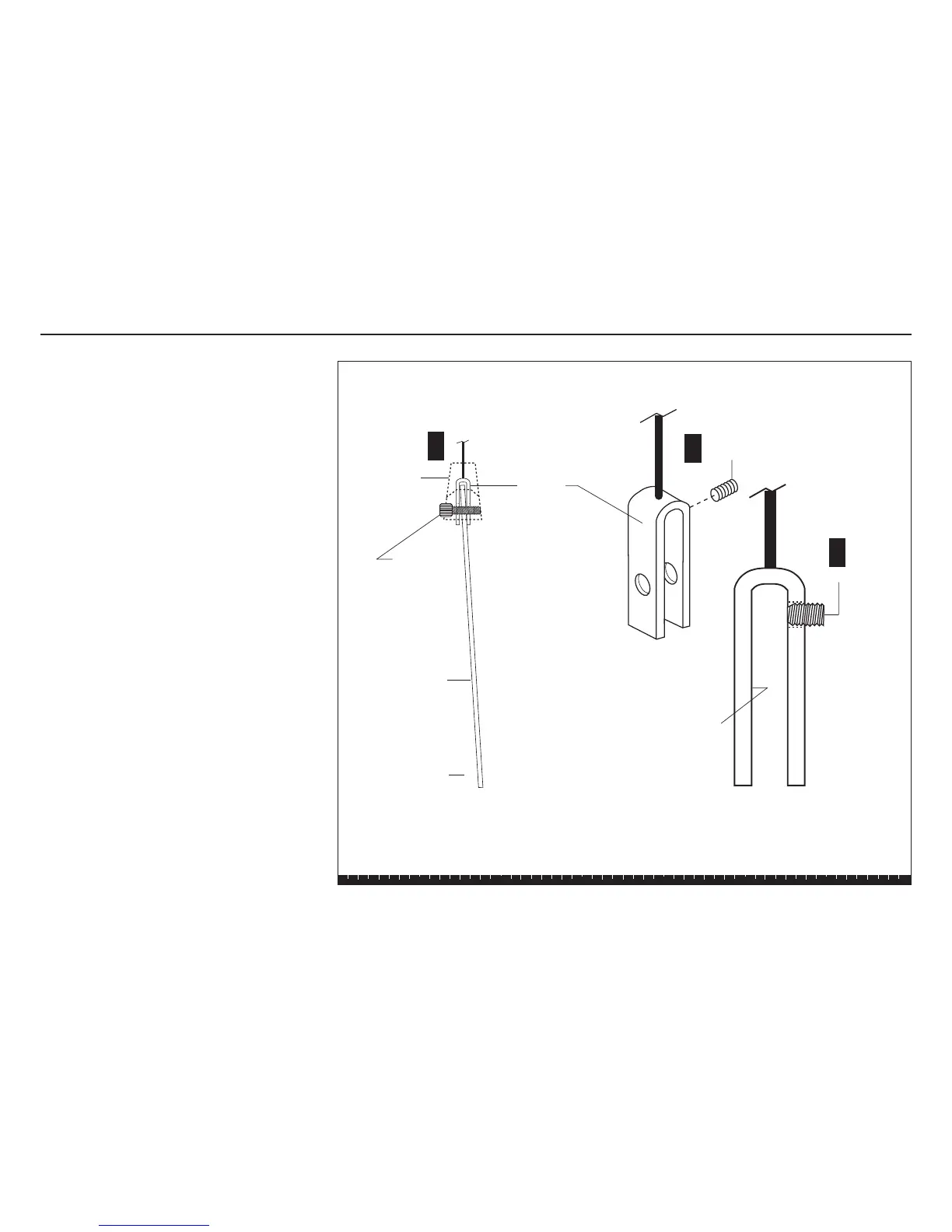

Step 2. Selector Stem Adjustments, Continued
Backward Angle
Selector Stem
▲
Cap Plate
1 ½" Socket
Cap Bolt
Allen head
set screw
Set screw
U Bracket
Inside
surface
B
B
A
Backward Angle Adjustment
