S3.25 Assembly and Maintenance Guide
page 31
1 2 3 4 5 6
17. Feed Top Cable 44376-102
A. Attach Cable 44376-102 to the Rotating Arm using
one 2¾-inch bolt
two step spacers
one locknut
B. Wrap the Cable around a 4½-inch pulley and
attach it and a cable retainer to the Upright Flats
using
one 4½-inch bolt
two washers
one ³⁄₈-inch barrel spacer
three ½-inch barrel spacers
one locknut

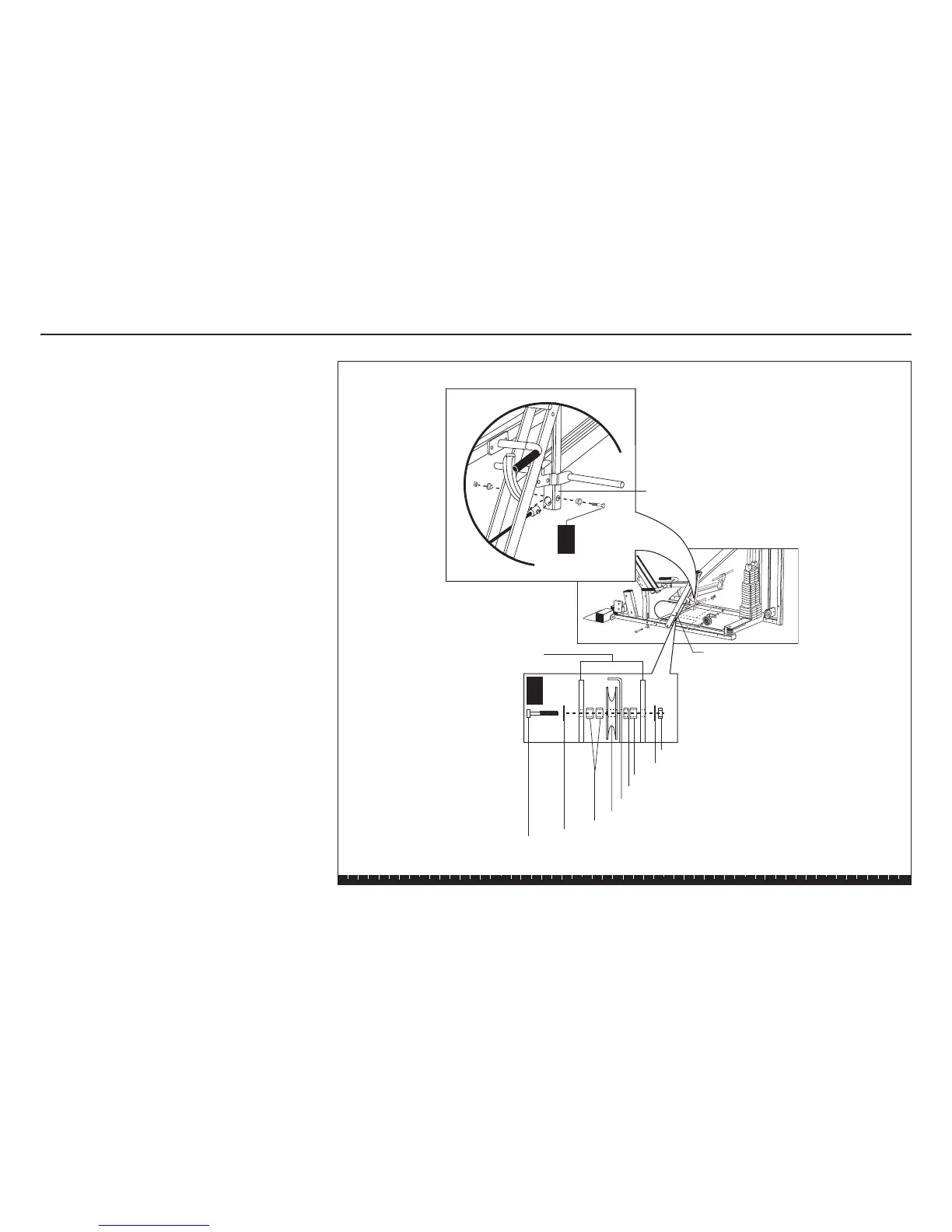

Step 17. Feed Top Cable 44376-102
1 - 2¾" bolt
2 - step spacers
1 - locknut
A
1 - locknut
B
1 - 4½" bolt
1 - washer
1 ³⁄₈" barrel spacer
2 - ½" barrel spacers
1 - ½" barrel spacer
1 - washer
Upright Flats
Upright Flats
1 - 4½" pulley
1 - cable retainer
Rotating Arm
