16. Attach Leg Curl Cables to
Seat Upright
A. Attach the Pulley Cover to the Main Upright Base
using
one 2¾-inch bolt (without blue tape)
two washers
one locknut
Finger tighten.
B. Place two 3½-inch pulleys on top of each other on
the Seat Extension.
C. Wrap Cable 44375-103 around the bottom pulley at
the end of the Seat Extension between the pulley
and the retainer pin.
D. Wrap Cable 44376-102 around the top pulley at the
end of the Seat Extension between the pulley and
the retainer pin.
Important: Be sure to use the 2¾-inch bolt
wrapped with the blue tape in step E.
E. Attach using
one 2¾-inch bolt (with blue tape)
one washer
F. Use the remaining hole in the Pulley Cover to
attach the Pulley Cover to the Main Upright Base
using
one 2¾-inch bolt
two washers
one locknut
Finger tighten.
G. Wrench tighten all bolts.

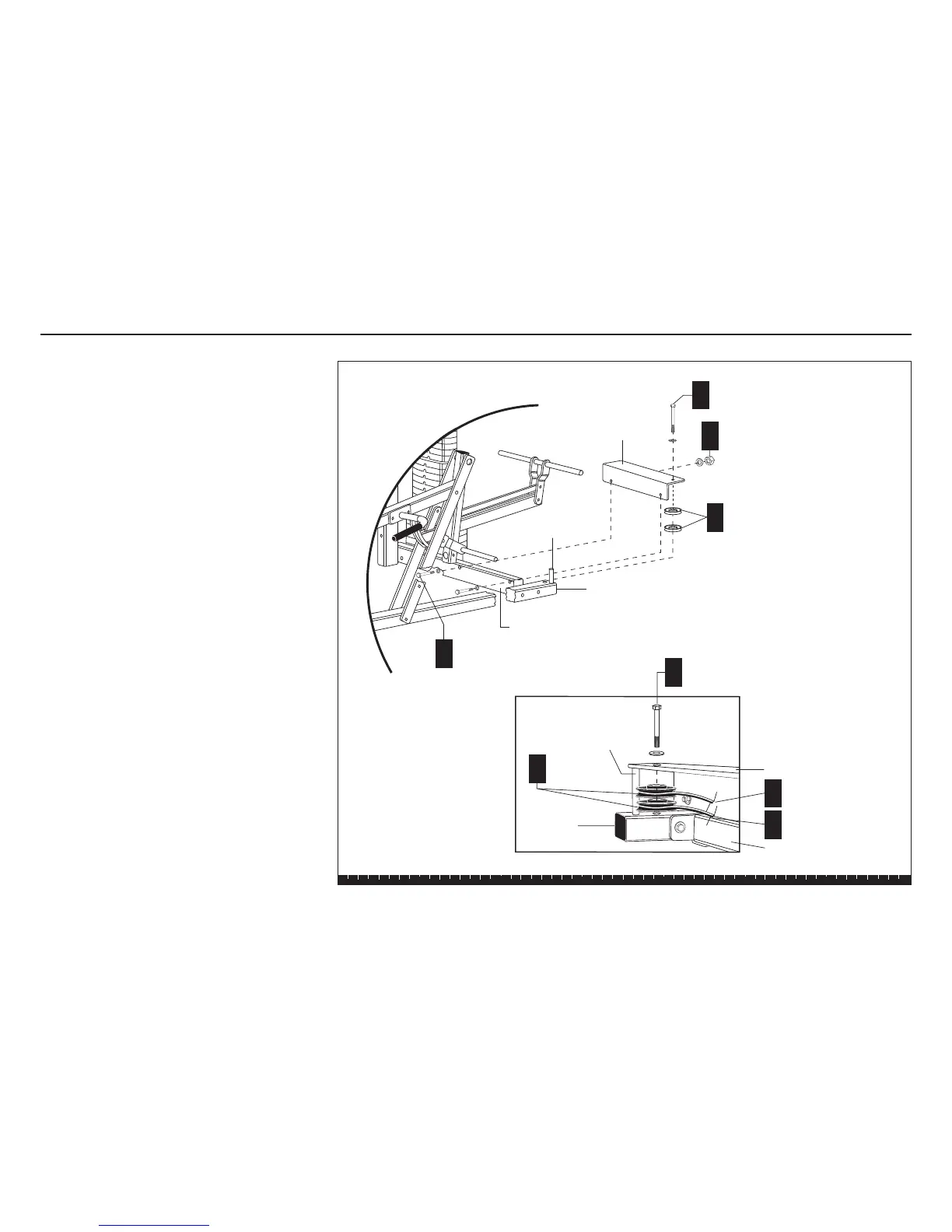

Step 16. Attach Leg Curl Cables to Seat Upright
Main Upright Base
Seat Extension
Pulley Cover
1 - 2¾" bolt (without blue tape)
2 - washers
1 - locknut
A
1 - 2¾" bolt (wrapped with blue tape)
1 - washer
E
1 - 2¾" bolt
2 - washers
1 - locknut
F
Retainer Pin
Retainer Pin
Seat
Extension
Pulley Cover
Cable 44376-102
Cable 44375-103
Main Upright Base
E
B
1 - 2¾" bolt (with blue tape)
1 - washer
2 - 3½" pulleys
D
C
B
2 - 3½" pulleys
