8. Attach Press Arm Assembly
CAUTION: This step requires two people. Do not
pinch yourself between the Press Arm and the
Prestretch Tube.
A. Attach the Press Arm Assembly to the Main
Upright using
two 4-inch bolts
four washers
two locknuts
Wrench tighten.
B. Check the alignment of the Press Arm
Assembly and Prestretch Tube. Wrench tighten.
C. Use the supplied allen wrench and tighten the set
screws.

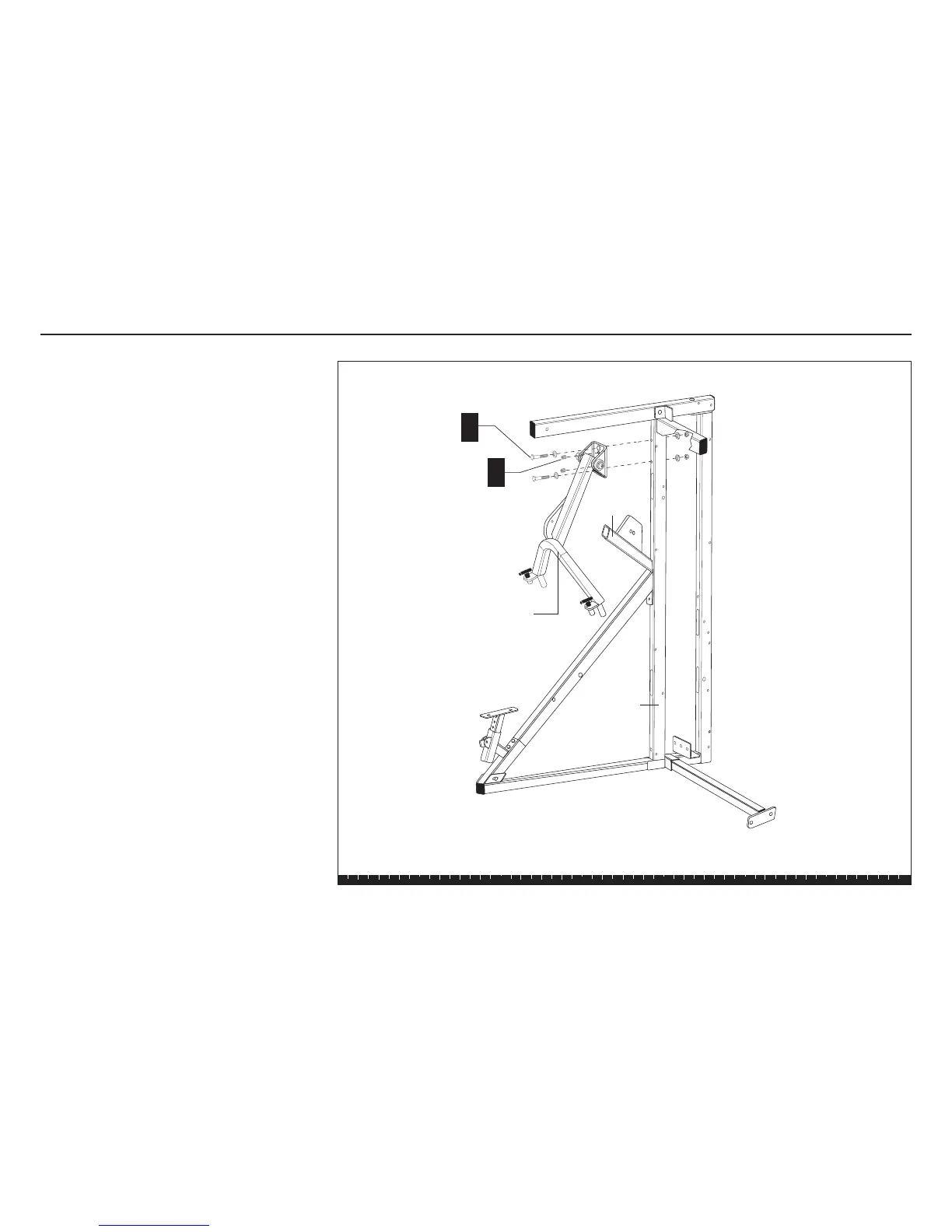

Step 8. Attach Press Arm Assembly
Press Arm
Assembly
2 - 4" bolts
4 - washers
2 - locknuts
A
Prestretch
Tube
Main Upright
2 - set screws
C
