18. Feed Bottom Cable
44375-103
A. Feed Cable 44375-103 through the Upright Flats,
through the Seat Upright Window, and into the
Pulley Window at the end of the Seat Upright.

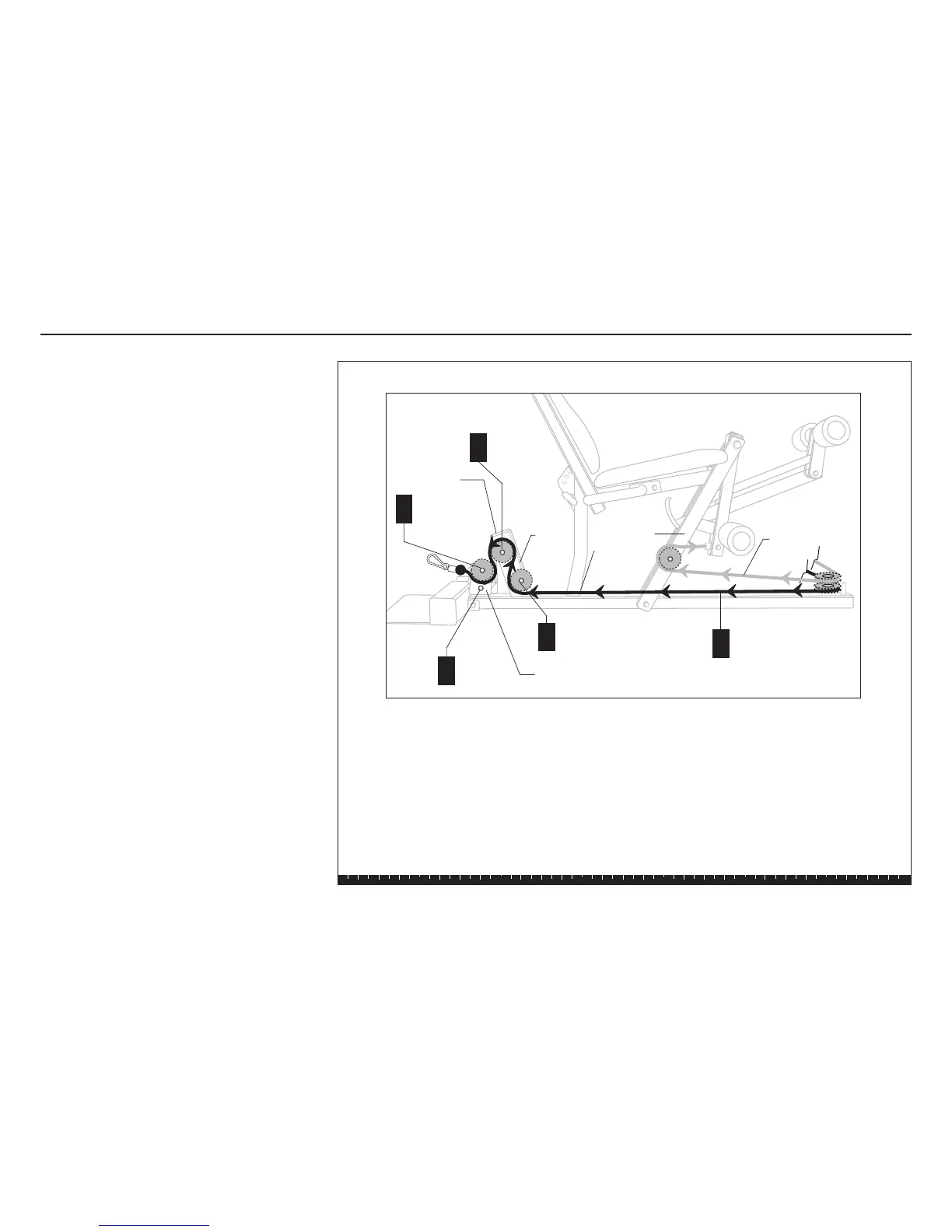

B. Review the diagram and feed the Cable around one
3½-inch pulley. Attach the pulley using
one 2¾-inch bolt
two step spacers
one locknut
C. Wrap the Cable over a 3½-inch pulley and attach
it using
one 2¾-inch bolt
two step spacers
one locknut
Finger tighten.
D. Insert a 2-inch bolt as a retainer pin through the
base of the End Pulley Bracket. Attach it using
two washers
one locknut
E. Feed the Cable between the retainer pin and hole
in the End Pulley Bracket. Attach the 3½-inch
pulley to the End Bracket using
one 2-inch bolt
two washers
one locknut
Finger tighten.
Step 18. Feed Bottom Cable 44375-103
A
Cable 44375-103
C
E
B
1 - 3½" pulley
1 - 2¾" bolt
2 - step spacers
1 - locknut
1 - 3½" pulley
1 - 2" bolt
2 - washers
1 - locknut
1 - 3½" pulley
1 - 2¾" bolt
2 - step spacers
1 - locknut
Cable 44376-102
Pulley Bracket
Seat Upright
Window
D
1 - 2" bolt
2 - washers
1 - locknut
Upright Flats
Pulley
Window
End Pulley Bracket
