Precor move beyond S3.25 User Manual

S3.25 Assembly and Maintenance Guide
page 14
1 2 3 4 5 6
5. Attach Roller Pads
A. Insert the Leg Curl Roller Pad Rod.
B. Slide the Leg Curl Roller Pads on the Rod. Center
the Pads on the Rod. Insert End Caps into the end
of the Rod.
C. Secure the Rod in place from below using two hex
set screws.
D. Repeat steps A through C for the Leg Extension
Roller.

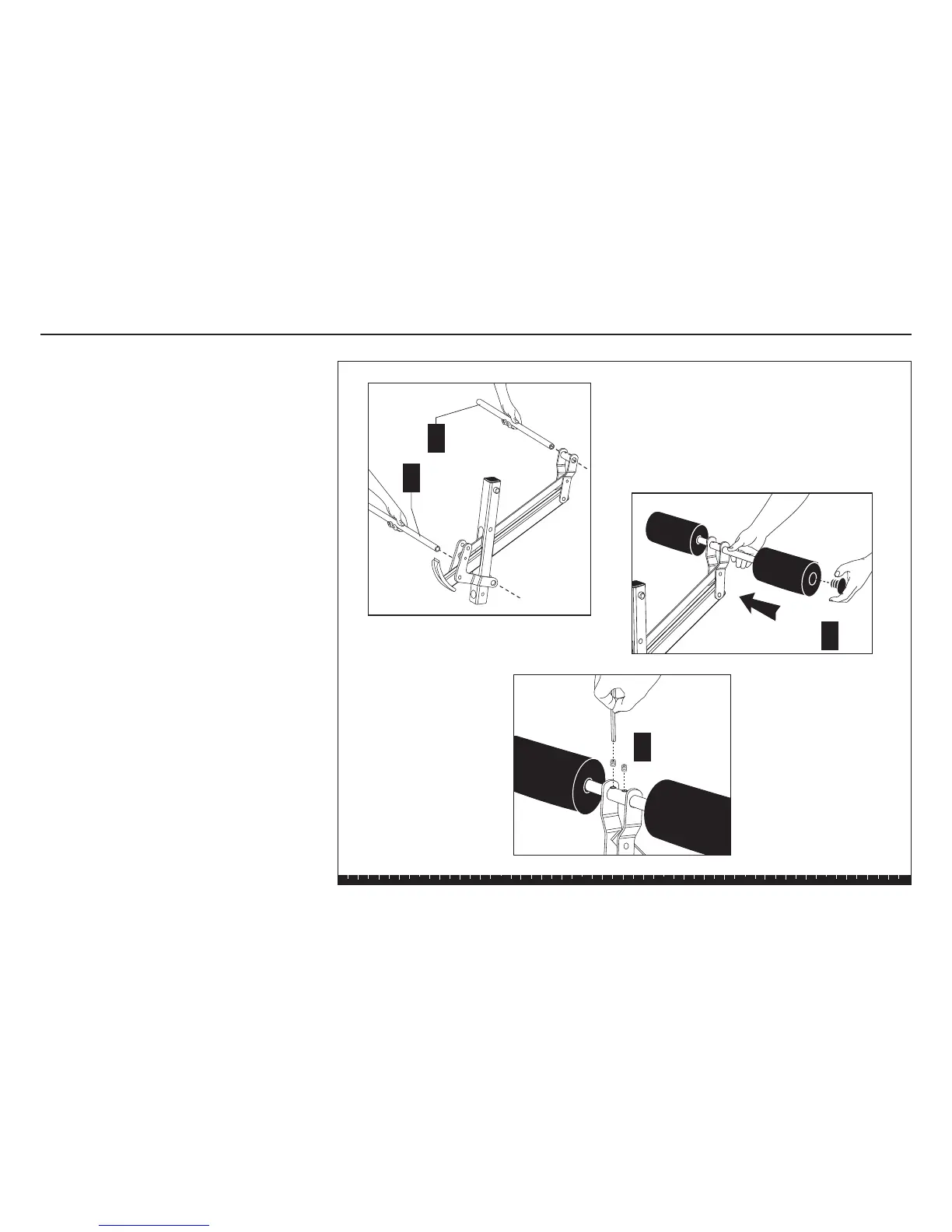

Step 5. Attach Roller Pads
A
B
Leg
Extension
Roller Pad
Rod
Leg Curl
Roller
Pad Rod
C
2 - hex set
screws
D
