20. Attach Leg Curl Cables to
Cable Tree
A. Remove the U end of Cable 44376-102. Insert the
Cable in one of the corner holes of the Cable Tree.
Reattach the U end of the Cable with surgical tubing.
B. Remove the U end of Cable 44375-103. Insert the
Cable in the opposite corner of the Cable Tree.
Reattach the U end of the Cable with surgical tubing.
Note: If you are assembling the Leg Press Option
simultaneously, go to Step 5 in the S3.25 Leg Press
Option Assembly Instructions now.

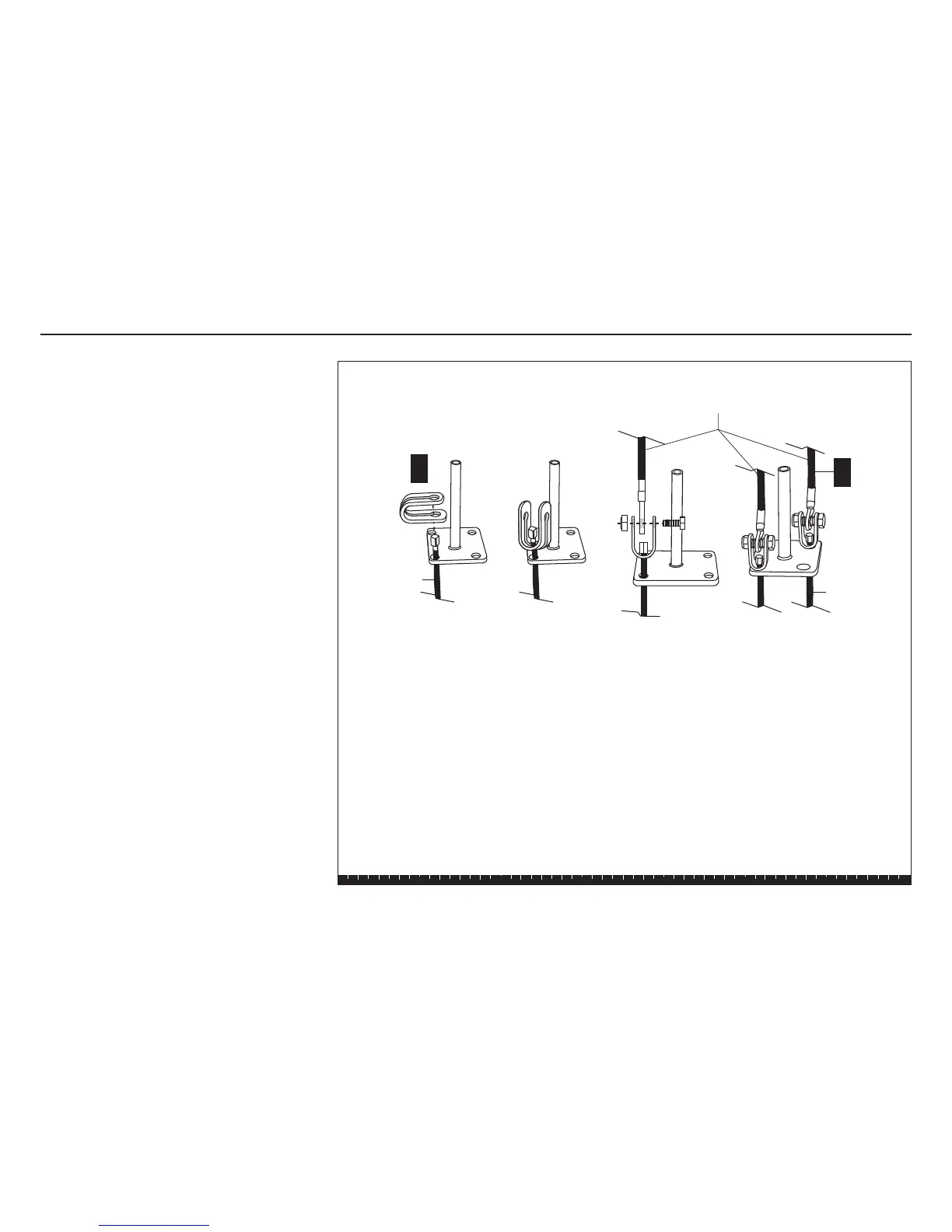

Step 20. Attach Leg Curl Cables to Cable Tree
Surgical tubing
A
B
Cable 44376-102
Cable 44375-103
