E. In the middle hole on the Press Arm Flats, make a
retainer pin using
one 2-inch bolt
two washers
one barrel spacer
one locknut
Finger tighten.
F. Wrap the Cable over one 3½-inch pulley and attach
it to the bottom hole on the Press Arm Flats using
one 2-inch bolt
two washers
one locknut
G. Wrench tighten. Do not overtighten.
H. Attach two large floating Pulley Plates (found in
Box 2) to one 4½-inch pulley using
one 2-inch bolt
two washers
one locknut
Finger tighten.
I. Place the pulley on the cable loop from Cable
44370-103.
J. Loop center Cable 44371-103 from the Cable Tree
around a 4½-inch pulley and attach it to the
remaining holes in the floating Pulley Plates using
one 2-inch bolt
two washers
one locknut
K. Wrench tighten.

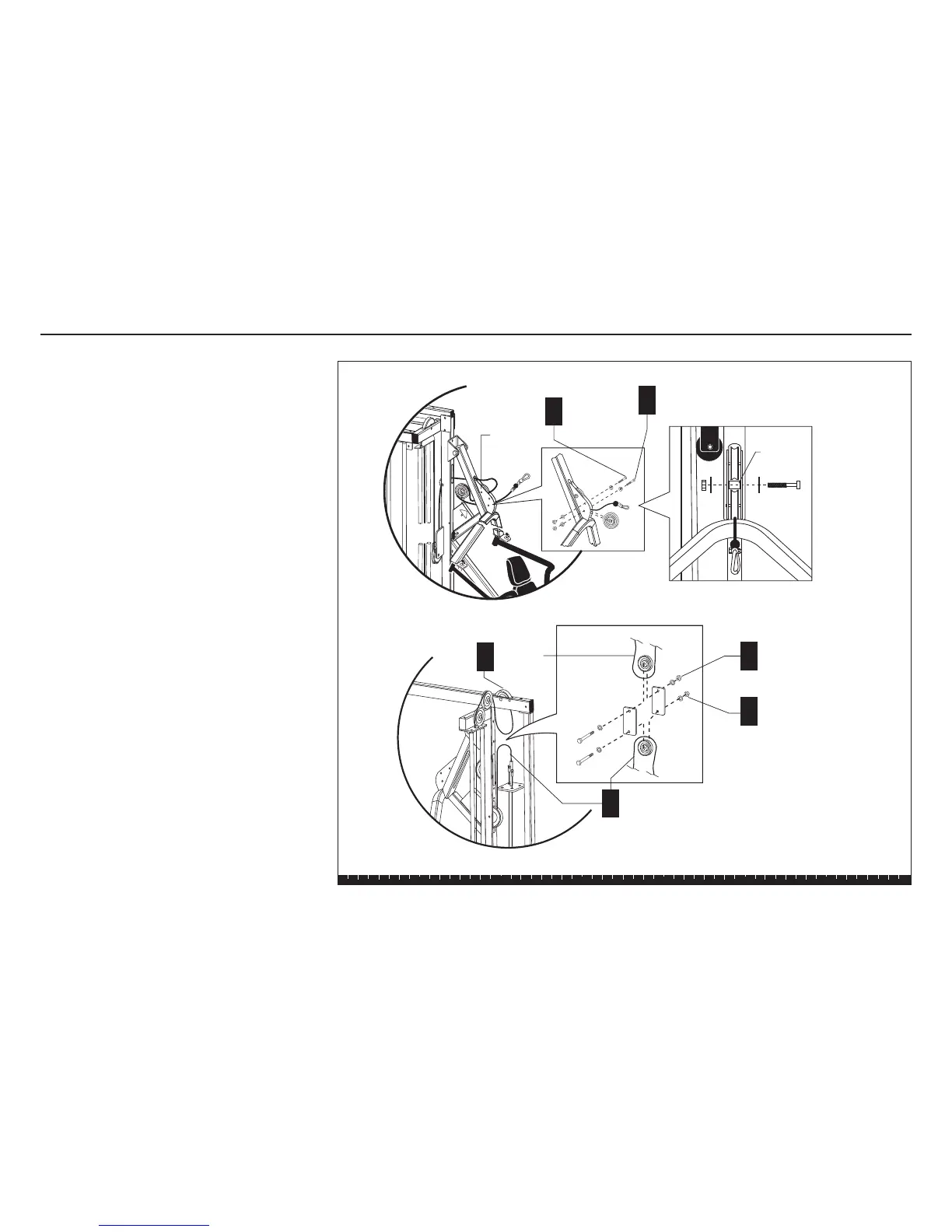

Step 14. Feed Cable From Cable Tree, Continued
E
1 - 2" bolt
2 - washers
1 - barrel spacer
1 - locknut
F
1 - 3½" pulley
1 - 2" bolt
2 - washers
1 - locknut
H
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
J
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
J
44370-103
44371-103
I
Barrel
Spacer
Press Arm
Flats
