S3.25 Assembly and Maintenance Guide
page 25
1 2 3 4 5 6
G. Insert the Selector Stem in the Weight Stack with
the threaded hole at the top. Hold the Selector
Stem with several holes above the Cap Plate.
Insert the Weight Pin to suspend the Selector
Stem. Place the loop end of the Weight Pin
Lanyard into the U end of the Cable. Align the U
end of the Cable, the top of the Selector Stem, and
the Cap Plate. Attach using
one 1½-inch socket cap bolt
H. Wrench tighten. Remove the Weight Pin and lower
the cap plate.

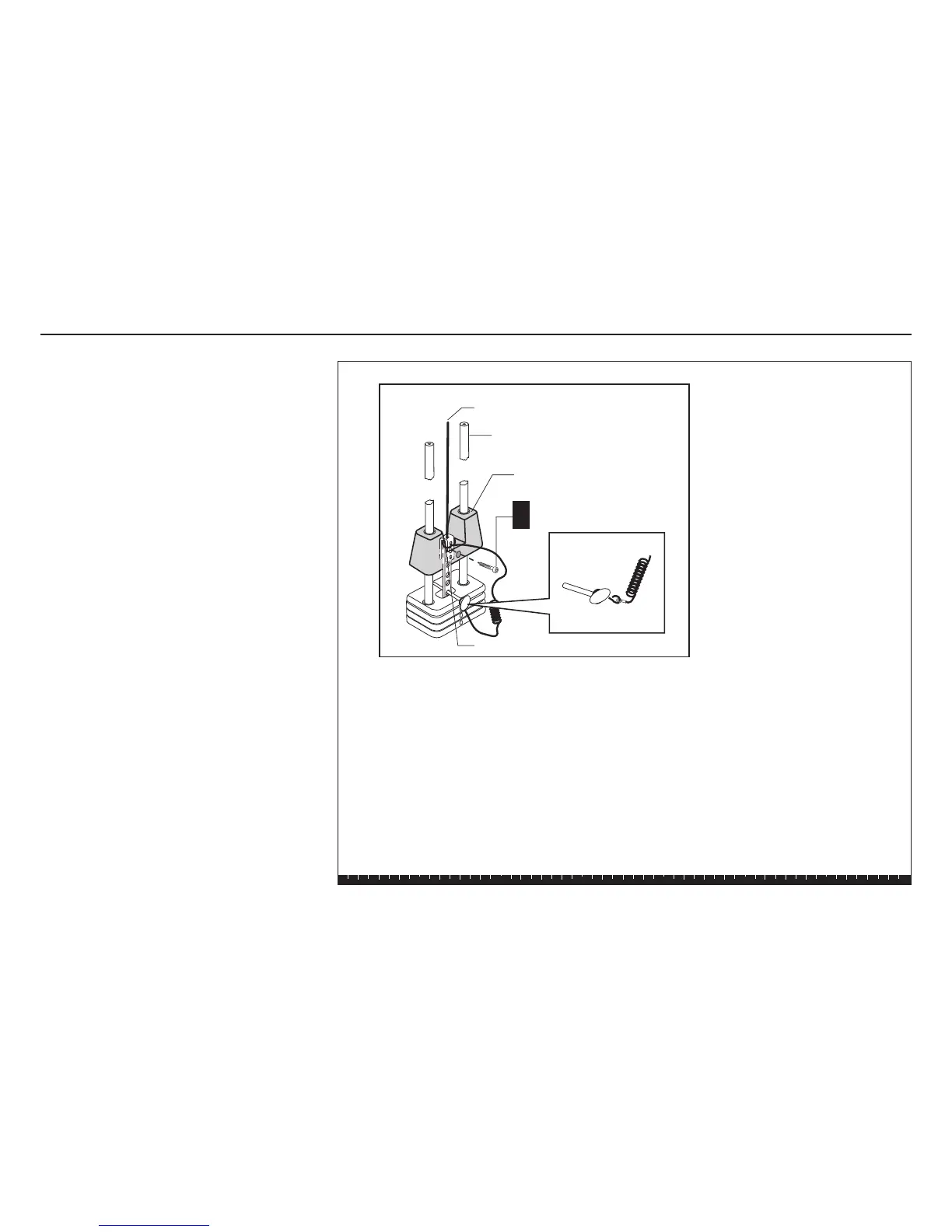

Step 12. Feed Upper Cable, Continued
G
1 - 1½" socket cap bolt
Guide Rods
Cap Plate
Weight Pin
Selector Stem
Cable 44370-103
To Next Page
