2.

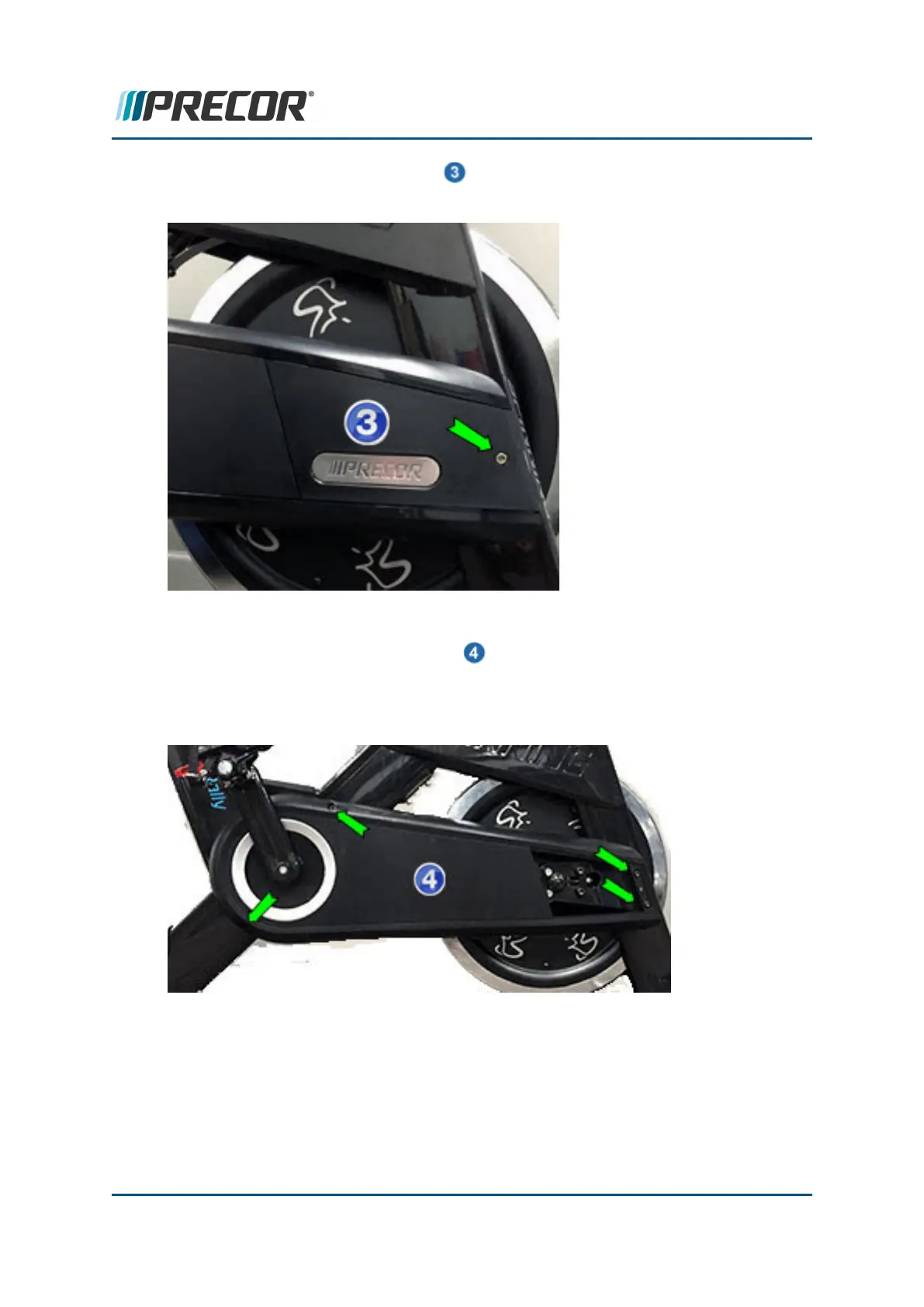

Remove the front guard access panel by removing the one fastener using a 5 mm
hex key. Retain part(s) and/or fastener(s) for installation.
Front Belt/Chain Panel guard cover removal instructions
3.
Remove the front belt/chain guard cover by removing the fasteners (4x) using a 5
mm hex key. The back cover bolts need to be removed to remove the front cover. Care-
fully slide the front cover over the pedal crank arm to remove. Retain part(s) and/or
fastener(s) for installation.
Installation Instructions
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 20
5 Replacement Procedures
Belt/Chain Guard Cover Replacement
