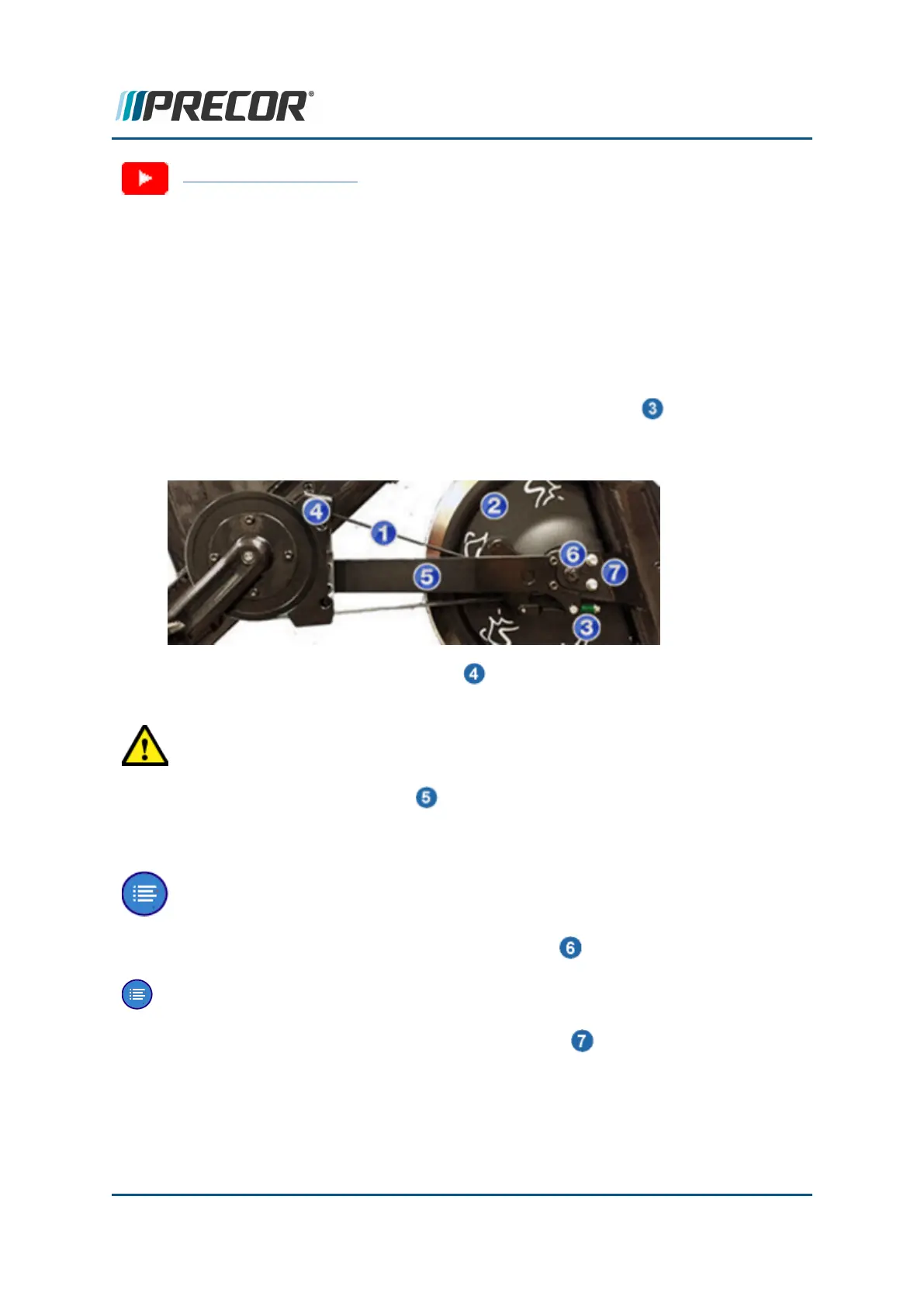

Belt Drive Replacement
Procedure
Review entire procedure before starting.
Removal instructions
1. Remove front and rear belt guard covers, see "Belt/Chain Guard Cover Replacement"
on page19.
2. Remove all brake pad resistance by turning resistance knob counterclockwise (-).
3.
Release belt tension by loosening the belt tension adjustment nut using a 13 mm
wrench. Release as much tension as possible without removing the nut off the tension
bolt.
4.
Remove the rear belt pulley finger guard by removing the fasteners (2x) using a 5
mm hex key. Retain part(s) and/or fastener(s) for installation.
CAUTION: It is important to release belt tension prior to removing the frame cross
member.
5.
Remove the frame cross member by removing fasteners (4x) using 6 mm hex key.
Firmly grasp the cross member while removing. The belt tensioner is mounted onto the
cross member and may have a small amount of belt tension applied.
NOTE:Make sure to note how the belt is installed onto the tension mechanism pul-
leys for installation.
6.
Loosen, but do not remove, the left and right axle nuts using a 19 mm wrench.
NOTE:Make sure there is no brake pad resistance against the flywheel.
7.
Remove the left and right axle mounting plate fasteners (2x each) using a 6 mm hex
key. Retain part(s) and/or fastener(s) for installation.
8. Carefully slide the flywheel off the frame and remove the belt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 23
5 Replacement Procedures
Belt and Flywheel Replacement
