Crank Arm Replacement
About
This procedure provides instruction to remove and install the Crank Arm.
The process is similar to removing the pedals.
Specifications
System Component Specification
Crank arm fastener 33 ft-lb (45 N•m)

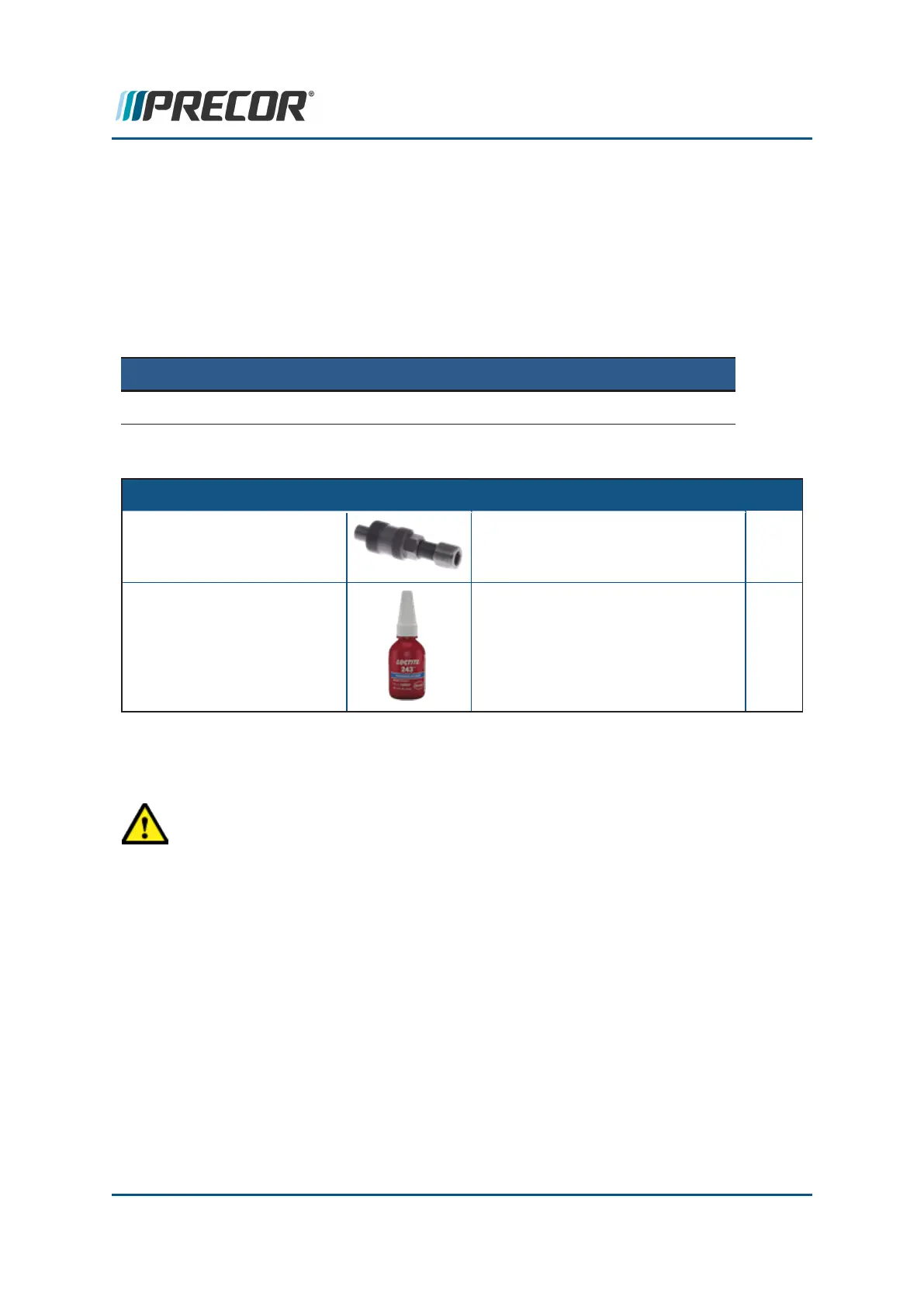

Specialized Tools
Tool Part Number Qty
Crank Extractor
(used to remove pedal)
X-Tools Crank Extractor)
(1)
or sim-
ilar
1
Medium strength thread-
locker
Loctite 243 1
Procedure
Review entire procedure before starting.
CAUTION:Be careful not to scratch or dent bike with tools during the removal/in-
stallation process.
Removal Instructions
1. Remove the left and right pedals, see "Pedal Replacement" on page37.
2. Remove the left crank arm mounting bolt using an 8 mm hex key.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 42
5 Replacement Procedures
Crank Arm Replacement
