4. Description of functions
Premier Tech 13 / 64 Solido SMART
DOKK5110E 15.04.2020
4. Description of functions
4.1 Component overview in round tank BL

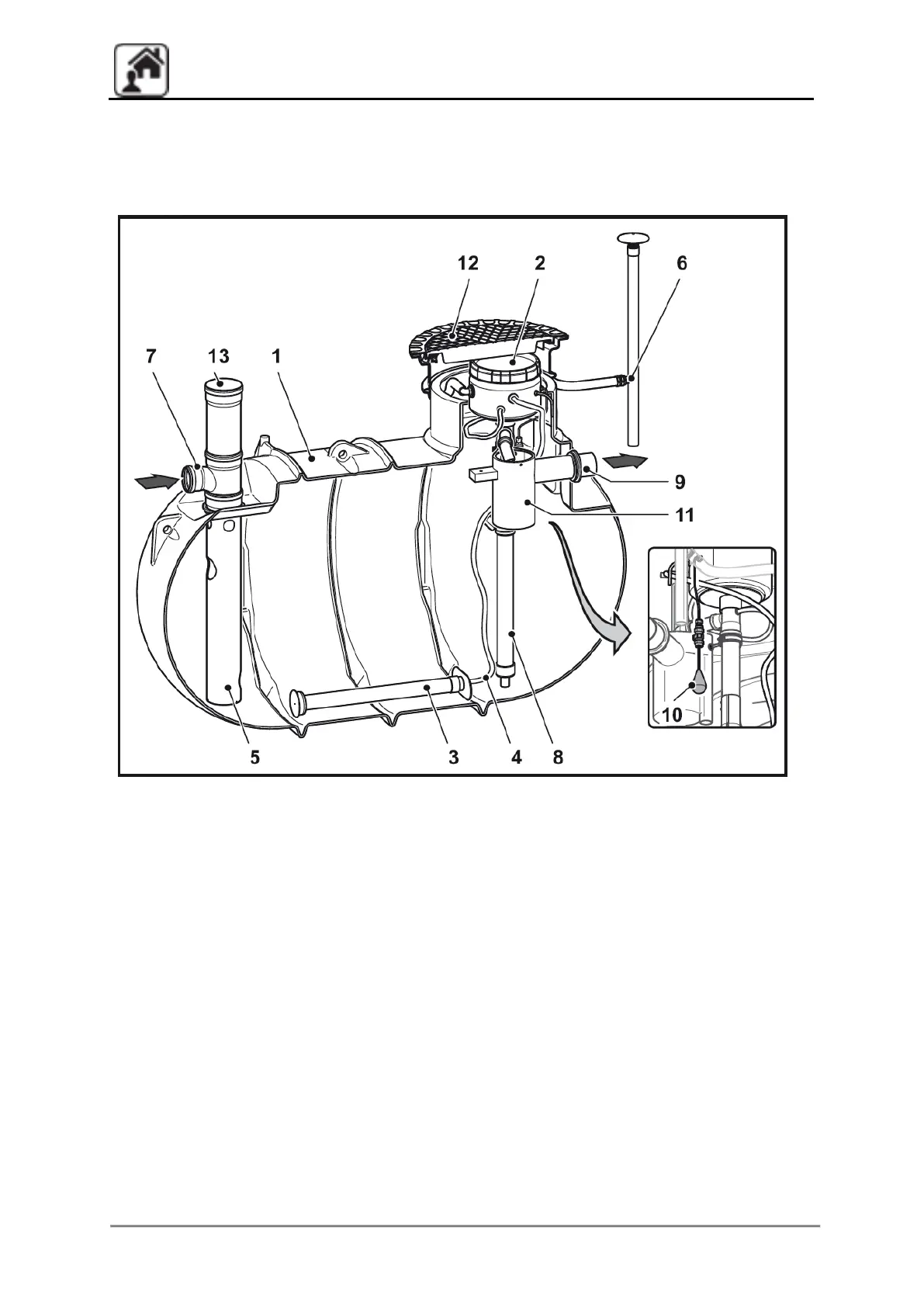

Component overview (example: EBL-26)
Legend for the component overview:
1 - BL26 container (example)
2 - Solido SMART technology capsule
with compressor and solenoid valves
3 - Tube diffuser (BEL)
4 - Air hose
5 - Lower part of the inlet and sludge pipe
6 - Supply air hose and support
7 - Calmed inlet DN110
8 - Clearwater lifter (KWH)
9 - Outlet
10 - Float switch (SWS)
11 - Sampling container with emergency
overflow that is safe from floating
material
12 - TopCover
13 - Shaft for removing sludge DN160
