7.3 Assembly steps for the Solido SMART treatment system

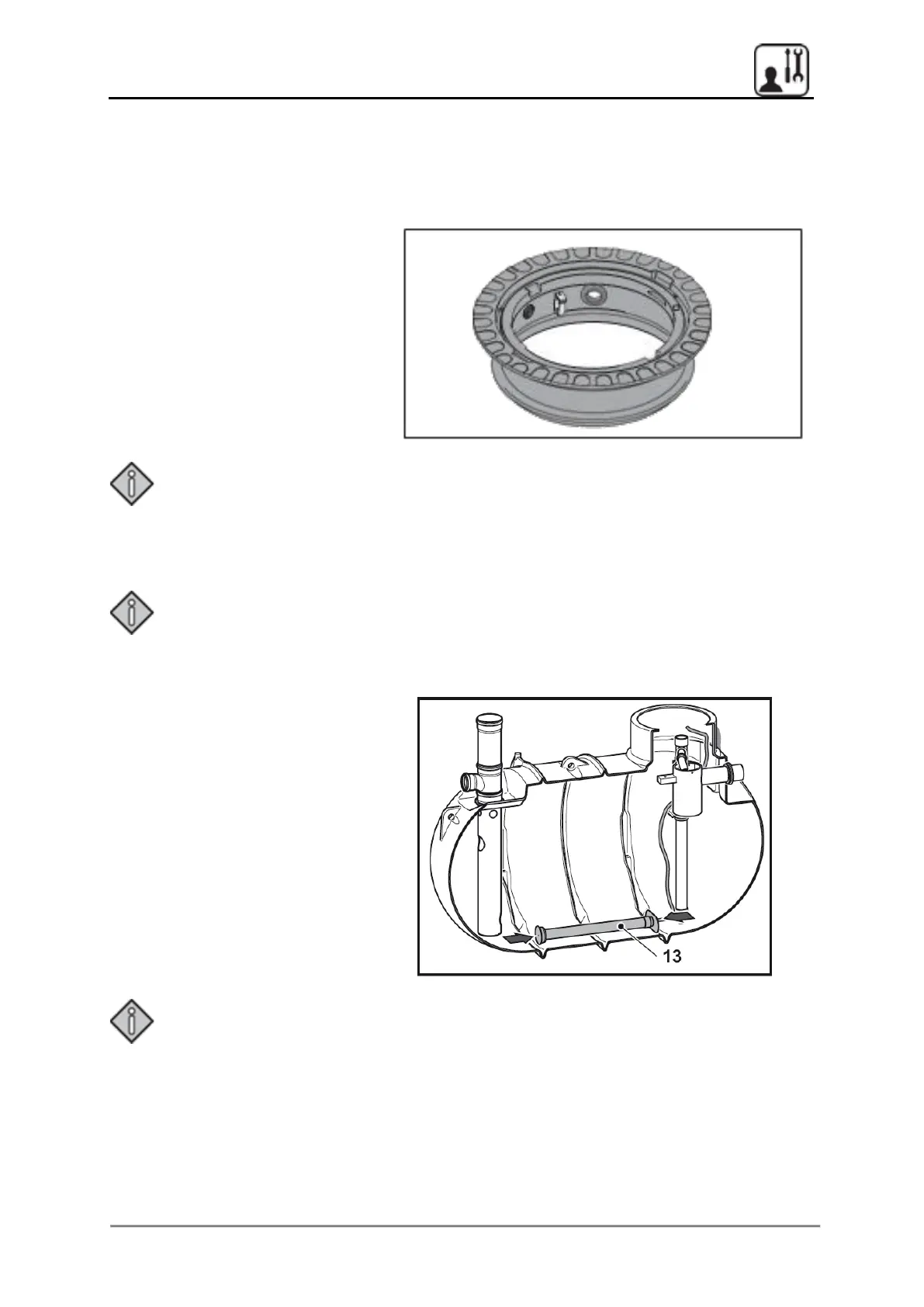

7.3.1 Installing the shaft assembly set
• Install the seals and
the cable holder for the shaft
assembly set as required.
• Perform the assembly for
the BL containers in the
shaped container dome
shaft
Note:
To install the seals, you require a hole saw with diameter of D = 60 mm
7.3.2 Filling up the lifter with water
• You must fill the lifter with water using a hose before you fill the container.
Note:
There is a risk of rapid uplift when the lifter is completely empty.
7.3.3 Assembling the tube diffuser
• Place the tube diffuser (13) on
the white hose onto
the container floor and
position it in the centre of the
container.
Notes:
For larger or two-chamber containers, two tube diffusers (incl. T-piece and two
stop cocks) are supplied. To reach an equal distribution of the air on the two
diffusers use the stop cocks.
On capsules with HP-120 compressors or larger, the white air hose is in DN16.
The nozzle on the tube diffuser must be replaced (included in the scope of
delivery).
