10. Appendix
Premier Tech 58 / 64 Solido SMART
DOKK5110E 15.04.2020

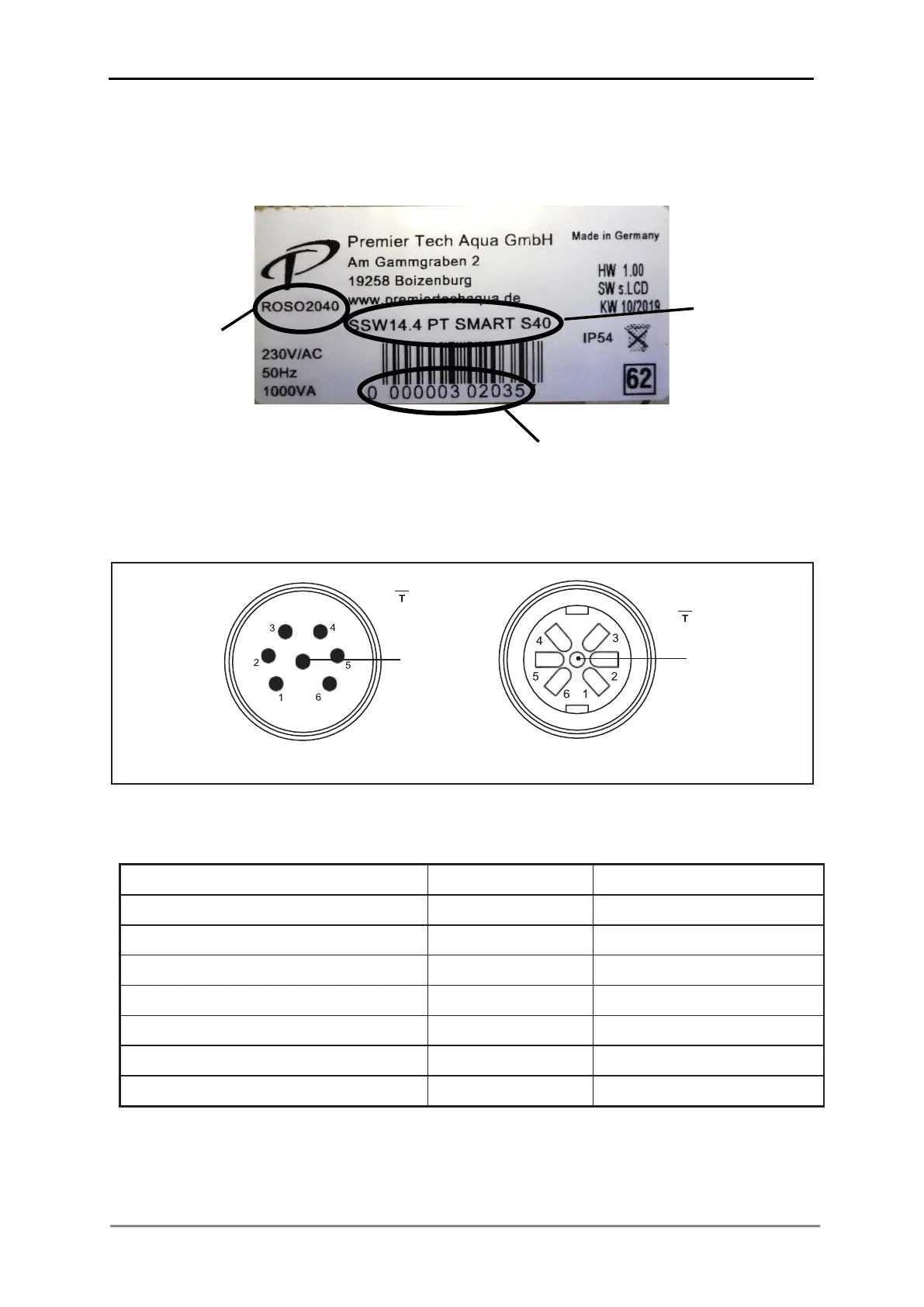

Type plate control unit
10.2 Wire configuration/terminal scheme for Solido SMART with S40 control
Basic S40 version
Aggregate
Function
Plug pin no.
All
PE
PE
All
N
1
Compressor
L
2
KWH valve (or KWP)
L
3
Free
L
4
Free
L
5
SWS
SWS ON
6
L: phase (german: Leiter)
PE
PE
Plug pins
Electrical socket
product code
serial number
type
